Parameter Function or specification
MV switch Dedicated MV/LV transformer to supply
the EVSE
Automatic circuit breaker Output 3 x 800 A, 690 Vac
Additional option: Residual current
breaker type B
Caution: A
residual
current
breaker
type B is
Mandatory
for an EVSE
with CHA-
deMO out-
put.
Output 3 x 800 A, gG Fuses, 690 Vac
Adjustable Idn 30 to 300 mA
10.20.2 External residual current device (Terra 180)
Id
A
B
C
D
E

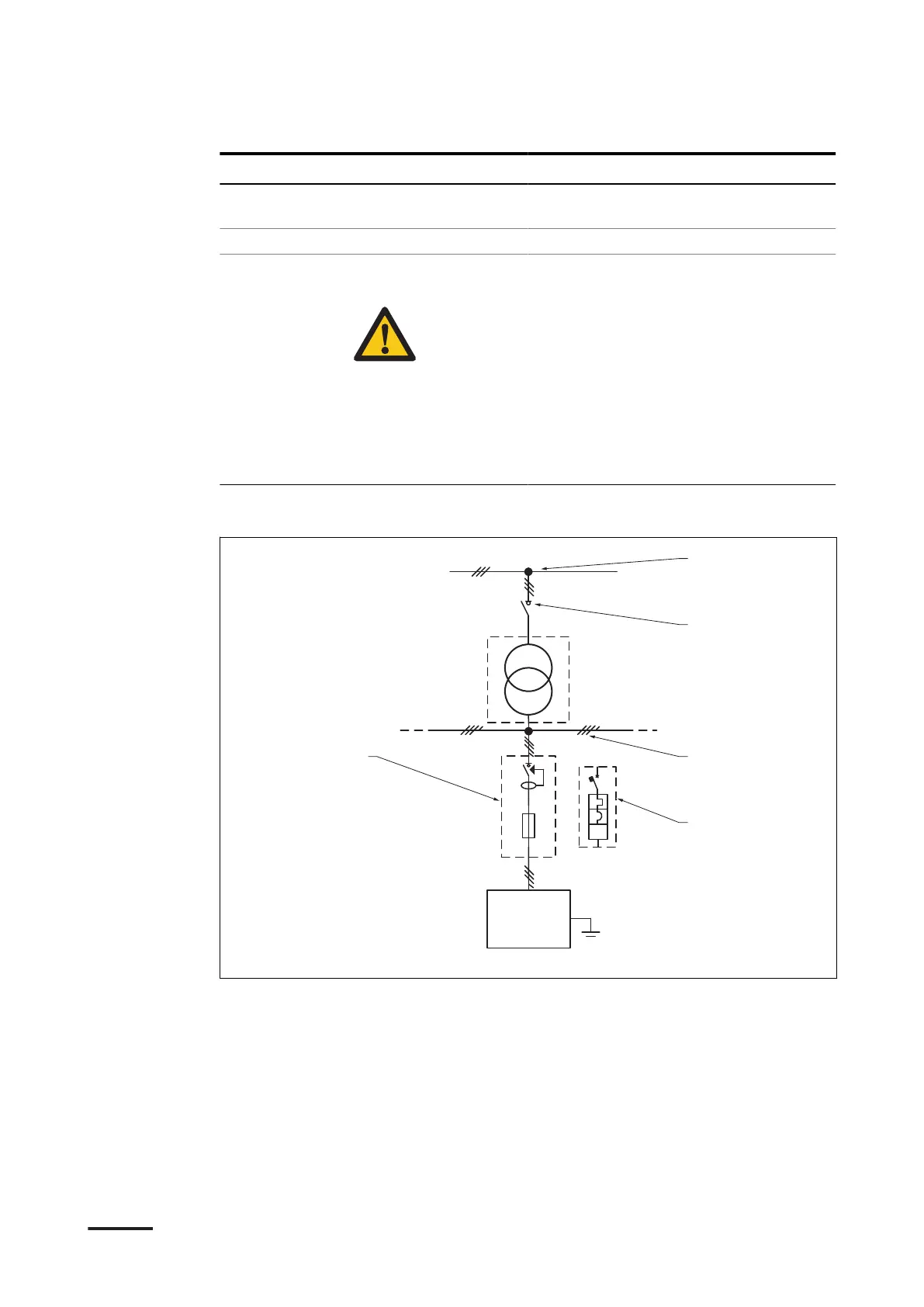

A 3 Phase MV
B MV switch
C 3 Phase + Neutral 400 Vac
D Automatic circuit breaker
E Residual Current Breaker Type B
Technical data
126 9AKK108467A6398-EN | 002
