Home
ABB
Battery Charger
Terra 360 CE
ABB Terra 360 CE User Manual
134 pages
Manual
Specs
Ask a question
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3.
7
.6
Integrat
ed payment t
erminal - Nay
a
x
3.
7
.
7
Integrat
ed payment t
erminal - CCV
3.
7
.8

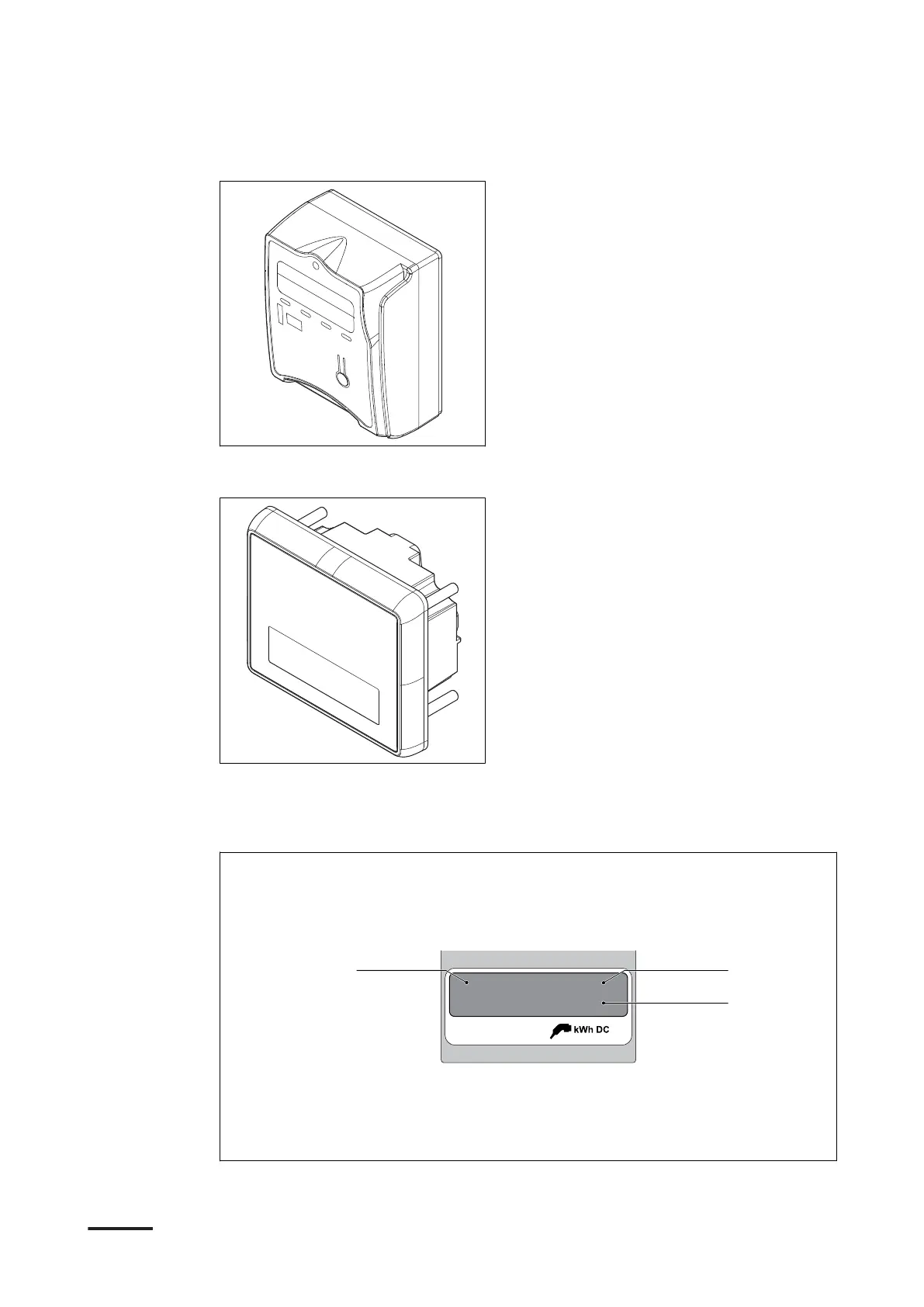

Fiscal metering system
The EVSE can opt
ionally be equipped w
ith an MID c
ompliant DC energy meter
. This
upgrade can be installed in the f
ac
tory or in the field.
A
B
C
A
Time (hh:mm:ss)
B
Dat
e (
Y
Y
-MM-DD)
C
Delivered DC pow
er (
kWh)
Description
44
9AKK10846
7A6398-EN | 002
43
45
Table of Contents
Table of Contents
3
About this Document
9
Function of this Document
9
Disclaimer
9
Target Group
9
Revision History
9
Language
9
Illustrations
9
Units of Measurement
10
Typographical Conventions
10
How to Use this Document
10
General Symbols and Signal Words Used in the Document
10
Manufacturer and Contact Data
11
Abbreviations
12
Terminology
12
Orientation Agreements
13
Safety
14
Liability
14
General Safety Instructions
14
Responsibilities for the Owner
15
Required Qualifications for the Installation Engineer
15
Personal Protective Equipment
16
Safety Instructions During Transport
16
Safety Instructions During Installation
16
Safety Instructions for Use
17
Safety Instructions During Cleaning or Maintenance
17
Safety Instructions for Earthing
17
Signs on the EVSE
18
Discard the EVSE or Parts of the EVSE
18
Cyber Security
19
Description
20
Type Plate
20
Intended Use
20
Working Principles
22
Block Diagram - Terra 360
22
Terra 360 - 2 Outlets, 25 Percent
24
Terra 360 - 2 Outlets, 50 Percent
25
Block Diagram - Terra 180
26
Block Diagram - Terra 60 CC and CJ/C
28
Overview
30
Overview of the System
30
Overview of the Terra 60, Outside
31
Overview of the Terra 60, Inside
32
Overview of the Terra 60, Air Inlet/Outlet and Filter Locations
33
Overview of the Terra 180, Outside
34
Overview of the EVSE, Inside
35
Overview of the Terra 180, Air Inlet/Outlet and Filter Locations
36
Overview of the Terra 360, Outside
37
Overview of the Terra 360, Inside
38
Overview of the Terra 360, Air Inlet/Outlet and Filter Locations
39
Overview of the Cable Management System
40
Overview of the Locations of the Lifting Points
40
Authorization to Charge
41
Payment Terminal
41
Options
42
EV Charge Cable, CCS 1
42
EV Charge Cable, CCS 2
42
Socket, Type 2
43
EV Charge Cable, Chademo
43
Integrated Payment Terminal
43
Integrated Payment Terminal - Nayax
44
Integrated Payment Terminal - CCV
44
Fiscal Metering System
44
Tilt Sensors
45
Cable Management System
46
Power Allocation Strategies
46
Sequential Power Allocation
46
Concurrent Allocation
47
Dynamic Allocation 'First in First Served
47
Dynamic Allocation 'Fair Share
48
External Residual-Current Device
48
Description of the Touchscreen
49
General Description of the Layout
49
General Description of the Buttons
50
Status of the EVSE Leds
51
Local Service Portal
51
Cloud Service Portal
52
Transport, Handling and Unpacking
53
Transport the EVSE to the Site
53
Hoist the Packaged Cabinet
53
Move the Packaged Cabinet with a Forklift Truck
54
Unpacking
55
Unpacking Procedure
55
Do a Check of the Transport Sensors
56
Installation
57
General Installation Procedure
57
Site Preparation
57
Prepare the Site
57
Control the Space and Airflow Around the Cabinet
58
Prepare the Foundation
58
Prepare the Foundation - General Procedure
58
Prepare a Standard Prefabricated Foundation
59
Prepare a Cast Foundation
59
Detach the Cabinet and Base
59
Detach the Cabinet (Terra 360)
59
Detach the Cabinet (Terra 180 and 60)
60
Detach the Base
61
Prepare the Cables
62
Cable Installation Procedure
62
Open the Cable Glands (Terra 360)
62
Open the Cable Glands (Terra 60 and 180)
63
Guide the Cables through the Opening in the Cable Guide Plate
63
Install the Base on the Foundation
64
Cut the Cables to the Correct Length
64
Mechanical Installation
65
Mechanical Installation Procedure
65
Install the Cabinet on the Base
65
Connect the Cabinet to the Base
66
Electrical Installation
66
Electrical Installation Procedure
66
Connect the Wires of the AC Input Cable (Terra 360)
67
Connect the Wires of the AC Input Cable (Terra 180)
68
Connect the Wires of the AC Input Cable (Terra 60)
69
Connect the PE Wire (Terra 360)
71
Connect the PE Wire (Terra 180 and 60)
72
Connect the Ethernet Cable (Terra 360)
73
Connect the Ethernet Cable (Terra 180)
73
Connect the Ethernet Cable (Terra 180)
74
Tilt Sensors Installation (Option)
75
General Procedure
75
Install the Bracket of the Tilt Sensors
76
Install the Tilt Sensors
76
Connect the Tilt Sensors
77
Prepare for Commissioning
77
Operation
79
Prepare before Use
79
Charge Session
79
Charge an EV
79
Start a Charge Session
79
Stop a Charge Session
80
Energize the EVSE
80
Remove Condensation from the Cabinet
81
Local Service Portal Operations
81
Start the Local Service Portal
81
Set the Configuration Parameters
82
Set the OCPP Parameters
82
Install New Software
82
Close the Local Service Portal
83
Maintenance and Cleaning
84
Maintenance Schedule for the Owner
84
Clean the Cabinet
84
Do a Check on the Cabinet
85
Replace an Air Filter
85
Energize the EVSE
87
De-Energize the EVSE - General Procedure
87
Measure the AC Voltage (Terra 360)
87
Measure the AC Voltage (Terra 180)
88
Measure the AC Voltage (Terra 60)
88
Measure the DC Voltage
89
Access to Parts
90
Open the Doors
90
Close the Doors
90
Install the Border Covers
91
Remove the Border Covers
91
Troubleshooting
93
Troubleshooting Procedure
93
Troubleshooting Table
93
Technical Data
94
EVSE Type
94
General Specifications
97
Parts Included in the Delivery
97
Transport Specifications
97
Required Tools for Installation
97
Required Parts for Installation
98
Torque Specifications
98
Ambient Conditions
99
Tilt Sensor Specifications
99
General Specifications
99
Wire Specifications
99
Wiring Diagram for the Tilt Sensors
100
Cable Management System Specifications
101
Dimensions
101
General Dimensions (Terra 360)
101
General Dimensions (Terra 180 and 60)
102
Packaged Product
102
Mass of the EVSE (Without Packaging Material)
103
Floor Space Requirements (Terra 360, Pre-Series)
103
Floor Space Requirements (Terra 360, Serial Production)
104
Floor Space Requirements (Terra 180 and 60)
105
Prefabricated Foundation (Terra 360)
106
Cast Foundation (Terra 360)
107
Cast Foundation (Terra 180 and 60)
108
Cable Slack
108
Height of User Operable Elements
109
Communication Interface Specifications
110
EVSE Power Rating
110
EVSE Rating During Normal Duty Operation
110
EVSE Derating During Normal Duty Operation
110
EVSE Rating in Heavy Duty Operation
111
EVSE Derating During Heavy Duty Operation
112
Harmonics
112
Harmonics Terra 360, Equal Share
112
Terra 180, Equal Share
114
Harmonics Terra 60
116
AC Input Specifications
117
General AC Input Specifications
117
AC Input Cable
118
Terra 360
118
Terra 180
118
Terra 60
119
DC Output Specifications
119
General Specifications
119
Terra 360
121
Terra 180
122
Terra 60
124
AC Output Specifications (Option for 180 and 60)
124
Power Consumption
124
General Specifications
124
Terra 360
124
Terra 180
124
Cooling System Specifications
124
External Residual Current Device Specifications
125
External Residual Current Device (Terra 360)
125
External Residual Current Device (Terra 180)
126
External Residual Current Device (Terra 60)
127
In-Rush Current
128
Cleaning Specifications
128
Appendix
129
Declaration of Conformity
129
Hinweise zur Messgenauigkeit Entsprechend der Baumusterprüfbescheinigung
131
