ABB Terra 360 CE User Manual

Part Function
Fuse, CT and Surge Protection for DC
Outlet 1 & 2
To provide current readings and surge
protection
DC outlet 1 and 2 To provide DC output power
Cooling fan To control the internal temperature
AC relay To connect or disconnect a power mod-
ules group (from 1 to 4)

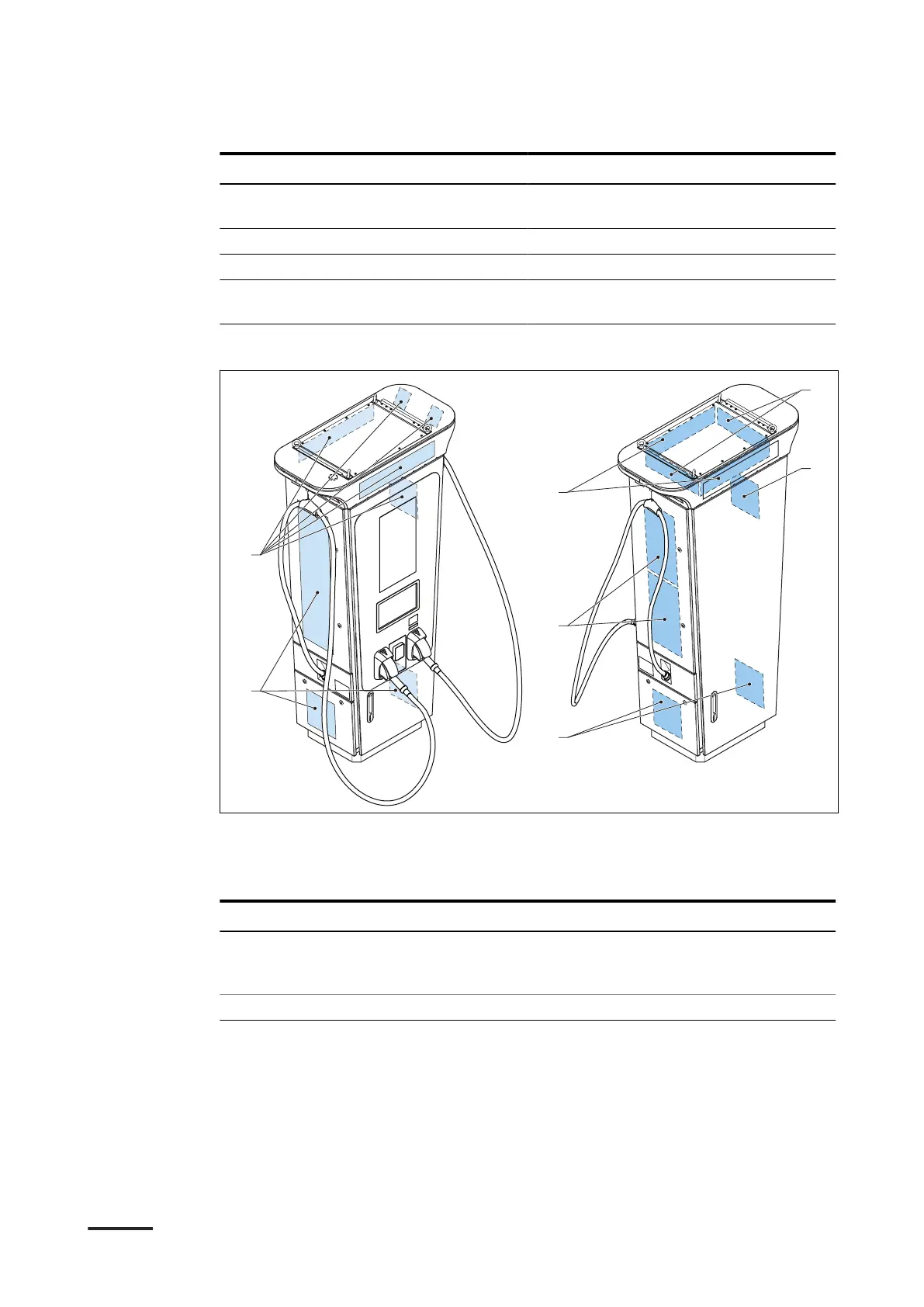

3.4.7 Overview of the Terra 180, air inlet/outlet and filter locations
A
B
C
D
E
F
G
A Air inlet
B Air outlet
C Air inlet filter
D Air inlet filter
E Air outlet filter
F Air outlet filter
G Air outlet filter
Part Function
Air inlet and outlet To let cooling air in and out. The airflow makes sure
that the parts on the inside of the EVSE do not become
too hot
Air inlet and outlet filter To filter the air that comes in and out the EVSE
Description
36 9AKK108467A6398-EN | 002
