ABB Terra 360 CE - Open the Cable Glands (Terra 60 and 180); Guide the Cables through the Opening in the Cable Guide Plate

Procedure

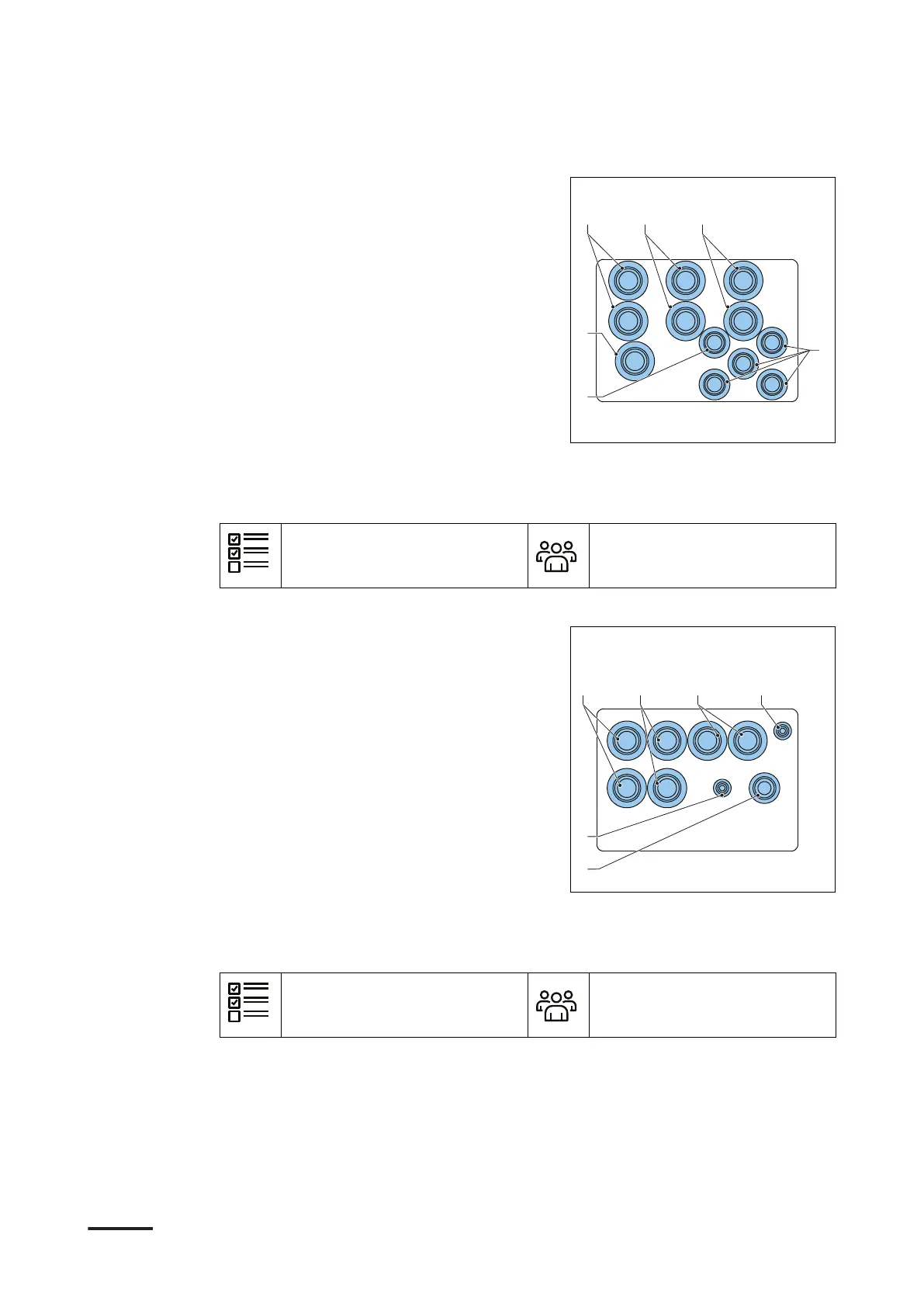

1. Open the necessary cable glands for
these cables:
• AC input cables L1, L2 and L3 (A).
(27–35 mm / 1.06–1.38 in)
• Ethernet / signals cables (B).
(19–28 mm / 0.75–1.10 in)
• Protective Earth (PE) cables (C).
(27–35 mm / 1.06–1.38 in)
• Protective Earth (PE) cables (D)
(19–28 mm / 0.75–1.10 in)
5.5.3 Open the cable glands (Terra 60 and 180)
Preliminary requirements
• The base is removed from
the pallet.
• Installation engineer
Procedure
1. Open the necessary cable glands for
these cables:
• AC input cables L1, L2, L3 and
neutral (A).
(27–35 mm / 1.06–1.38 in)
• Ethernet / signals cables (B).
(8–13 mm / 0.31–0.51 in)
• Protective Earth (PE) cables (C)
(19–28 mm / 0.75–1.10 in)
5.5.4 Guide the cables through the opening in the cable guide plate
Preliminary requirements
• The cable glands are open
• Installation engineer
A
C
B
D
A A
A
B
C
A A B
