Procedure
1.

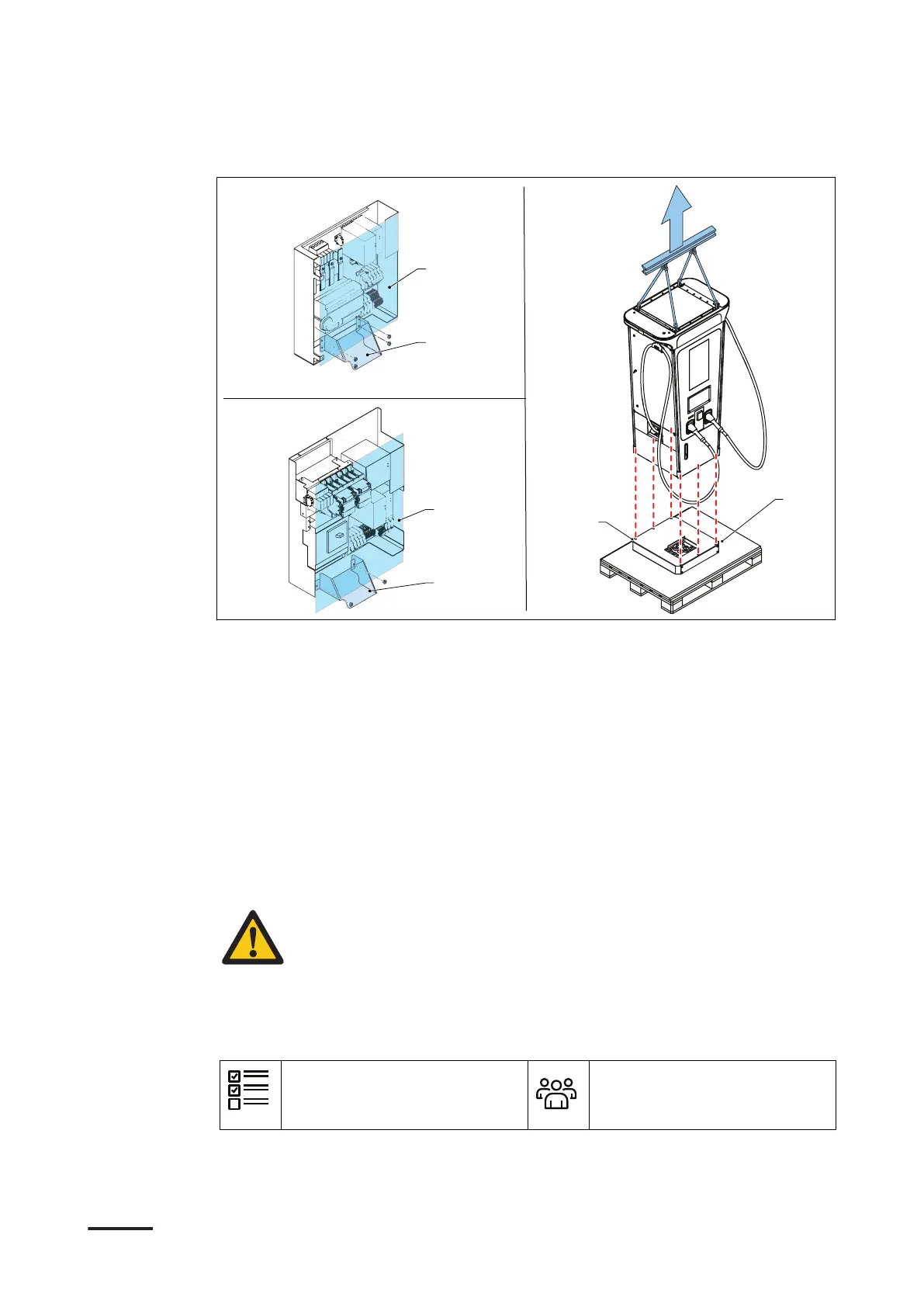

Open the front door and the rear door of the EVSE. Refer to section 8.1.
2. Remove these parts:
• The lexan protection on the AC section (A).
• The lexan protection under the main AC switch (B).
3. Attach the ropes or chains of the hoisting equipment to the eyebolts installed on
the top side of EVSE.
4. Lift the hoisting equipment but not fully. Make sure that there is no tension in
the ropes or chains that are attached to the EVSE.
5. Remove the 3 bolts (D) that are at the inner side of the lower front part of the
cabinet.
6. Remove the 3 bolts (E) that are at the inner side of the lower rear part of the
cabinet.
7. Lift the cabinet and place it on a flat surface suitable to support its weight.
Caution: Do not open the doors of the EV
SE in this condition.
5.4.3 Detach the base
Preliminary requirements
• The cabinet is removed
f
om the pallet. Refer to
sections 5.4.1 or 5.4.2.
• Installation engineer
Installation
9AKK108467A6398-EN | 002 61
