ABB Terra 360 CE - Connect the Wires of the AC Input Cable (Terra 60)

• Wire stripper pliers
• Wire cutter
• Crimp plier tool
• Torque socket wrench
Procedure

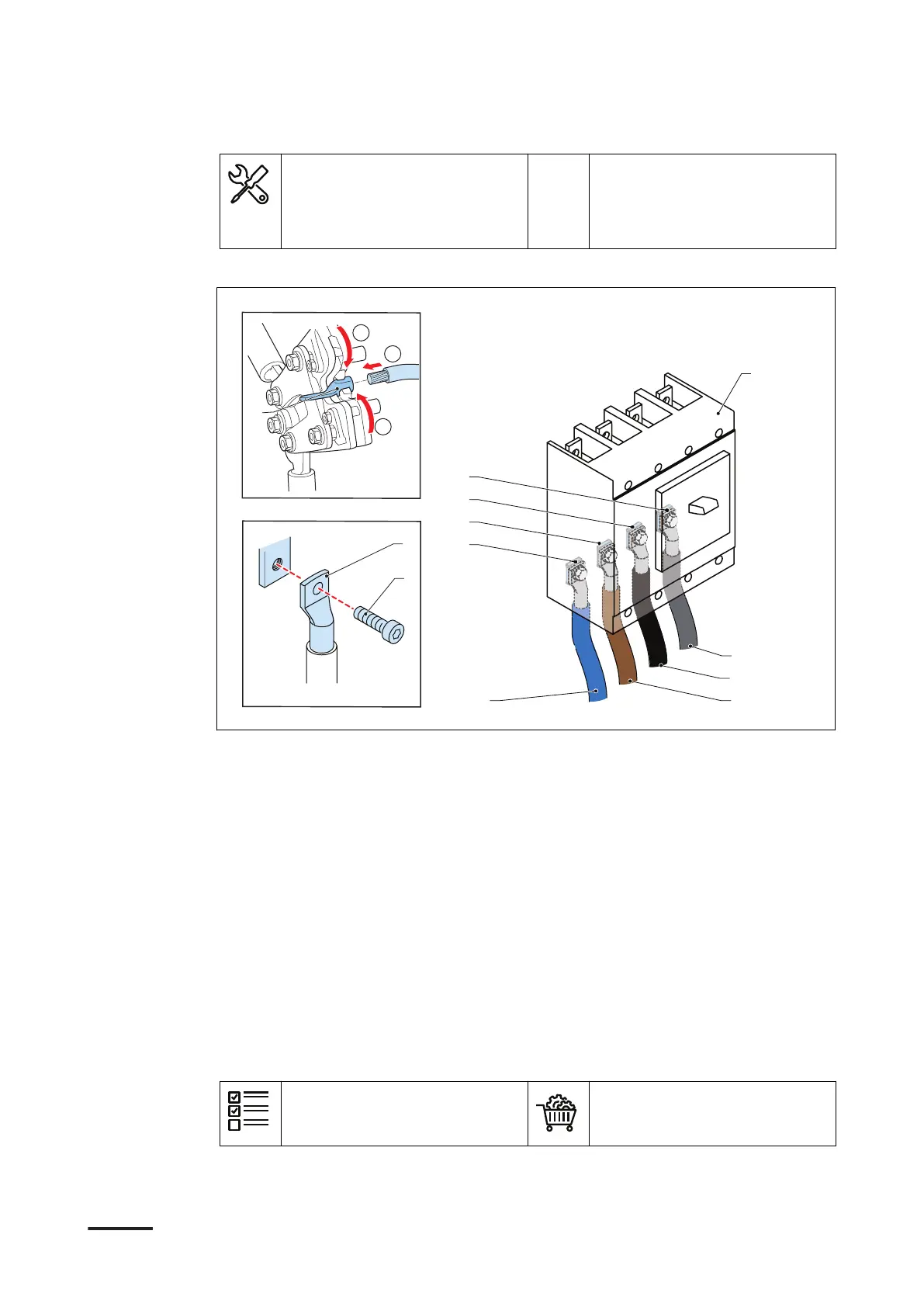

1. Prepare the wires.
a. Cut the wires (A) to (D) to the length that is sufficient for connection to the
connectors on the manual switch (E).
b. Attach the cable lugs (F) to the end of the wires. Use the crimp plier tool.
2. Attach the wires to the connectors.
• Brown L1 wire (A) to the connector (G)
• Black L2 wire (B) to the connector (H)
• Gray L3 wire (C) to the connector (I)
• Blue neutral wire (D) to the connector (J)
Use the fasteners (K).
3. Tighten the fasteners to the correct torque. For the specification, refer to
section 10.7.
5.7.4 Connect the wires of the AC input cable (Terra 60)
Preliminary requirements
• The front door is open.
• Cable lugs M11
• Fasteners M11
1
2
2
F
F
K
J
I
H
G
A
B
C
D
E
Installation
9AKK108467A6398-EN | 002 69
