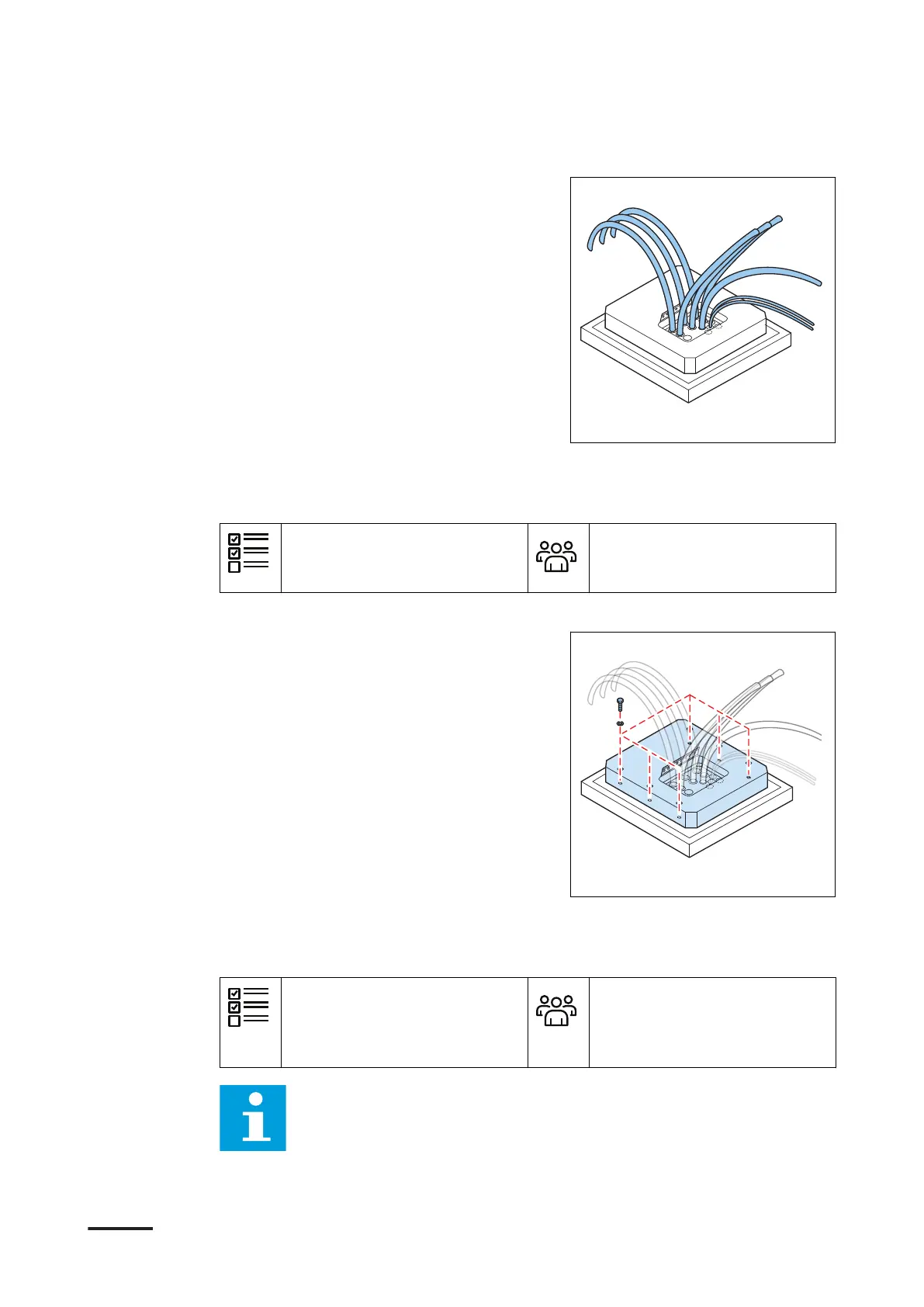

Procedure
1. Put the cables L1, L2, L3 and PE
through the cable guide plate. If there
is a Neutral cable, then also put it
through the cable guide plate. Apply
the full cable slack (350mm / 20 in).
2. If there is an ethernet cable, then put
it through the cable guide plate. Apply
the full cable slack (500mm / 20 in).
5.5.5 Install the base on the foundation
Preliminary requirements
• The foundation is in
position. Refer to section
5.3.
• Installation engineer
Procedure
1. Put the base (A) on the foundation and
use it as a drilling template.
2. Drill the 6 holes (B) in the foundation.
3. Use the bolts (C) to install the base on
the foundation.
4. Install the cable glands for each cable.
5.5.6 Cut the cables to the correct length
Preliminary requirements
• The base is installed.
• The cables are put fully
through the cable glands
in the base.
• Installation engineer
Note:
• The cables of the Terra 60 and Terra 180 models can be prepared
after the cabinet is installed on the base.
• The length of the cable lug can change, depending on the model of
the EVSE. Think about the length of the cable lug when you calculate
where to cut the cables.
Installation
64 9AKK108467A6398-EN | 002
