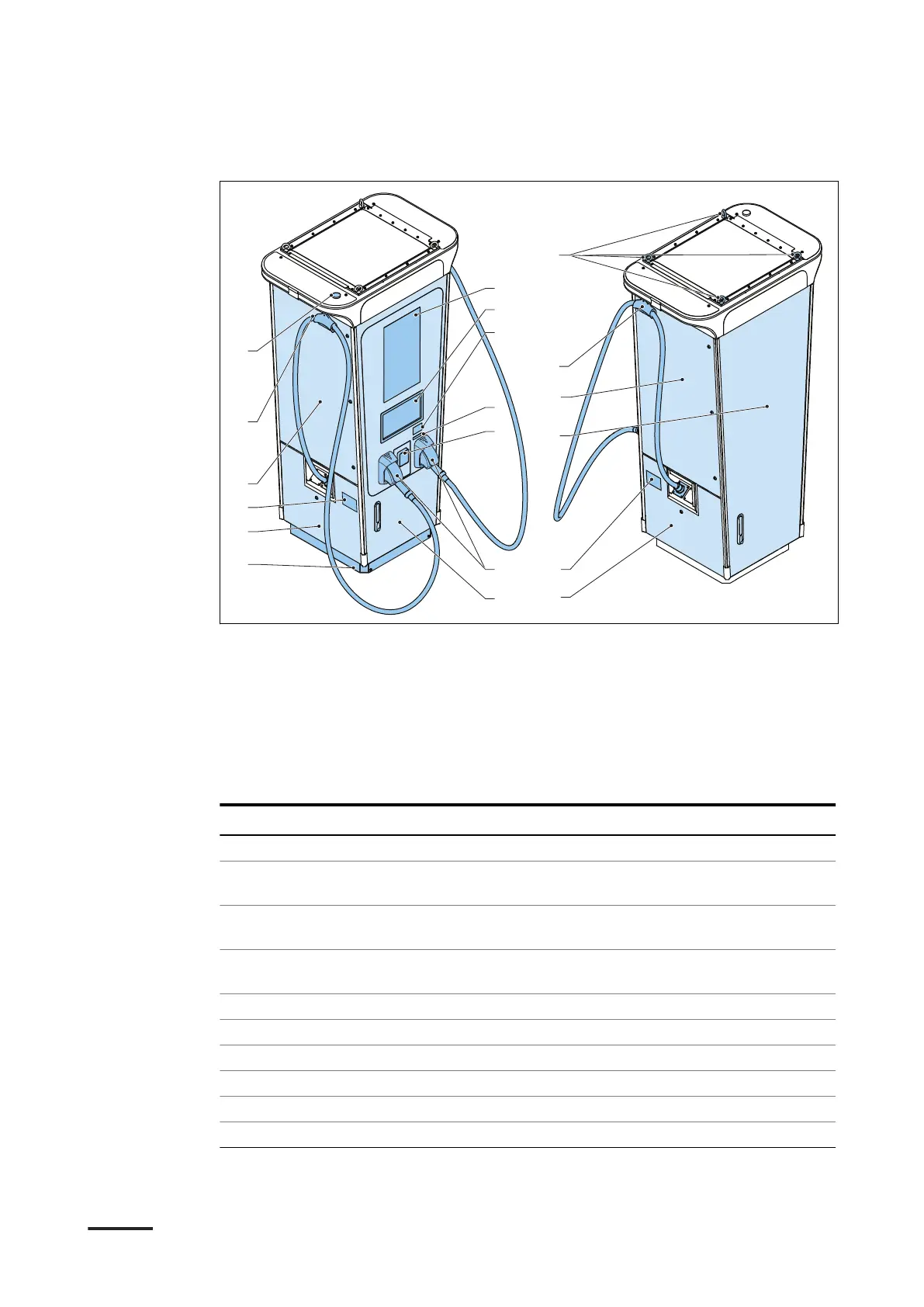

3.4.8 Overview of the Terra 360, outside
A Removable base
B Bottom left door
C Type plate
D Top left door
E Cable management system (CMS)
F Antenna
G Advertisement screen
H Touchscreen
I RFID reader
J Meter display
K Payment terminal
L EV charge cable with fuel label
EN17186 marking
M Front door
N Bottom right door
O Rear door
P Top right door
Q Lifting points (Golfari)
Part Function
Removable base To cover the lower part of the EVSE
Front, left and right door To give authorized personnel access to the inside of
the EVSE
Type plate To show the identification data of the EVSE. Refer to
section 3.1.
Cable management sys-
tem (CMS)
To help to handle the cable when the user connects it
to the EV and disconnects it from the EV.
Antenna To send and receive wireless 2G, 3G and 4G signals
Advertisement srceen Customizable advertising display.
Touchscreen To control and monitor the charge session
RFID reader To read the information from an RFID card
Payment terminal To pay for the charge session
Lifting points To move the EVSE with hoisting equipment.
Description
9AKK108467A6398-EN | 002 37
