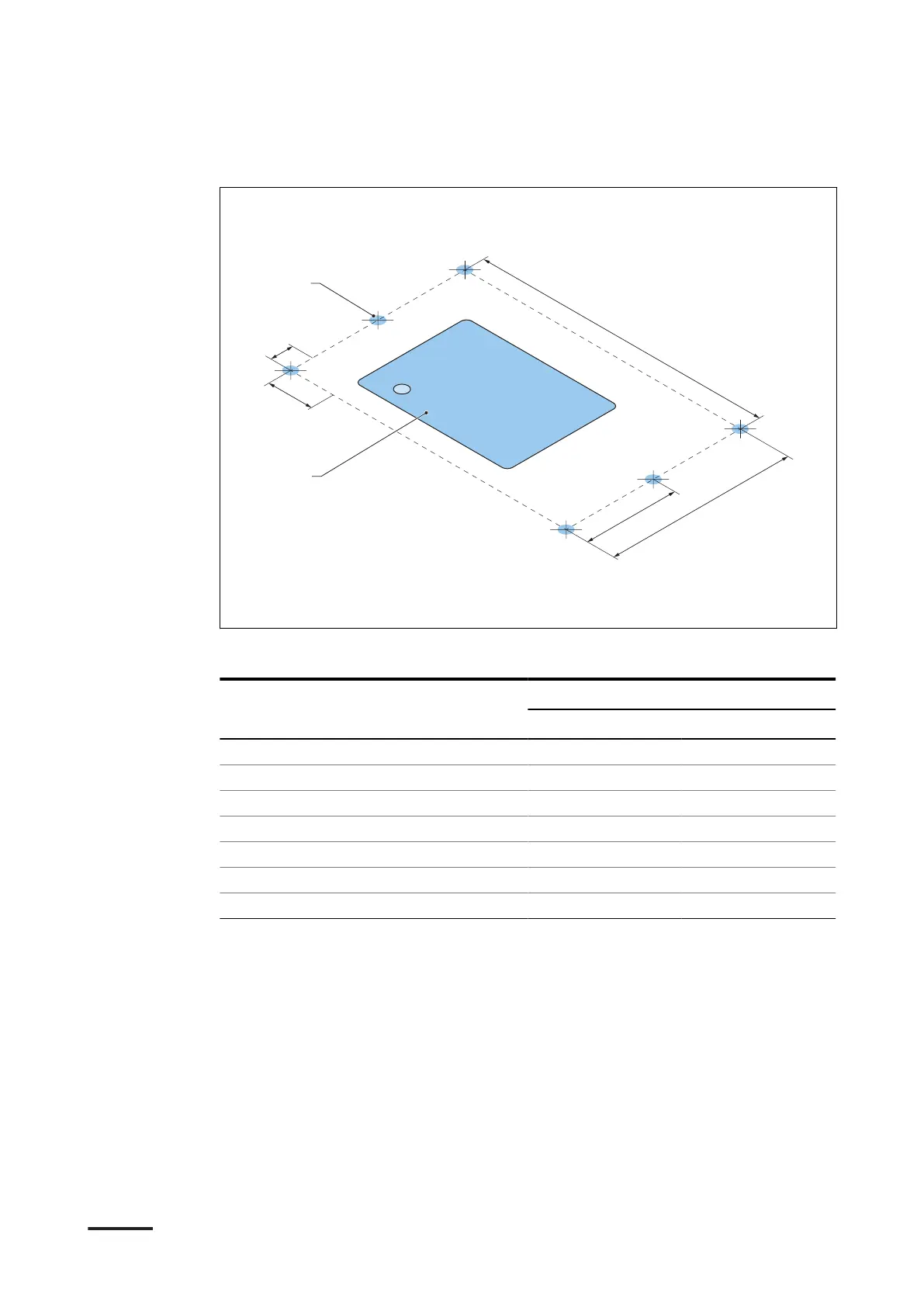

10.11.9 Cast foundation (Terra 360)
X1
Y2
A
B
X2
Y3
Y1
A Holes to install the fasteners of the
EVSE
B Cable arrival area
Parameter Specification [mm]
[mm] [in]
A M12, depth 70 M12, depth 3
B 245 x 330 9.6 x 13
X1 506 19.9
X2 40 1.6
Y1 430 16.9
Y2 41.8 1.7
Y3 215 8.5
Technical data
9AKK108467A6398-EN | 002 107
