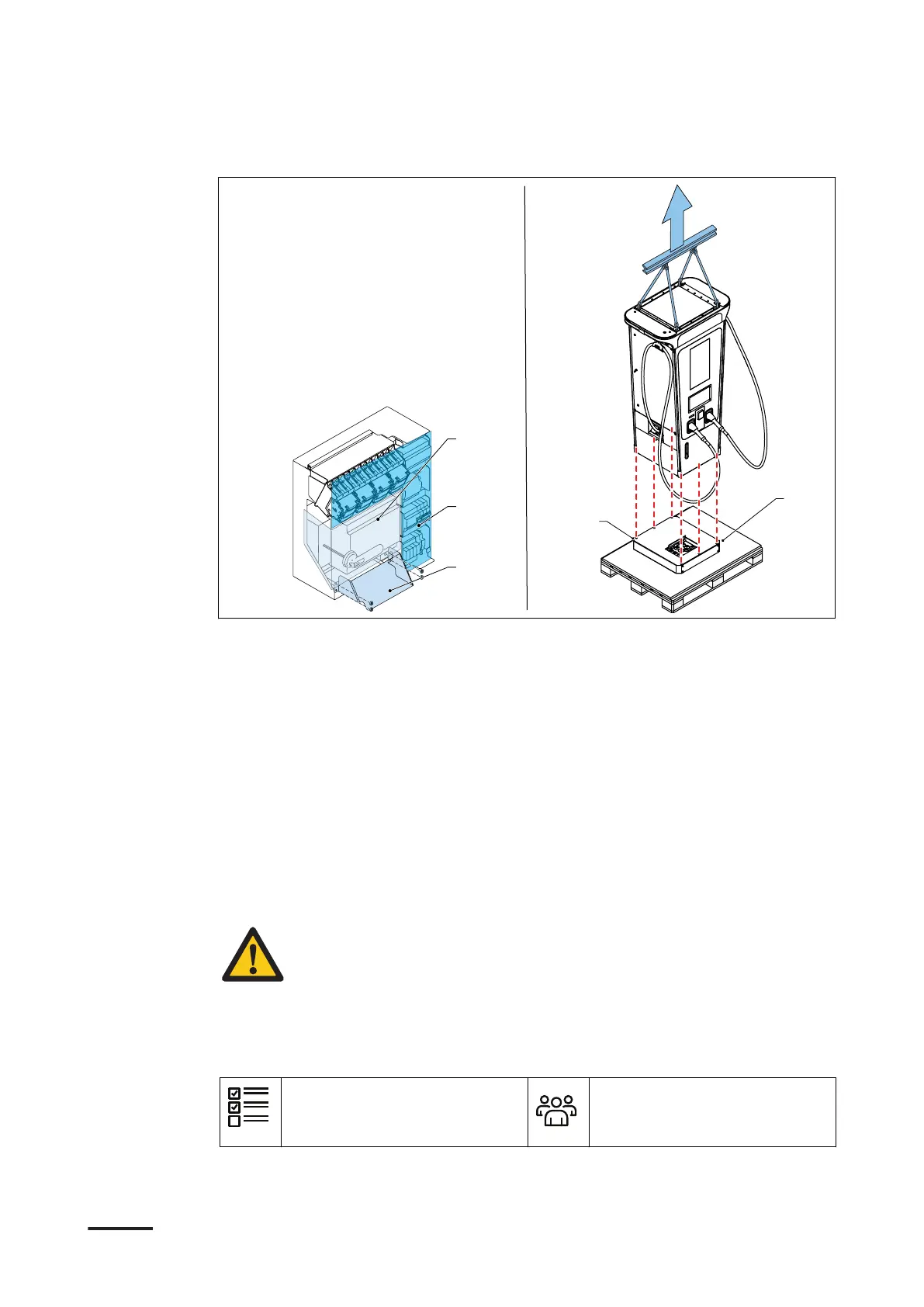

Procedure
1. Open the front door and the rear door of the EVSE. Refer to section 8.1.
2. Remove these parts:
• The lexan insulators (A) and (B)
• The metal protection (C). To remove the metal protection, it is necessary to
open the lower door on the left side also.
3. Attach the ropes or chains of the hoisting equipment to the eyebolts installed on
the top side of EVSE.
4. Lift the hoisting equipment but not fully. Make sure that there is no tension in
the ropes or chains that are attached to the EVSE.
5. Remove the 3 bolts (D) that are at the inner side of the lower front part of the
cabinet.
6. Remove the 3 bolts (E) that are at the inner side of the lower rear part of the
cabinet.
7. Lift the cabinet and place it on a flat surface suitable to support its weight.
Caution: Do not open the doors of the EVSE in this condition.
5.4.2 Detach the cabinet (Terra 180 and 60)
Preliminary requirements
• The foundation is in
position. Refer to section
5.3.
• Installation engineer
Installation
60 9AKK108467A6398-EN | 002
