Chapter 8 Configure Camming

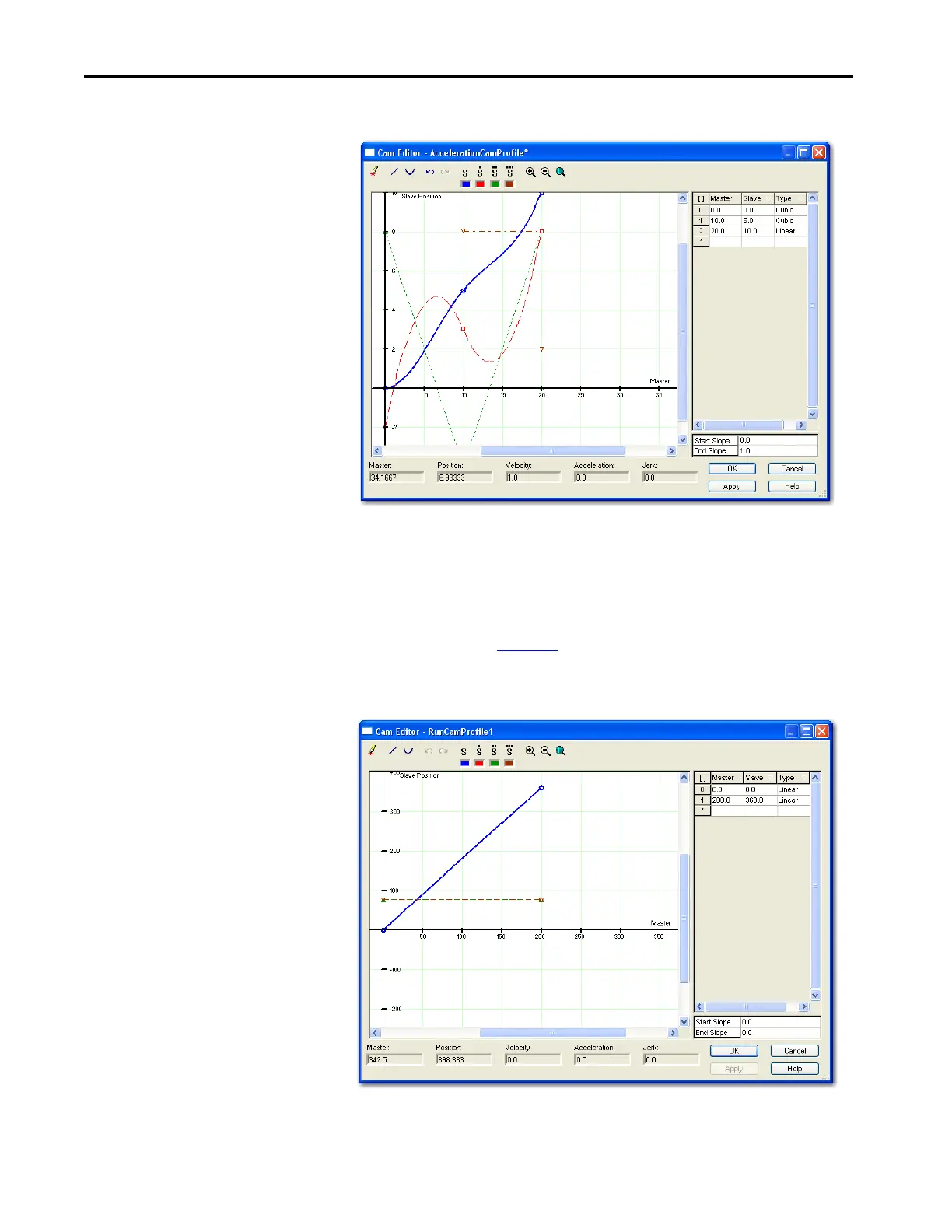

Figure 51 - Acceleration Cam Profile
Run Cam Profile
A run cam profile determines the movement of a slave axis. This process begins
when the master axis reaches a specific position and remains steady until the
end of the cam profile. Figure 52
illustrates a sample run cam profile in the
Logix Designer programming software cam editor.
Figure 52 - Run Cam Profile
