Rockwell Automation Publication MOTION-UM002E-EN-P - June 2016 73
Configure an Articulated Independent Robot Chapter 4

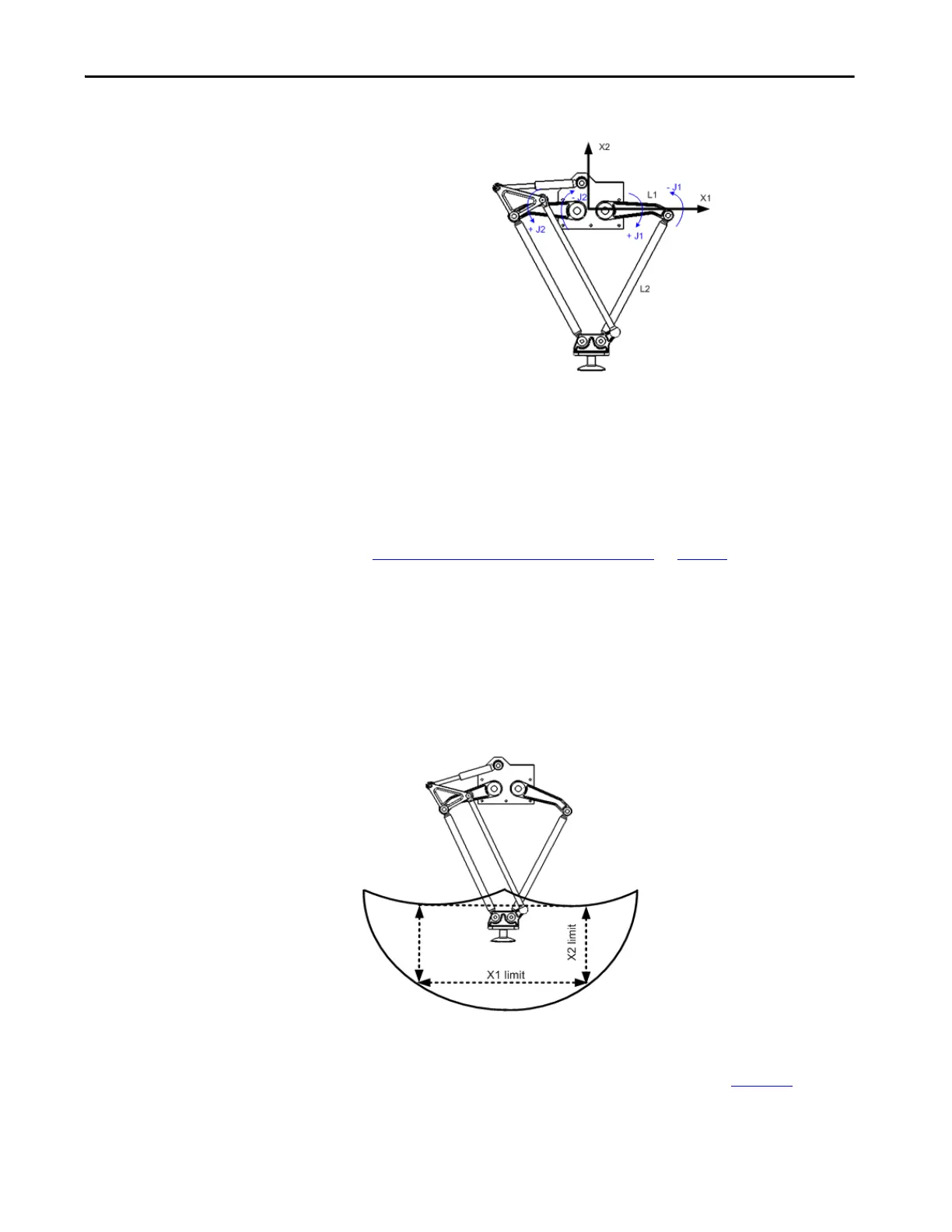

Figure 26 - Establishing the Two-dimensional Delta Robot Reference Frame
Calibrate a Delta Two-dimensional Robot
The method used to calibrate a Delta two-dimensional robot is the same as the
method used for calibrating a Delta three-dimensional robot. The only
difference is the number of axes used. For more information about calibration,
see Calibrate a Delta Three-dimensional Robot
on page 64.
Identify the Work Envelope for a Delta Two-dimensional Robot
The work envelope is the two-dimensional region of space that defines the
reaching boundaries for the robot arm. The typical working envelope for a
two-dimensional Delta robot is a boundary composed of circular arcs.
Figure 27 - Work Envelope for Two-dimensional Delta Robot
We recommend that you define the program parameters for the two-
dimensional Delta robot within a rectangle (dotted lines in Figure 27
) inside
the work zone of the robot. The rectangle can be defined by the positive and
negative dimensions of the X1, X2 virtual source axes. Be sure that the robot
To Next Page
