Configure Camming Chapter 8
Deceleration Cam Profile
A deceleration cam profile determines the deceleration of a slave axis from a

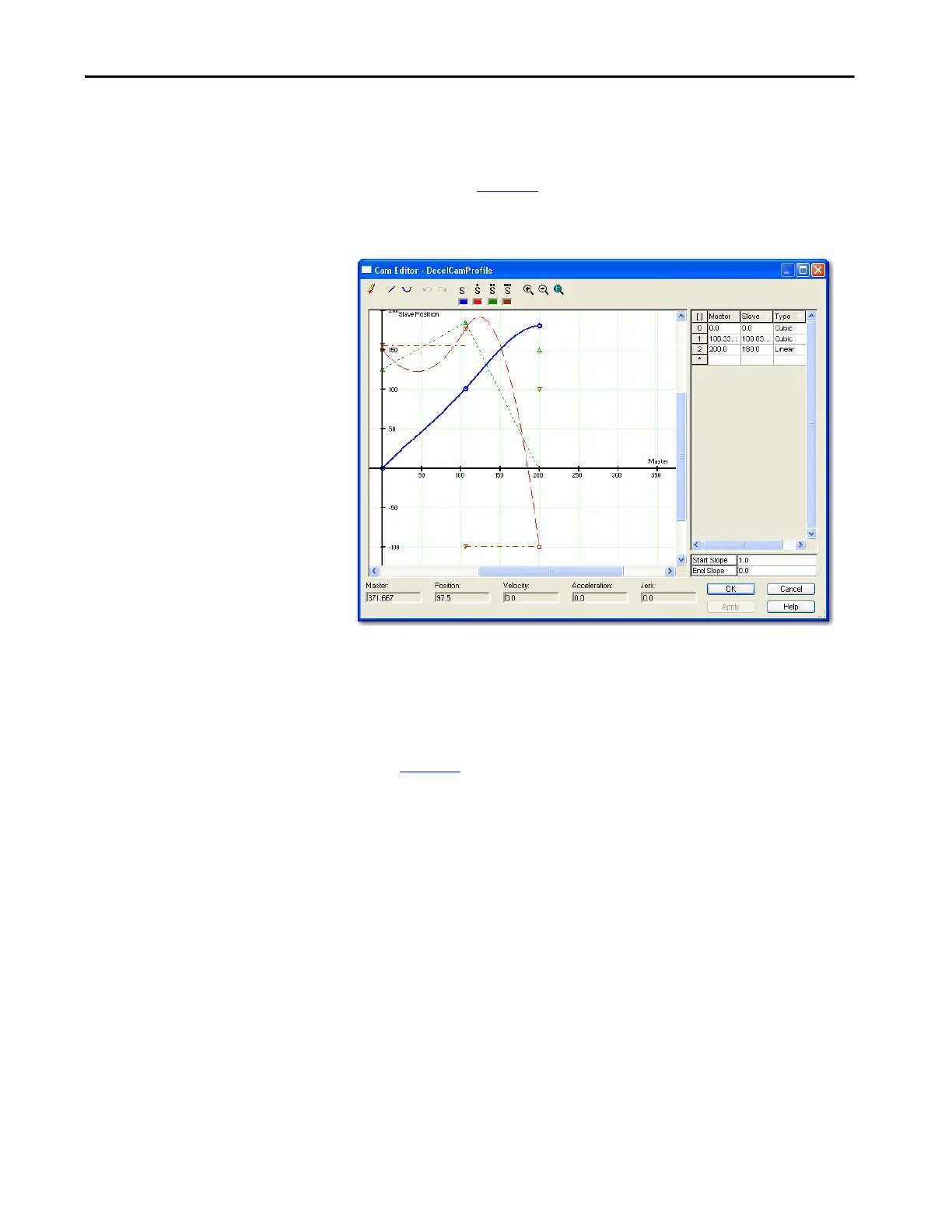

particular position. Figure 53
illustrates a sample deceleration cam profile in
the Logix Designer programming software cam editor.
Figure 53 - Deceleration Cam Profile
Dwell Cam Profile
A dwell cam profile stops all slave axis movement until another cam profile
begins operation. Typically, a dwell cam profile follows a deceleration cam
profile. Figure 54
illustrates a sample dwell cam profile in the Logix Designer
programming software cam editor.
