APRILIA SHIVER 900 User Manual

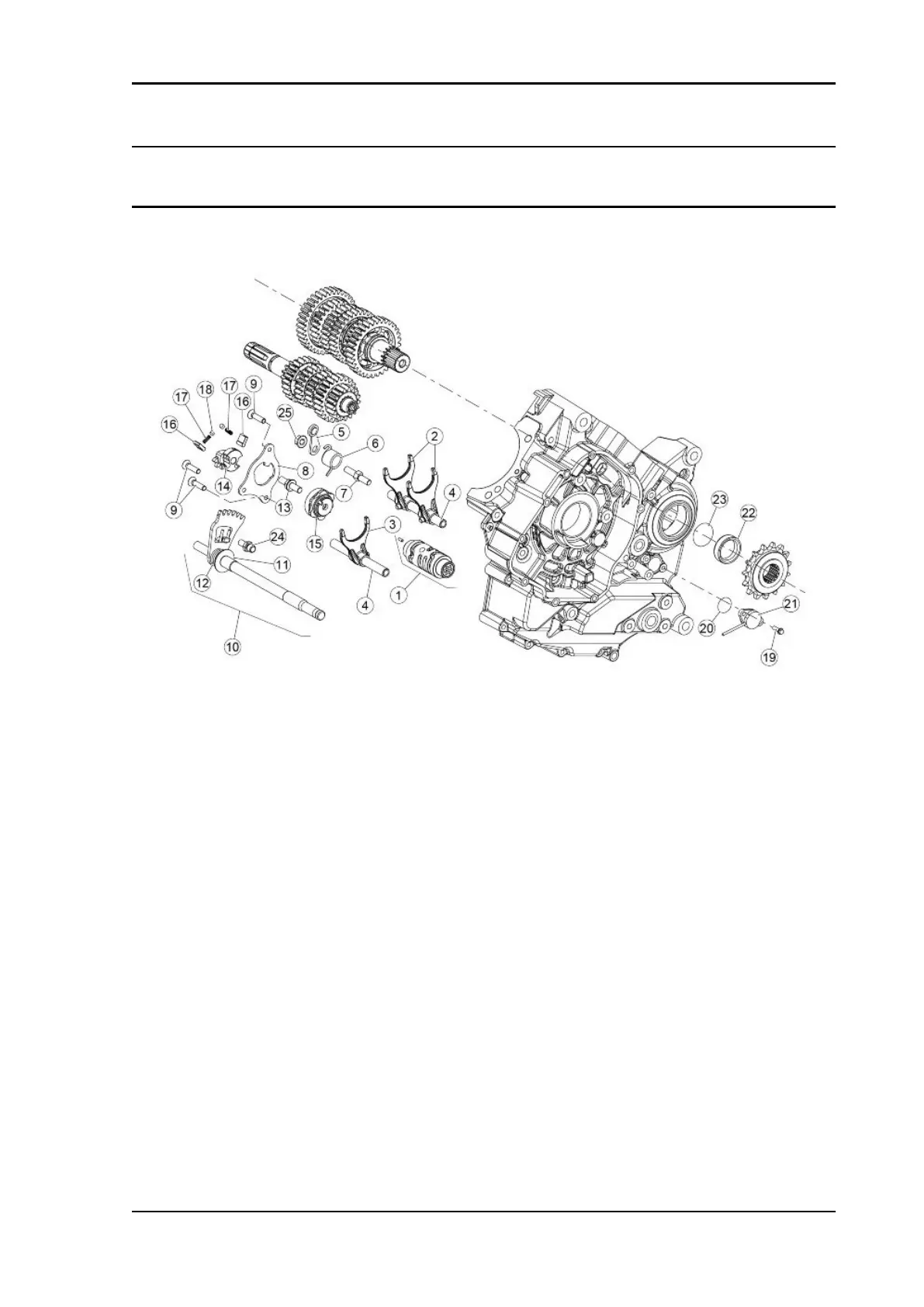

Gearbox
Diagram
Key
1. Complete desmodromic
2. Fork
3. Primary fork
4. Fork shaft
5. complete index lever
6. Gear stopper lever spring
7. Threaded rod
8. Selector stopper plate
9. Screw
10.Selector shaft
11.Flat washer 14x30x1
12.Selector spring
13.Threaded rod M8x1.25
14.Selector sprocket
15.Gear selector drum
16.Sprocket ratchet
SHIVER 900 Engine
ENG - 207

APRILIA SHIVER 900 Specifications

General

Displacement	896.1 cc
Transmission	6-speed
Rear Brakes	240 mm disc, single-piston caliper
Engine Type	V-Twin, 4-stroke
Power	70 kW (95.2 hp) @ 8, 750 rpm
Torque	90 Nm at 6, 500 rpm
Fuel System	Electronic fuel injection
Front Suspension	Inverted fork with adjustable preload and rebound damping
Rear Suspension	Aluminum swingarm with adjustable rebound and preload
Front Brakes	Dual 320 mm discs, radial 4-piston calipers
ABS	Standard
Traction Control	Adjustable traction control
Ride Modes	Sport, Touring, Rain
Seat Height	810 mm
Wheelbase	1, 460 mm
Fuel Capacity	15 liters
Dry Weight	199 kg (439 lbs)
