CRANKSHAFT
Pos. Description Type Quantity Torque Notes
1 Primary crankshaft fastening net M24x1.5 1 294 Nm (216.84 lb ft) Thoroughly de-
grease both of the
coupling surfaces
(shaft cone and
gear cone)
2 Connecting rod fastening screws -
Pre-torque
M10x1x40 4 15 Nm (11.06 lb ft) Lubricate the
threads before tight-
ening
2 Connecting rod fastening screws -
Torque
M10x1x40 4 30 Nm (22.13 lb ft) + 50°
+/- 2°
-
2 Connecting rod fastening screws -
Control
M10x1x40 4 70 Nm (51.63 lb ft) -
Splitting the crankcase halves
•
Remove the water pump, the oil pump, the clutch, the flywheel, the intermediate gearwheel
and the head-engine block-piston assembly complete with distribution.
CAUTION
BEFORE USING THE "PRIMARY GEARWHEEL LOCK TOOL - 020850Y", IT IS NECESSARY TO
MAKE THREE HOLES SO THAT IT MAY BE POSITIONED CORRECTLY ON THE ENGINE GUARD.

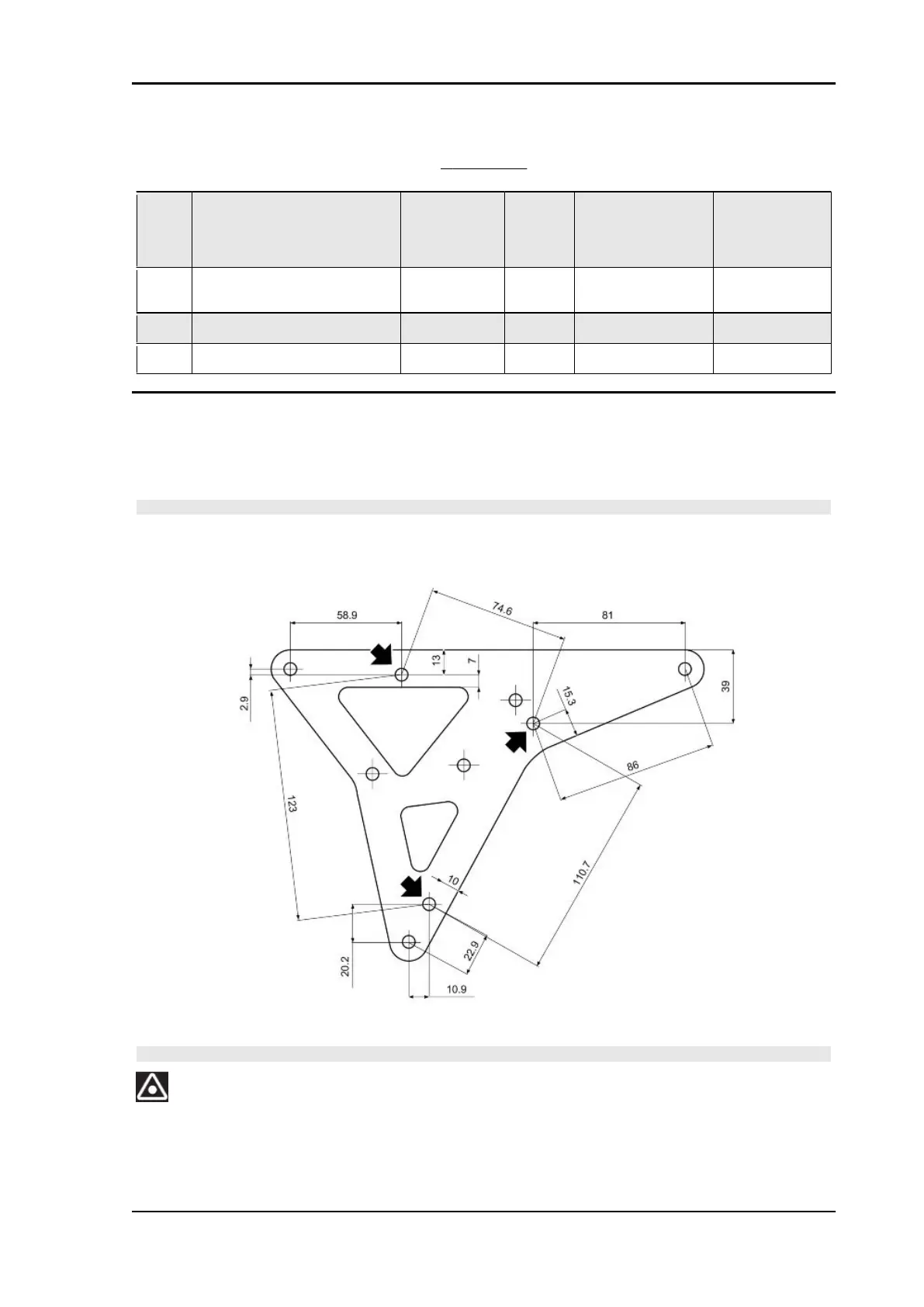

THE HOLES ARE ILLUSTRATED IN THE FOLLOWING IMAGE.
•
Mount the tool used to block the pinion, securing the three screws (1) on the guard.
CAUTION
TO AVOID DAMAGING THE OIL FEEDER COUPLING (2) POSITIONED ON THE GUARD, INSERT
SPACER WASHERS (3) BETWEEN THE TOOL AND THE GUARD, SO AS TO ENSURE A MINIMUM
DISTANCE OF 5mm (0.20 in)
Specific tooling
SHIVER 900 Engine
ENG - 265
