APRILIA SHIVER 900 User Manual

Checking the cylinder
•
All seal surfaces must be clean and flat.
•
Make sure all threads are in proper conditions.
•
Check cylinder sliding surface for signs of friction and scratches. Also check the seal sur-
faces for damages.
CAUTION
IF THE GROOVES ON THE CYLINDER LINER ARE EVIDENT, REPLACE THE CYLINDER AND
THE PISTON.
•
Clean off lime scales on the cylinder
cooling slots.
•

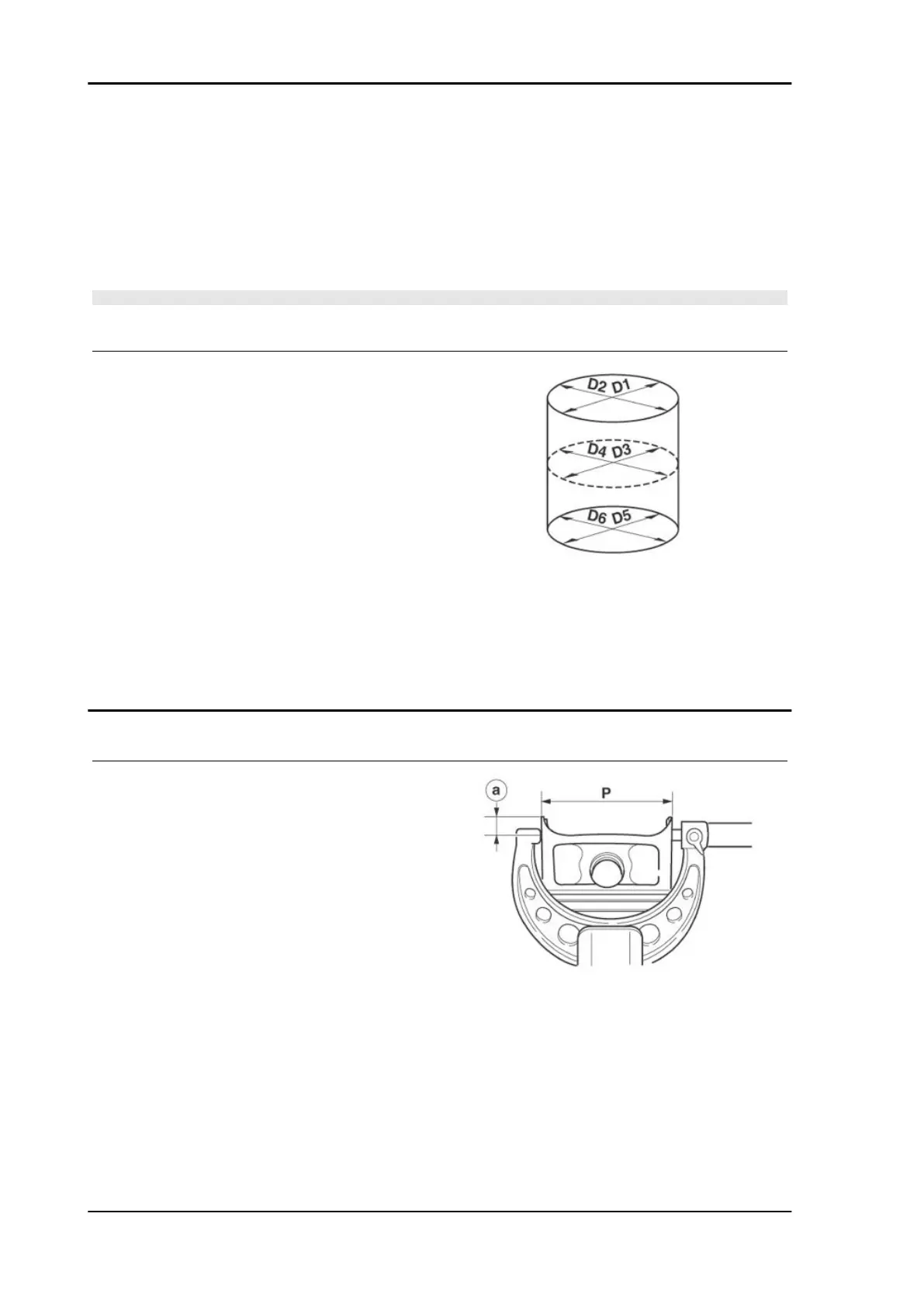

Measure the cylinder bore at a dis-
tance of 10 - 40 - 98.5 mm (0.39 - 1.57
- 3.88 in) from the head coupling sur-
face; the highest value should be con-
sidered to estimate wear limits.
Cylinder bore "C": 92,000 mm (3.6220 in)
(Key: C = max D1 or D2)
Cylindricity limit: 0.028 mm (0.0011 in)
Replace the cylinder, the piston and the piston ring
all together if not complying with specifications.
Checking the piston
•
Measure the piston skirt diameter "P"
with a micrometer (a=10 mm (0.39 in)
from the piston lower border).
•
Calculate the clearance between pis-
ton and cylinder as follows:
Piston - cylinder clearance C = C - P
Piston - cylinder clearance: 0.050 - 0.064 mm
(0.00197 - 0.00252 in) Limit: 0.100 mm (0.00039
in)
•
Replace the cylinder, the piston and
the piston ring all together if not com-
plying with specifications.
Engine SHIVER 900
ENG - 254

APRILIA SHIVER 900 Specifications

General

Displacement	896.1 cc
Transmission	6-speed
Rear Brakes	240 mm disc, single-piston caliper
Engine Type	V-Twin, 4-stroke
Power	70 kW (95.2 hp) @ 8, 750 rpm
Torque	90 Nm at 6, 500 rpm
Fuel System	Electronic fuel injection
Front Suspension	Inverted fork with adjustable preload and rebound damping
Rear Suspension	Aluminum swingarm with adjustable rebound and preload
Front Brakes	Dual 320 mm discs, radial 4-piston calipers
ABS	Standard
Traction Control	Adjustable traction control
Ride Modes	Sport, Touring, Rain
Seat Height	810 mm
Wheelbase	1, 460 mm
Fuel Capacity	15 liters
Dry Weight	199 kg (439 lbs)
