Battery
Charging cable for power sockets
3 Valid for: hybrid vehicles

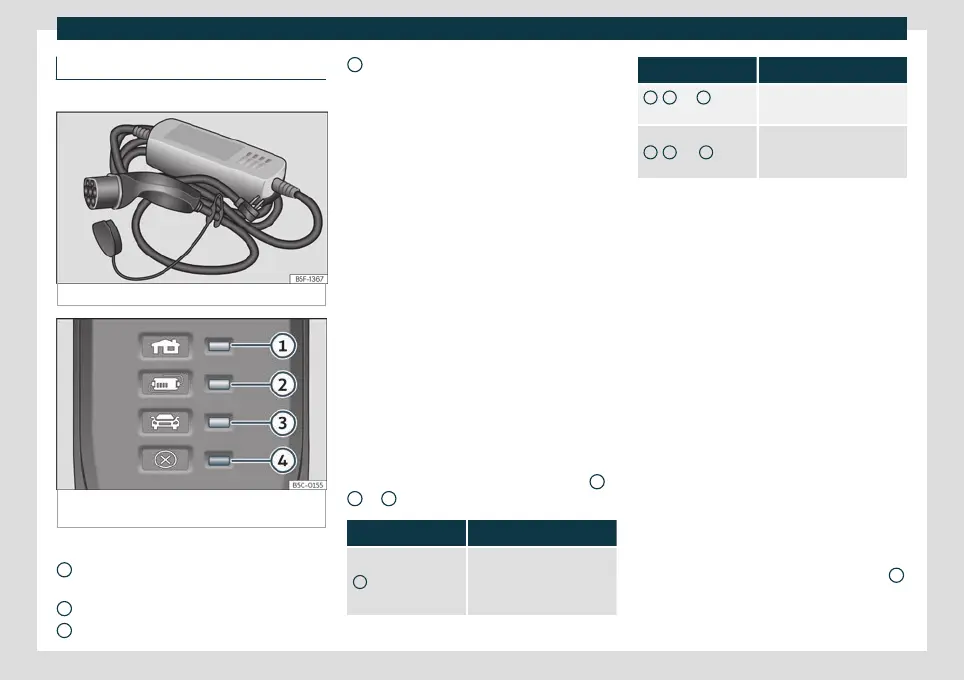

Fig. 194
Charging cable for electrical sockets
Fig. 195 On the charging cable for power sockets:
Indicator lamps on the protection device.
›››
Fig. 195:
Indicat
or lamp of the connect
or and the
power supply.
Control lamp of the protection device
Control lamp of the vehicle
1
2
3
Failure warning lamp
Char
ging cable inf
ormation
Before using the charging cable, also follow
the instructions displayed on it and on the
rear of the protective device.
Protection device
The electronic protection device
›››
Fig. 195
ensures that the charging connector does
not receive current until it is plugged in to
the vehicle's charging connector.
Self-check
When the charging cable is plugged into the
electrical socket, the protective device auto-
matically performs a self-test. During this
check, all warning and indicator lamps turn
on briefly and go out one after the other.
Upon completion, the operational status at
that time is displayed.
Operating displays
One or more indicator lamps
›››
Fig. 195
1
,
2
or
3
light up green.
Display
›››
Fig. 195 Meaning
1
on
The charging cable is plug-
ged into the mains but has
not been connected to the
vehicle.
4
Display
›››
Fig. 195 Meaning
1
,
2
on,
3
flashes
slowly
a)
The high-voltage battery is
charging.
1
,
2
and
3
on
The charging process is
complete. The high-voltage
battery has charged.
a)
The available supply voltage depends on each
country.
Set the charging curr
ent
The charging cable limits the charging cur-
rent according to the available power supply.
If the local mains supply does not allow
charging at the maximum charging current,
the charging current can be reduced, de-
pending on the charging setting features in
the infotainment system
›››
page 302 .
Temperature control
The charging cable temperature control
switches on when the charging cable over-
heats, such as when it has been stored in a
luggage compartment exposed to high tem-
peratures or strong sunlight.
When the charging process is interrupted,
the status indicator that is lit up at the time
switches off and one of the indicator lamps
starts slowly flashing green. Warning lamp
4
starts slowly flashing red.
310
