Fuses and bulbs
Fuses
Introduction
In general, a fuse can be assigned to various
electrical components. Like
wise, an electri-
cal component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible.
WARNING
The high voltages in the electrical system
can give serious electrical shocks, causing
burns and even death!
●
Never touch the electrical wiring of the
ignition system.
●
Take care not to cause short circuits in
the electrical system.
WARNING
Using unsuitable fuses, repairing fuses or
bridging a current circuit without fuses can
cause a fire and serious injury.
●
Never use a fuse with a higher value. Only
replace fuses with a fuse of the same am-
perage (same colour and markings) and
size.
●
Ne
ver replace a fuse by a metal strip, sta-
ple or similar.
CAUTION
●
To prevent damage to the vehicle’s elec-
trical system, before replacing a fuse always
turn off the ignition, the lights and all elec-
trical elements.
●
Protect the fuse boxes when open to pre-
vent the entry of dust or humidity as they
can damage the electrical system.
Note
●
One component may have more than one
fuse.
●
Several components may run on a single
fuse.
●
In the vehicle, there are more fuses than
those indicated in this chapter.
Fuses inside the vehicle

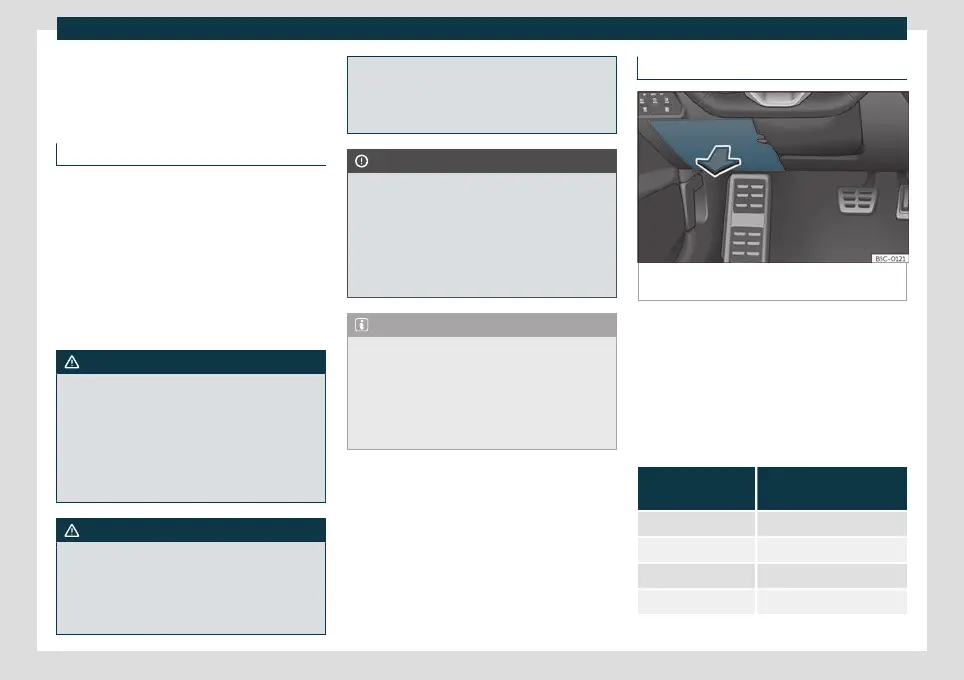

Fig. 47
On the driver's side dashboard: fuse box
cover.
Opening and closing the fuse box situated
belo
w the dash panel
●
Open:
fold the cover down
›››
Fig. 47 .
●
Close: push back the cover it in until it
clicks into place.
Identifying fuses below the dashboard by
colours
Colour Current intensity in
amps
Light brown 5
Brown 7.5
Red 10
Blue 15
58
