Section 6 - Wireless Settings

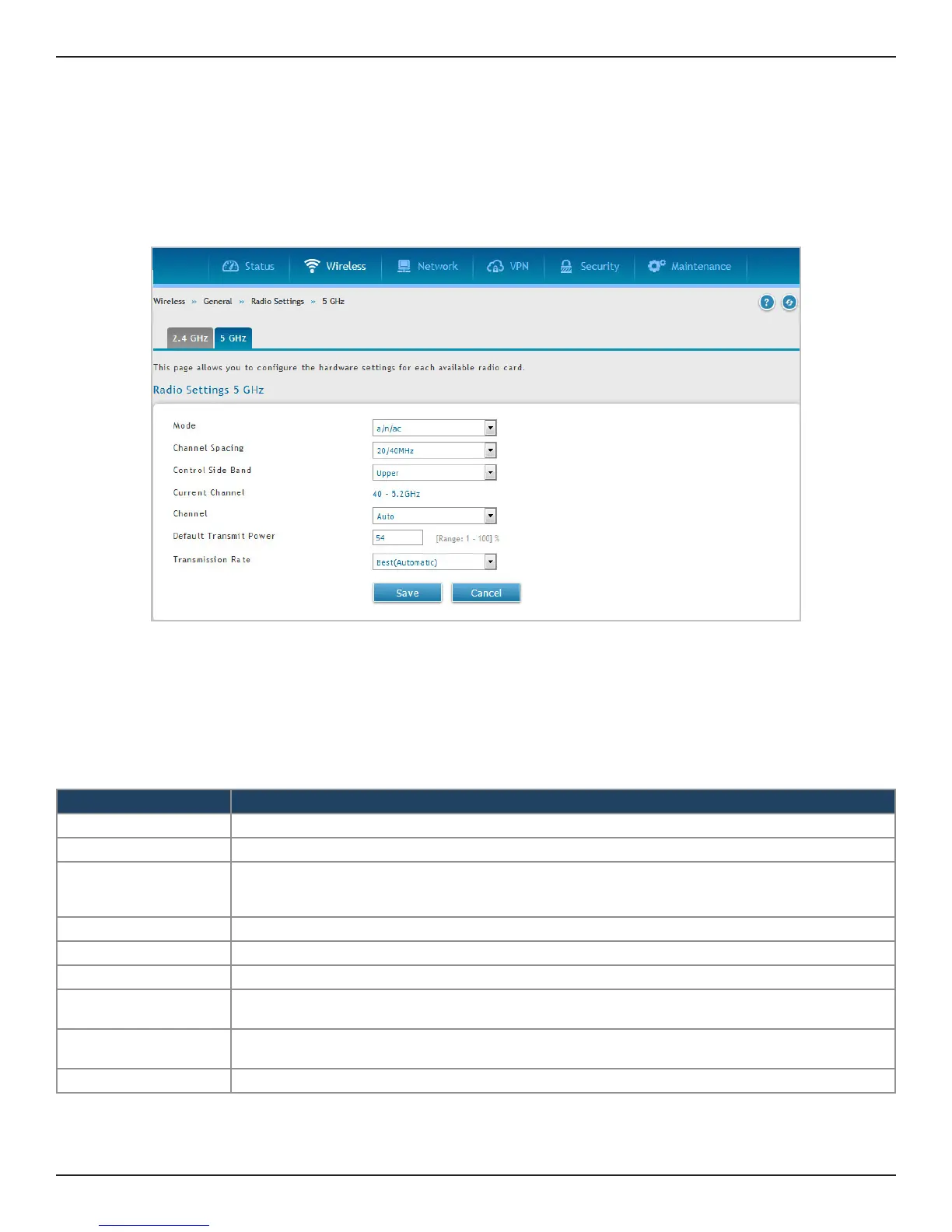

802.11AC Conguration
Path: Wireless > General > Radio Settings > 5 GHz
This section provides conguration options to use the DSR-500AC or DSR-1000AC advanced wireless capabilities
in the 5 GHz band.
With 802.11AC, data throughput can be signicantly increased as compared to 802.11n rates as the channel
bandwidth can be as high as 80 MHz. The available channels and spacing bandwidth are regulated by the
regulatory setting of the specic country the DSR-500AC or DSR-1000AC is deployed in. By selecting 802.11AC
rates, the 5 GHz radio will use the enhance capability of the new design and will send more data in a single
packet (via wireless frame aggregation).
Field Description
Mode It shows the 802.11 modulation techniques being used.
Channel Spacing Distance in MHz between the successive channels
Control Side Band
Control Sideband denes the sideband which is used for secondary or extension channel when AP
is operating in 40 MHz channel width. This setting is only applicable to 802.11n trac and used in
conjunction with the 40 MHz channel spacing. Select the control sideband from the drop-down menu.
Current Channel Channel being used in the available spectrum.
Channel Channel number selected by user, this is dened by the country code for the device.
Default Transmit Power Enter a value in % as the default transmitted power level for all APs that use this radio.
Transmit Power
Transmit power currently in use by the radio. Transmit power level is pre-congured such that the
transmit power output will range between 10-14 dBm.
Transmission Rate
Select a transmission rate from the drop-down menu. This will lock the transmission rate of your wireless
connection. It is strongly recommended to use Best (Automatic).
Save Rates used by device to download the data to client.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
