D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 66
Section 5 - Connect to the Internet

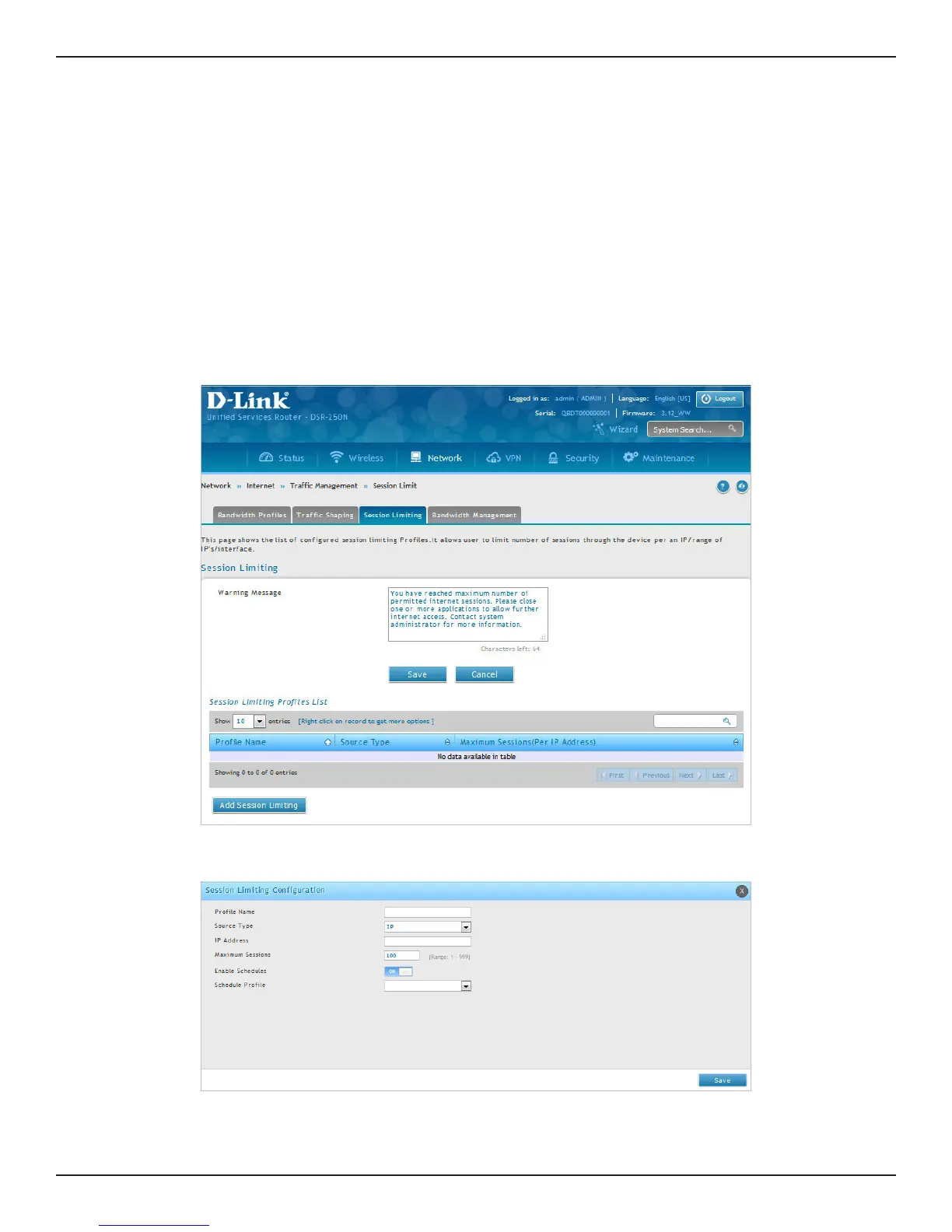

Path: Network > Internet > Trac Management > Session Limiting
Session Limiting page displays a list of congured session limiting proles. It allows user to limit the number of
sessions per IP address, range of IPs, or interface, through the device. The user can type a warning message that
will be displayed to users when session limit is reached. Session Limiting conguration consists of prole name,
source type, IP address, and maximum sessions.
To edit, delete, or create a new session limiting prole:
1. Click Network > Internet > Trac Management > Session Limiting.
2. Enter the Warning Message and click Save to save the changes.
Session Limiting
3. Click Add Session Limit to add a new session limiting prole.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
