D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 113
Section 7 - VPN

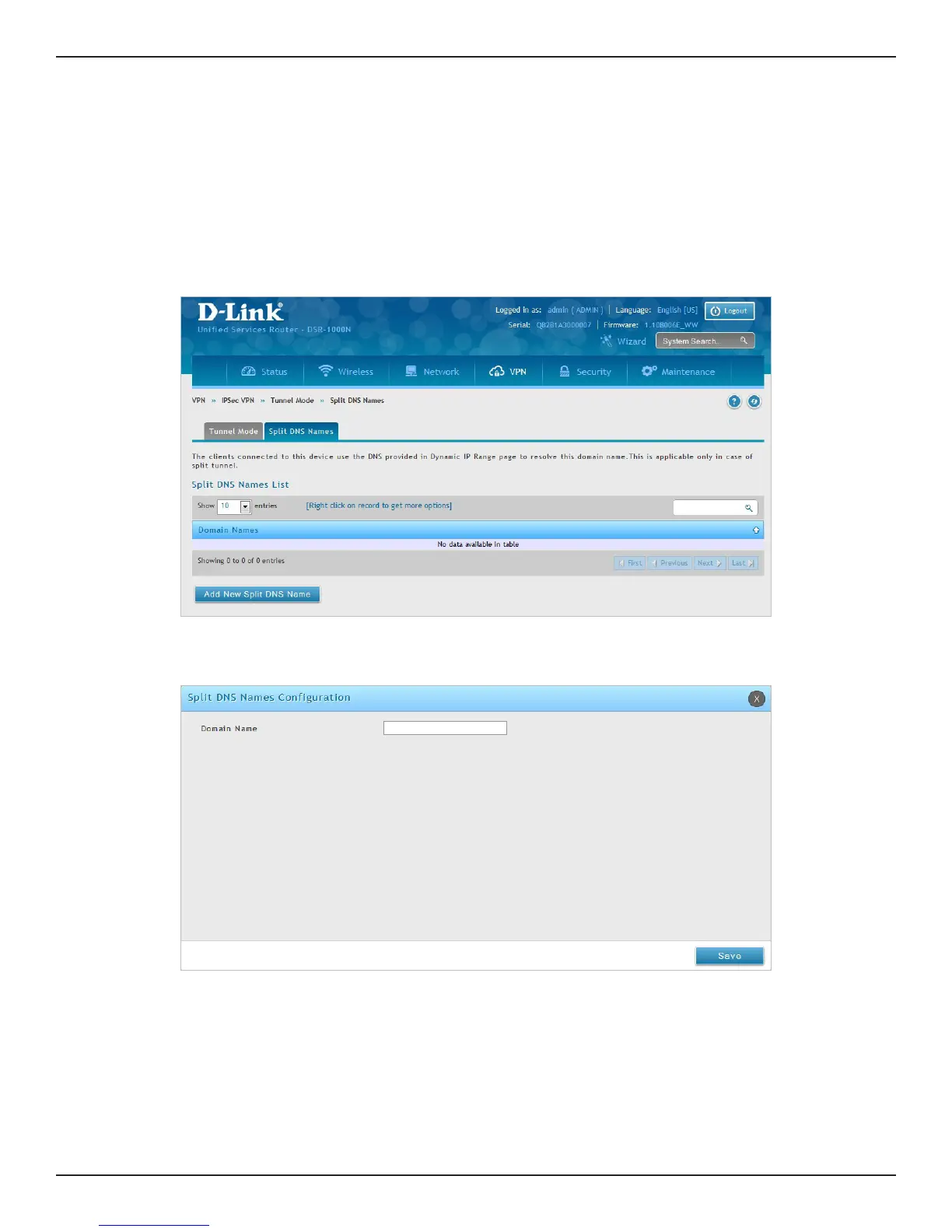

Split DNS Names
To add a DNS name:
1. Click VPN > IPSec VPN > Tunnel Mode > Split DNS Names tab.
2. Click Add New Split DNS name. You can right-click any created entries to edit or delete.
3. Enter a domain name and click Save.
In a split DNS infrastructure, you create two zones for the same domain, one to be used by the internal network,
the other used by the external network. Split DNS directs internal hosts to an internal domain name server for
name resolution and external hosts are directed to an external domain name server for name resolution.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
