Section 7 - VPN

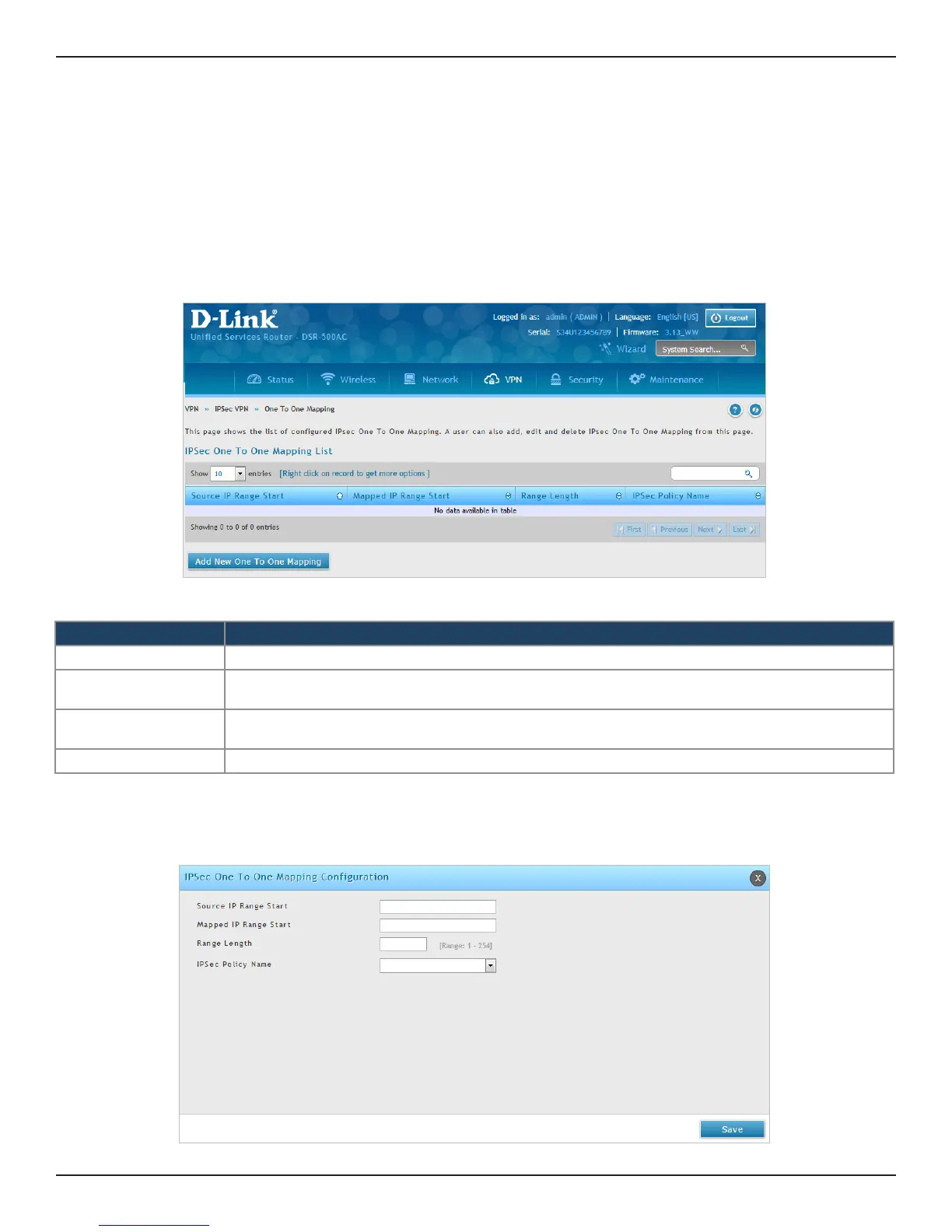

One To One Mapping
Path: VPN > IPSec VPN > One To One Mapping
This page shows a list of congured IPsec One To One Mapping. A user can add, edit, and delete IPsec One To One
Mapping on this page. To upload an exported IPSec VPN policy, follow the steps given below:
1. Click VPN > IPSec VPN > One To One Mapping.
2. IPsec One to One Mapping list is displayed. The table lists the available One to One Mapping rules that
have been congured.
3. The elds present on this page are given in the table below.
Field Description
Source IP Range Start It displays the starting IP address in the private (LAN) IP subnet.
Mapped IP Range Start
It displays Mapped IP address through which trac should be forwarded/received from/to the LAN host
IP or range of IP addresses.
Range Length
It displays Range value between 1 to 254, which maps One To One private address to public address up
to given range.
IPSec Policy Name It displays the name of the IPSec policy associated with the congured One To One mapping rule.
4. To add a new entry into the table, click Add New One to One Mapping to open the One to One
Mapping Conguration page.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
