Section 7 - VPN
IPSec VPN
Policies
Path: VPN > IPSec VPN > Policies
An IPsec policy is between this router and another gateway or this router and an IPsec client on a remote host.
The IPsec mode can be either tunnel or transport depending on the network being traversed between the two
policy endpoints.
• Transport: This is used for end-to-end communication between this router and the tunnel
endpoint, either another IPsec gateway or an IPsec VPN client on a host. Only the data payload
is encrypted and the IP header is not modied or encrypted.
• Tunnel: This mode is used for network-to-network IPsec tunnels where this gateway is one
endpoint of the tunnel. In this mode the entire IP packet including the header is encrypted
and/or authenticated.
When tunnel mode is selected, you can enable NetBIOS and DHCP over IPsec. DHCP over IPsec allows this router
to serve IP leases to hosts on the remote LAN. As well in this mode you can dene the single IP address, range of
IPs, or subnet on both the local and remote private networks that can communicate over the tunnel.
To congure the radio settings:

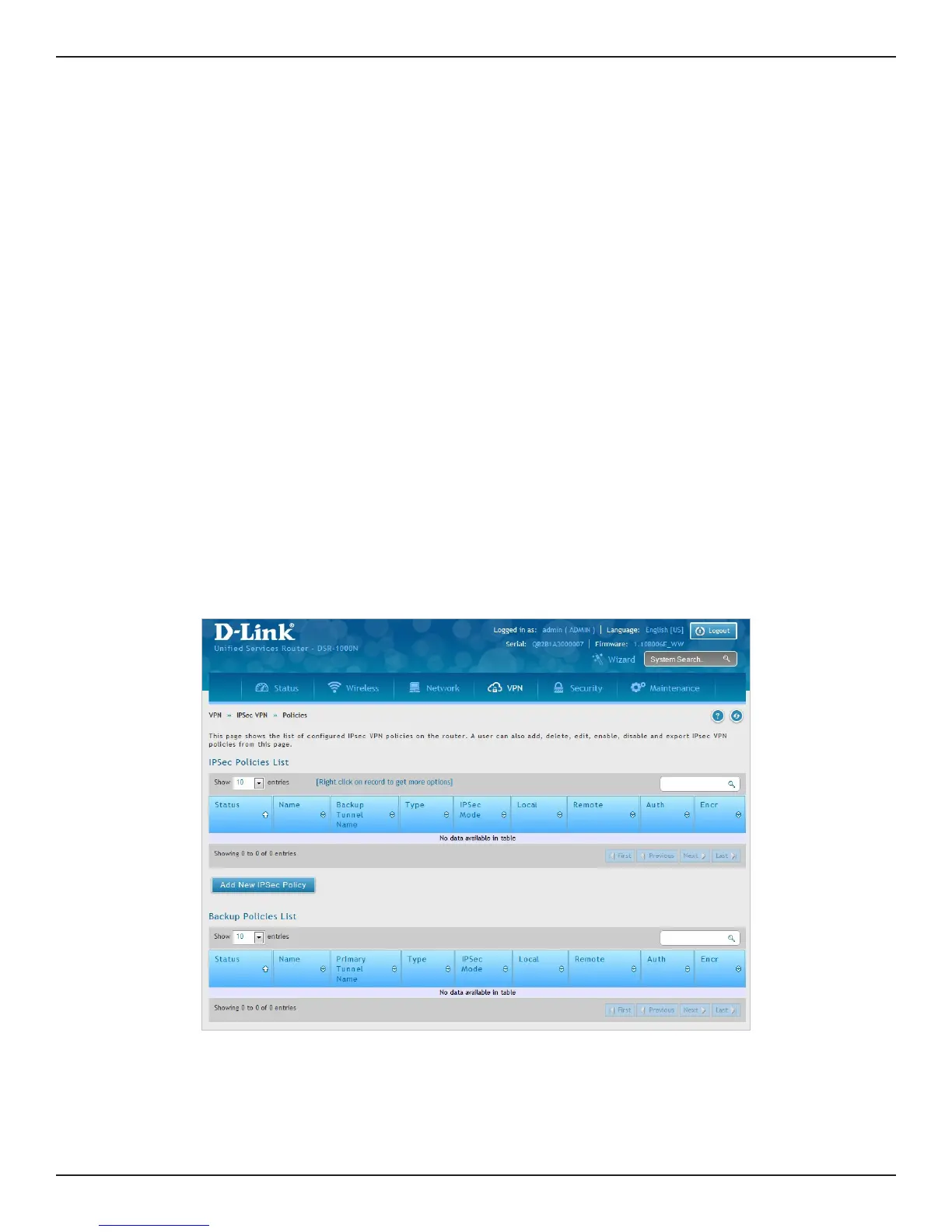

1. Click VPN > IPSec VPN > Policies.
2. Click Add new IPSec Policy. Fill out the General section which you will name the VPN, select policy
type, dene the tunnel type, and dene endpoints.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
