Section 7 - VPN
PPTP VPN
PPTP Server
Path: VPN > PPTP VPN > PPTP Server
A PPTP VPN can be established through this router. Once enabled a PPTP server is available on the router for LAN
and WAN PPTP client users to access. Once the PPTP server is enabled, PPTP clients that are within the range of
congured IP addresses of allowed clients can reach the router’s PPTP server. Once authenticated by the PPTP
server (the tunnel endpoint), PPTP clients have access to the network managed by the router.
The range of IP addresses allocated to PPTP clients can coincide with the LAN subnet. As well the PPTP server
will default to local PPTP user authentication, but can be congured to employ an external authentication server
should one be congured.
Field Description
Enable PPTP Server Select either IPv4 or IPv6.
PPTP Routing Mode Select either NAT or Classical.
Starting/Ending IP Address Enter the IP address range to assign your PPTP clients.
IPv6 Prex If you selected IPv6, enter the IPv6 prex.
IPv6 Prex Length If you selected IPv6, enter the IPv6 prex length.
Authentication Select the authentication type from the drop-down menu.
Authentication Supported Toggle which type of authentication you want to enable to ON.
Idle TimeOut Enter the amount of time in seconds that the connection will disconnect when idle.
NetBIOS
Toggle to ON to allow NetBIOS broadcasts to travel over the VPN tunnel. Enter Primary and
Secondary Windows Server address for Netbios.
Save Click to save your settings.

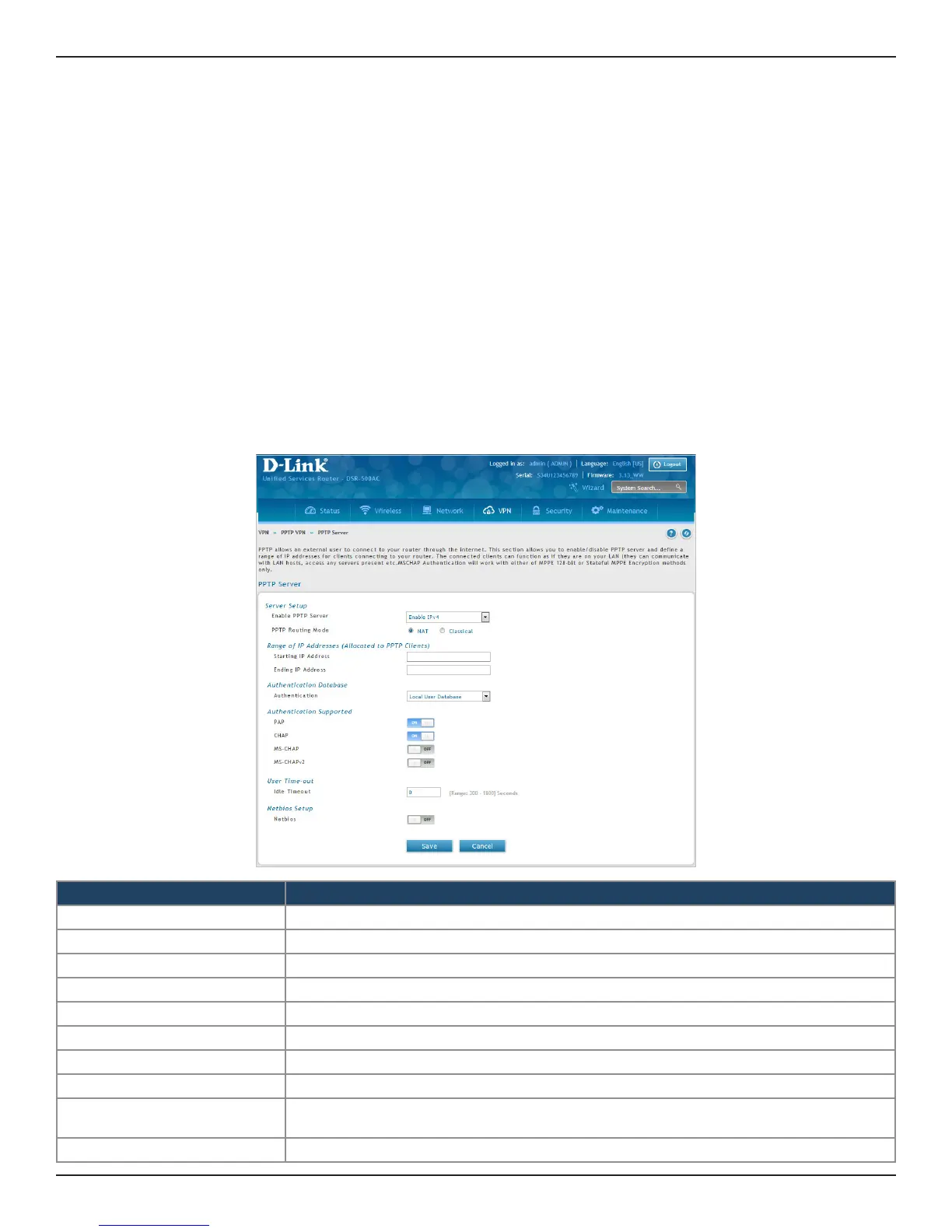

To create a PPTP VPN server:
1. Click VPN > PPTP VPN > PPTP Server.
2. Complete the elds in the table below and click Save.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
