D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 233
Section 9 - Maintenance
Using USB
To upgrade the rmware using a USB thumb drive:
1. Download the latest rmware version from the D-Link support website and copy the le to a USB
thumb drive.
2. Plug the USB thumb drive into a USB port on the router.

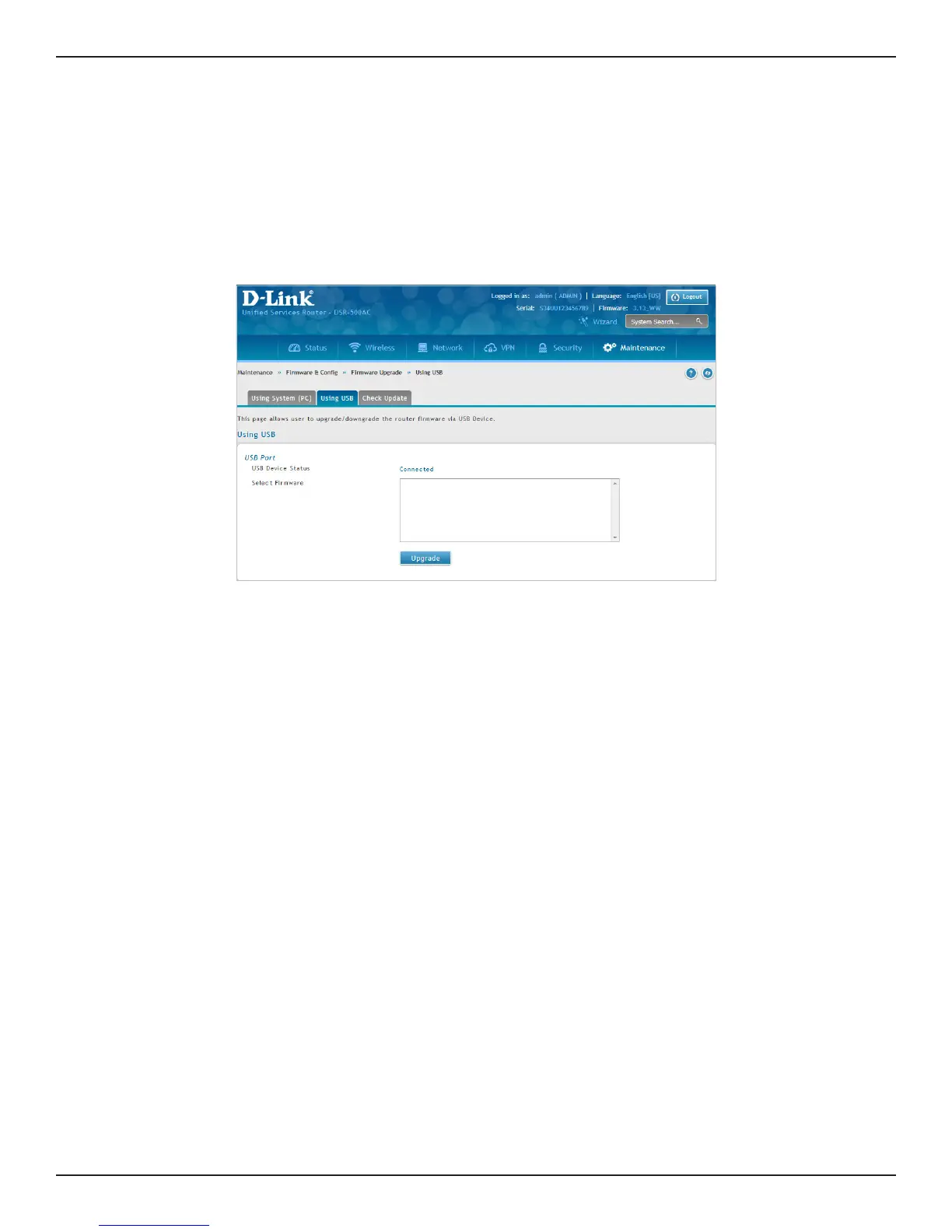

3. Log in to the router and click Maintenance > Firmware & Cong > Firmware Upgrade > Using USB
tab.
4. Select the rmware le from the list and click Upgrade.
Note: The upgrade process takes a few minutes. Do not interrupt the upgrade or turn o the router;
otherwise you can damage the rmware. Wait for the upgrade to complete before browsing any sites from
your browser.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
