D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 136
Section 7 - VPN
Open VPN
Path: VPN > OpenVPN > OpenVPN Settings
OpenVPN allows peers to authenticate each other using certicates, or username/password. When used in a
multiclient-server conguration, it allows the server to release an authentication certicate for every client, using
signature and Certicate authority. An OpenVPN can be established through this router.
You can select server mode, client mode, or access server client mode. In access server client mode, the user has to
download the auto login prole from the OpenVPN Access Server and upload the same to connect.
Server

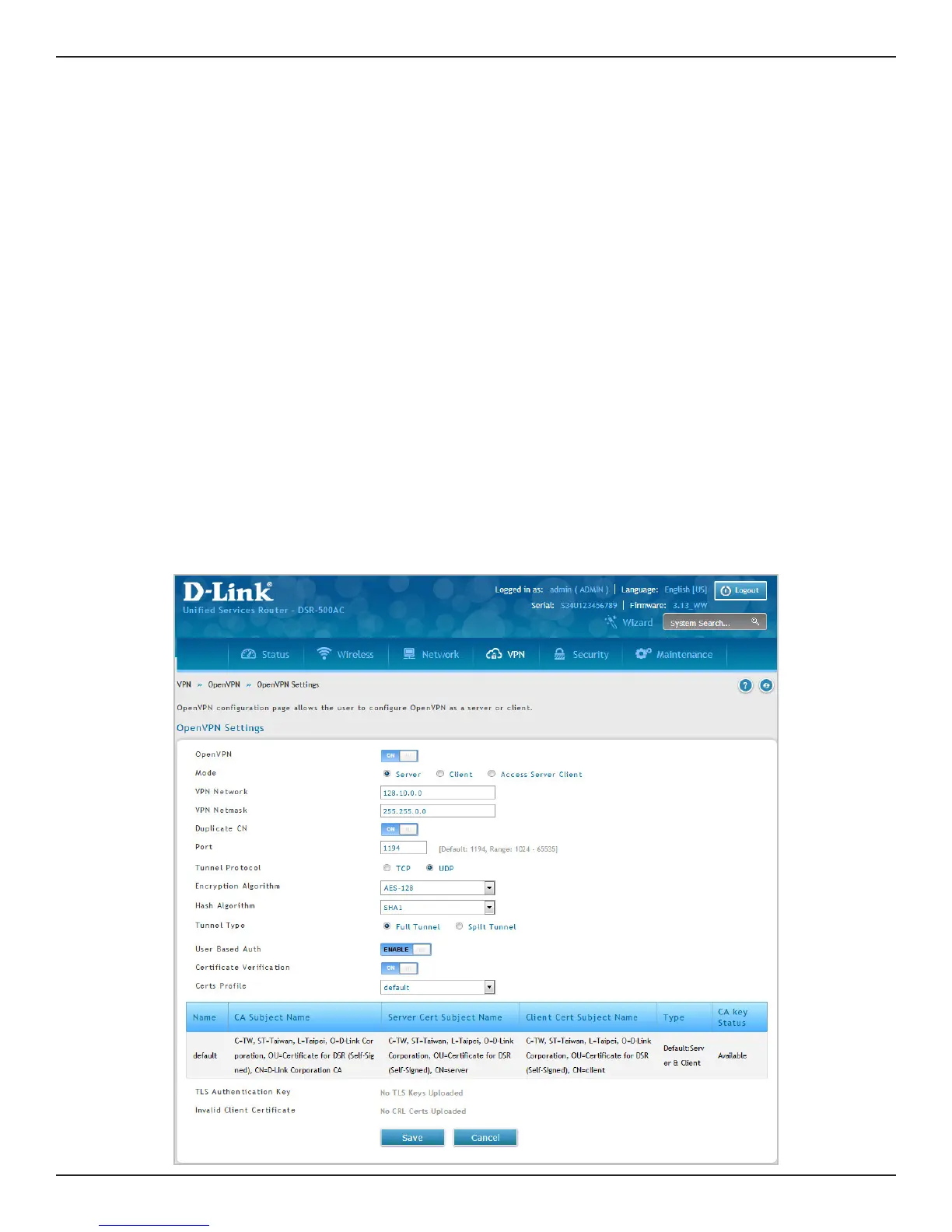

OpenVPN Settings
To congure the router as an OpenVPN Server:
1. Click VPN > OpenVPN > OpenVPN Settings.
2. Toggle OpenVPN to ON and complete the elds in the table below.
The router provides OmniSSL feature, a customized OpenVPN, which is an alternate to the SSL VPN connectivity
while supporting most of the SSL VPN features. OmniSSL provides an executable conguration le via a portal
page (https://<WAN>/OmniSSL or https://<WAN>/OmniSSL/ (maintaining backward compatibility)) that facilitates
the client installation from the device and is an enhancement to the existing OpenVPN. Additionally, this VPN
tool can be used via mobile devices, thereby, eliminating browser and Java dependencies typical to SSL VPN
solutions including that oered in the DSR.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
