D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 238
Section 9 - Maintenance
Reset to Factory Default Settings
If you reset the router to its factory default settings, it returns to the state when it was new — all changes you
made to the default conguration are lost. Examples of settings that get restored include critical things you need
to get online, such as login password, SSID, IP addresses, and wireless security keys.

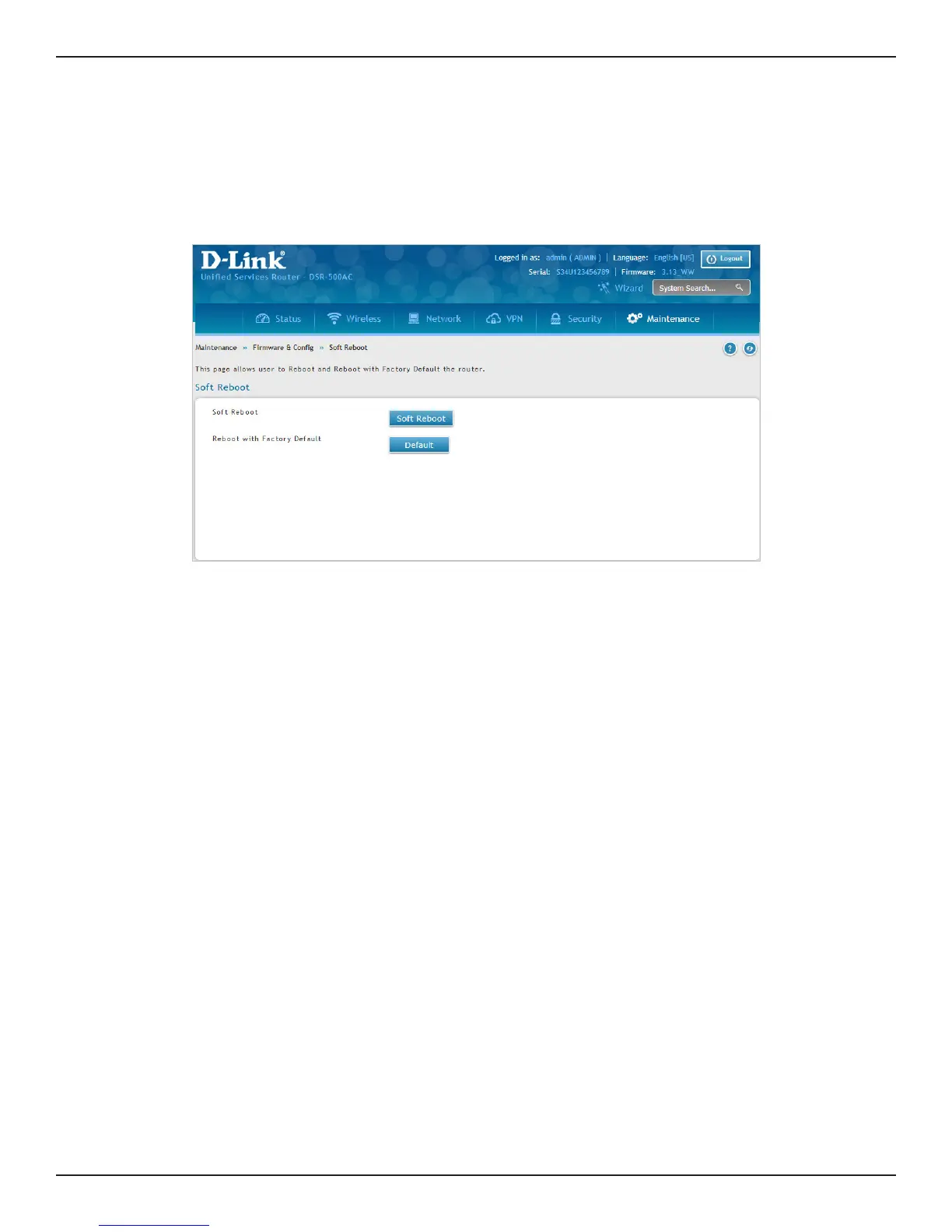

1. Click Maintenance > Firmware & Cong > Soft Reboot.
2. Click Default. The router will restart automatically after resetting to the factory default settings.
Note: After restoring to the factory default settings, the router’s default LAN IP address is 192.168.10.1, the default
login user name is ‘admin’, and the default login password is ‘admin’.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
