D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 249
Section 10 - Status and Statistics

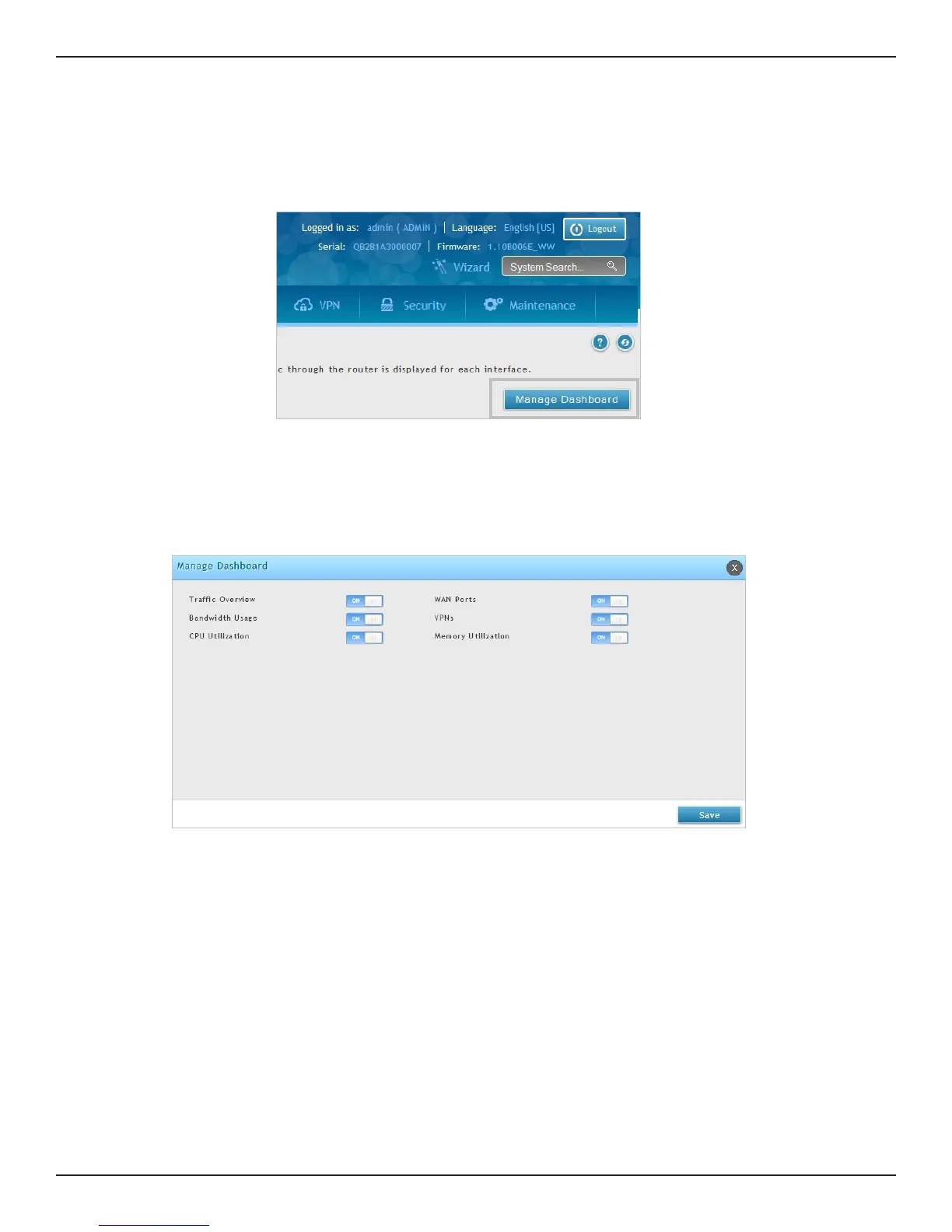

Manage Dashboard
To manage the dashboard:
1. Click on the Manage Dashboard button.
2. The following window will pop out and allow you to enable or disable the overview panels shown on
the dashboard. Toggle the panel to ON or OFF and click Save.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
