D-Link DSR-Series User Manual 228
Section 9 - Maintenance
Path: Maintenance > Management > Diagnostics > System Check
As part of the diagnostics functions on the router, you can view the static and dynamic routes for both IPv4 and IPv6.

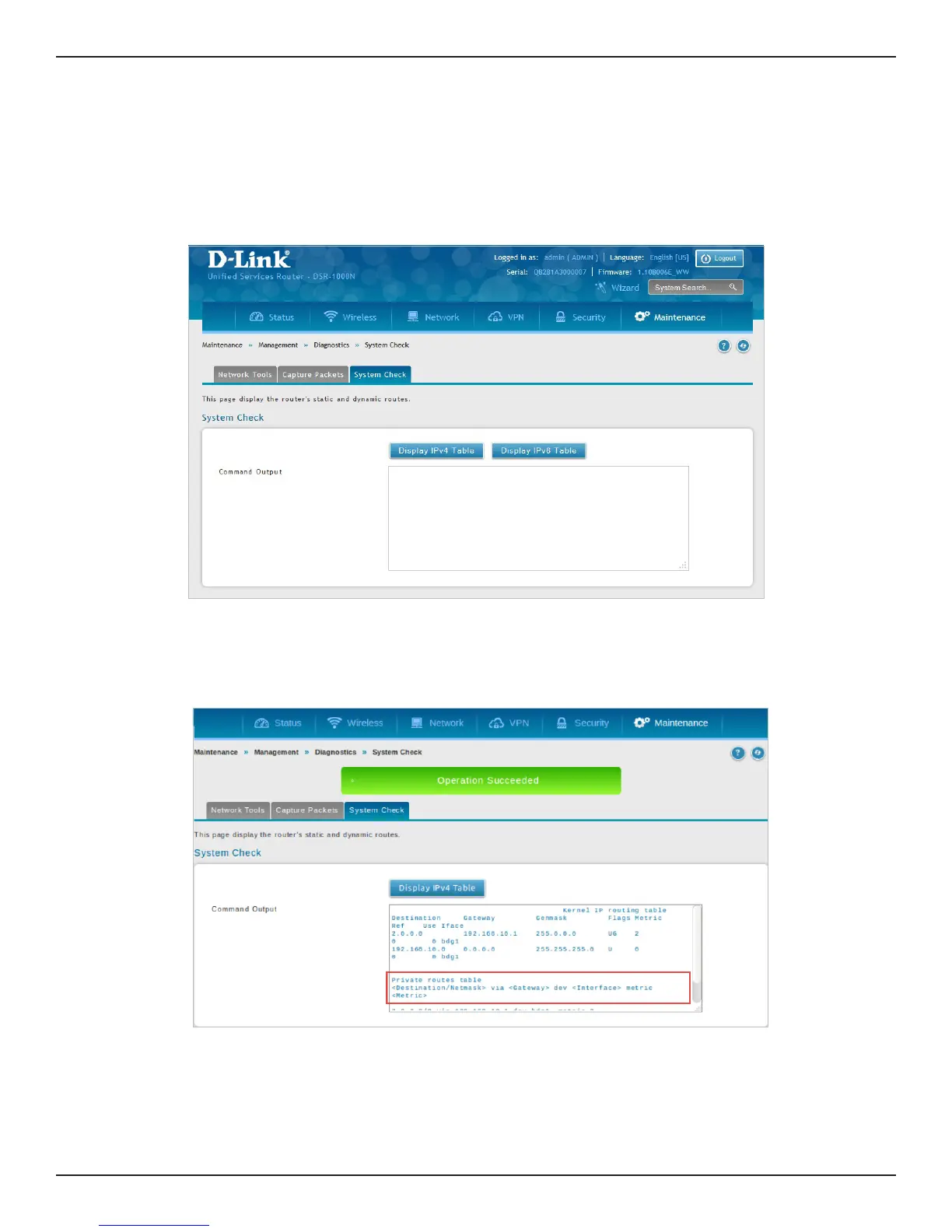

1. Click Maintenance > Management > Diagnostics > System Check tab.
System Check
2. Click Display IPv4 Table or Display IPv6 Table. The result will appear in the Command Output display.
If the route is set as private on the Static Route Conguration page (Network > Routing > Static Route),
the Display IPv4 Table indicates “Private routes table, as shown below.
