D-Link DSR-150 User Manual

D-Link DSR-Series User Manual 29
Section 4 - LAN Conguration
Captive Portal
Note: The DSR-150/150N/250/250N routers do not have support for the Captive Portal feature. Captive Portal is
available for LAN users only and not for DMZ hosts.

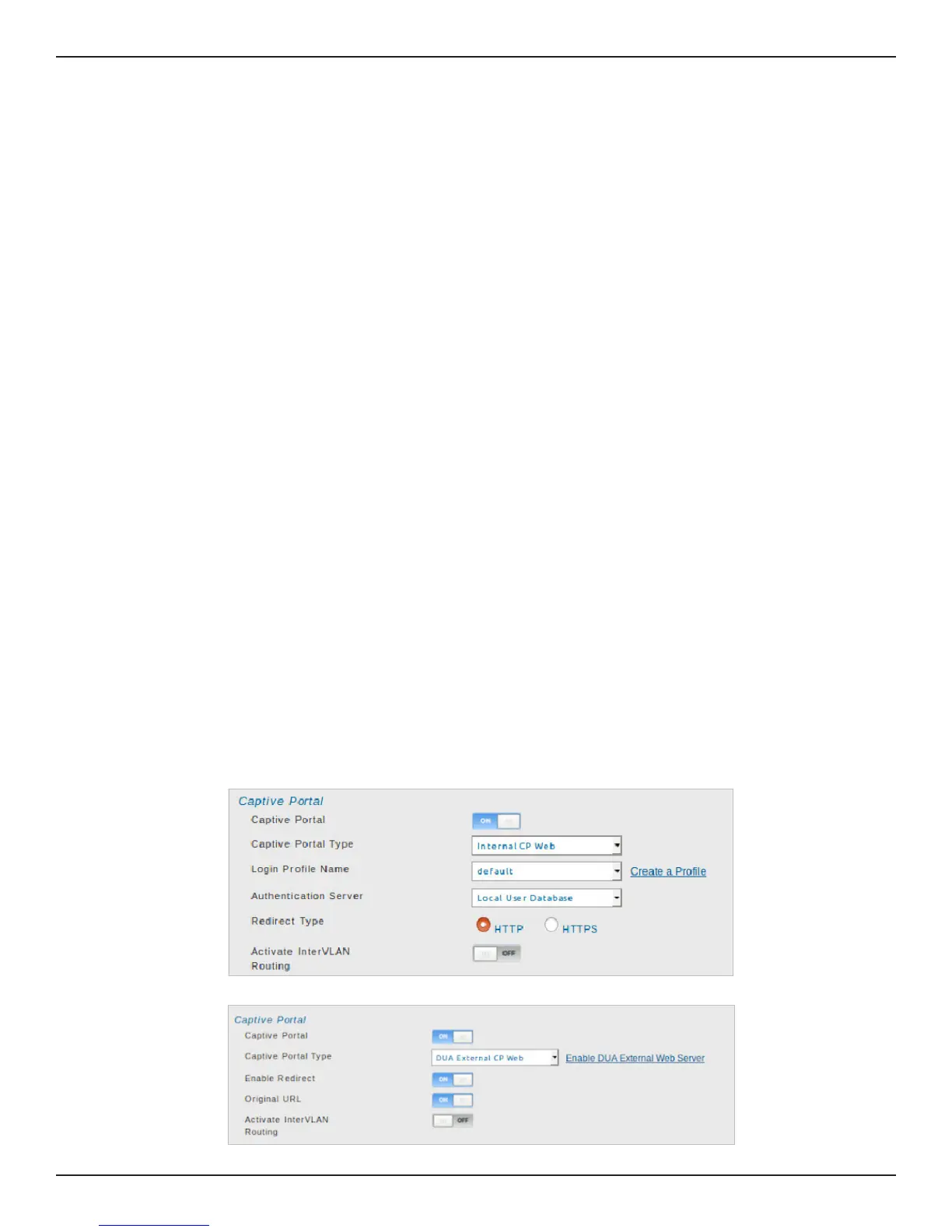

Captive Portals can be enabled on a per-VLAN basis. Hosts of a particular VLAN can be directed to authenticate
via the Captive Portal, which may be a customized portal with unique instructions and branding as compared to
another VLAN. The most critical aspect of this conguration page is choosing the authentication server. All users
(VLAN hosts) that want to gain internet access via the selected Captive Portal will be authenticated through the
selected server.
To enable Captive Portal to a specic VLAN:
1. Click Network > LAN > VLAN Settings.
2. Click Add New VLAN at the bottom or right-click an existing VLAN and select Edit.
3. Toggle Captive Portal to ON.
4. Select Captive Portal Type as either Internal CP Web or DUA External CP Web.
5. If DUA External CP Web is selected as the Captive Portal Type, you will be redirected to the DUA External
Captive Portal web pages. If Internal CP Web is selected, you will be redirected to the device Internal
Captive Portal pages.
6. Next to Authentication Server, select an authentication server from the drop-down menu. This eld is
available only when Internal CP Web is selected as the Captive Portal Type.
7. Next to Login Prole Name, select a prole from the drop-down or click Create a Prole to create a new
one.
8. Select either HTTP or HTTPS for the redirect type.
9. If you would like communication between VLANs, toggle Activate InterVLAN Routing to ON.
10. Click Enable Redirect button to enable URL redirection to the Original URL or to the congured URL.
11. Click Original URL to enable URL redirection to Original URL entered by the user. Enter the URL to be
redirected after successful captive portal authentication.
12. Make any other changes/selections and click Save.

D-Link DSR-150 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
PC in (D-Sub)	No
USB ports quantity	0
Ethernet LAN (RJ-45) ports	8
Supported network protocols	IPSec, PPTP, L2TP
Security algorithms	3DES, DES, SSL/TLS
VPN tunnels quantity	21
Filtering description	Keyword
MAC address filtering	-
Safety	cUL, LVD (EN60950-1)
Certification	WEEE
Electromagnetic compatibility	FCC Class B, CE Class B, C-Tick, IC
Mean time between failures (MTBF)	240000 h
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	7.44 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black
Input voltage	12 V
Ports quantity	The number of ports or external interfaces to which other equipment can be connected.
Management platform	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Connectivity technology	Wired
Compliance industry standards	RoHS

Weight and Dimensions

Depth	118 mm
Width	208 mm
Height	35 mm
Weight	- g
