Interfaces Virtual LANs (VLANs)
IX10 User Guide
176
Create a trunked VLAN route
Required configuration items
n
Device to be assigned to the VLAN.
n
The VLANID. The TCP header uses the VLAN ID to identify the destination VLAN for the packet.
To create a VLAN:
Web
1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.

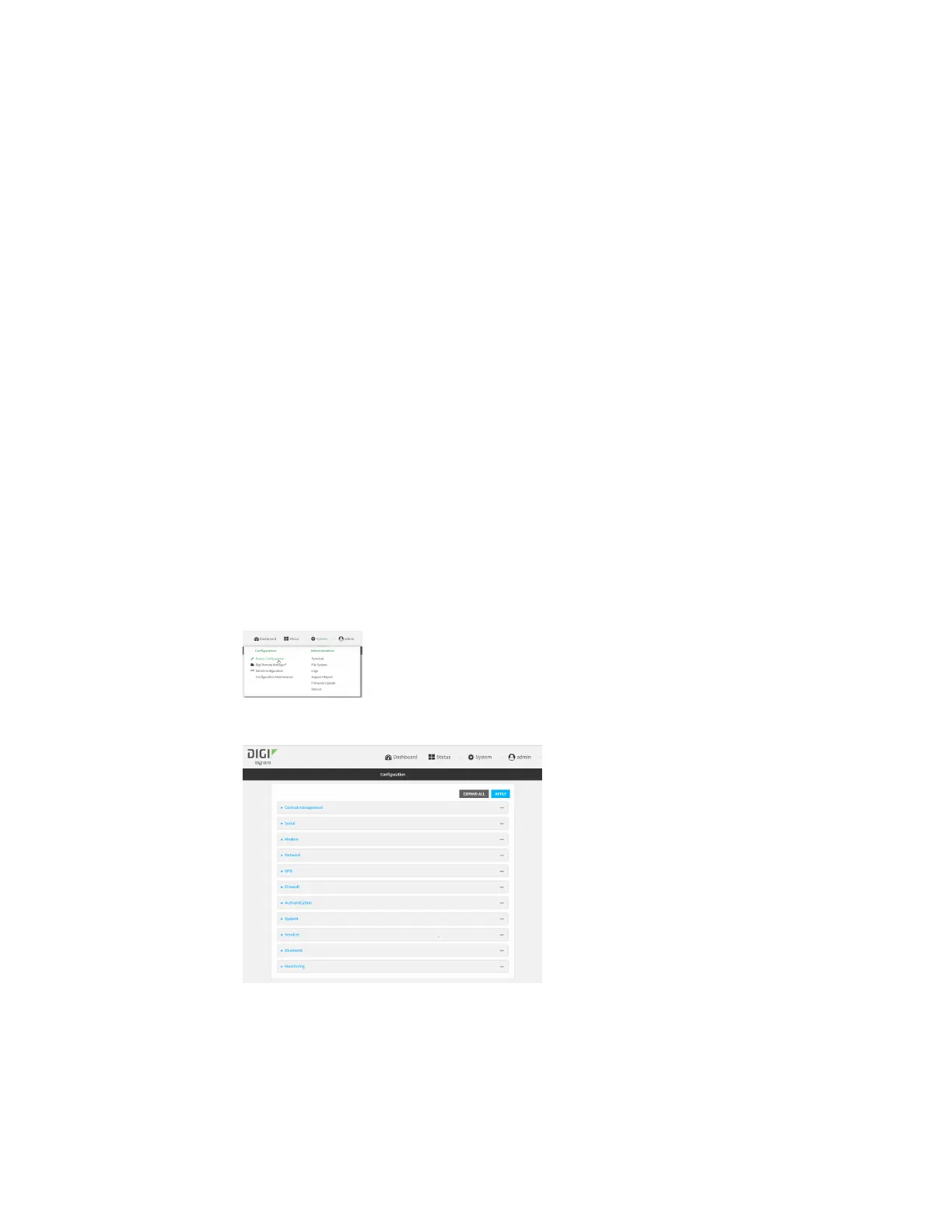

Local Web UI:
a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Network > Virtual LAN.
4. Type a name for the VLAN and click .
5. Select the Device.
To Next Page
