Digi IX10 User Manual

Serial port Advanced RealPort configuration without using the Digi Navigator
IX10 User Guide
239

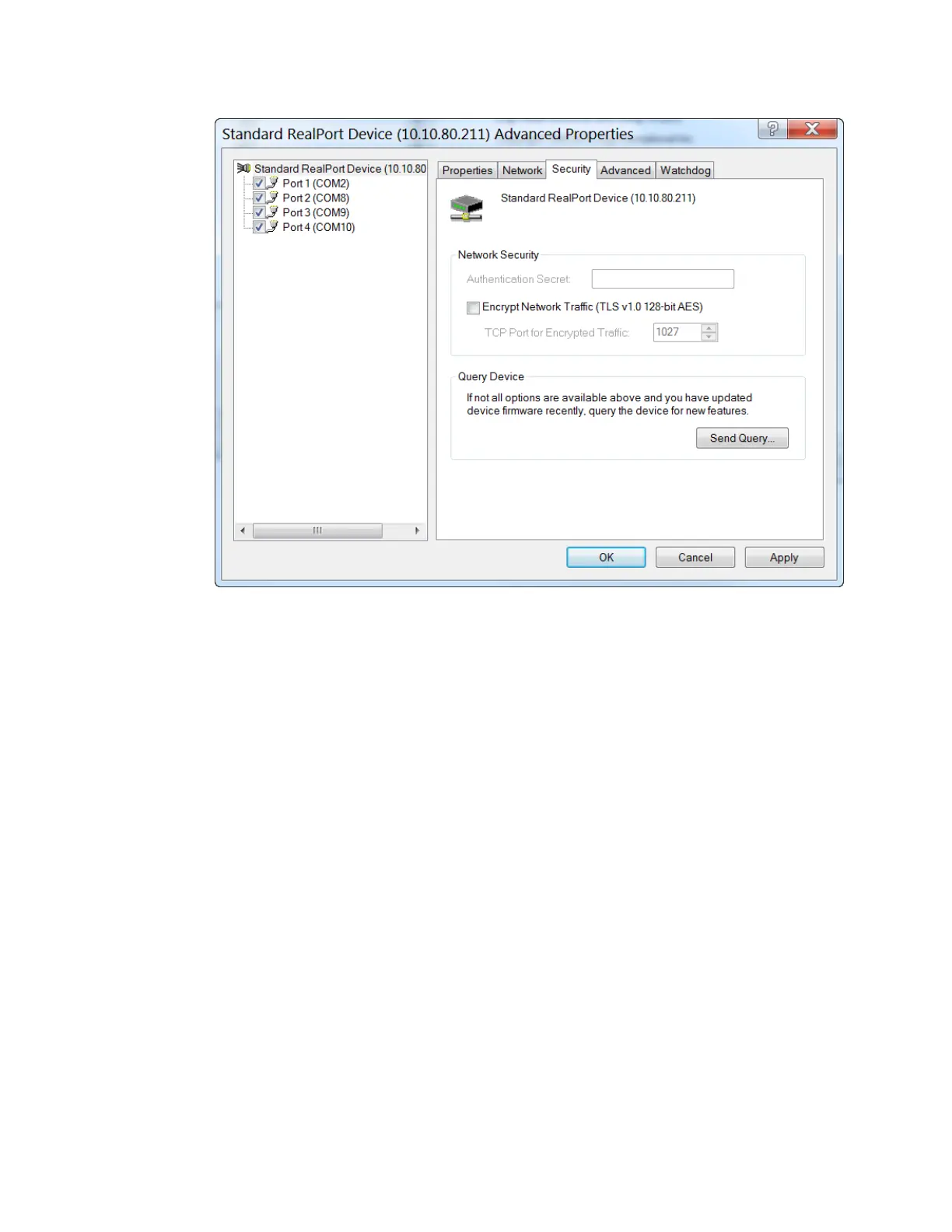

7. Select the Encrypt Network Traffic check box to enable encrypted network traffic. When you
select this option, the TCP Port for Encrypted Traffic field becomes available.
8. The TCP Port for Encrypted Traffic field has a default value of 1027. The entry must match
the device's TCP port setting.
9. (Optional)If you want to use authentication, configure the feature.
a. From the the Authentication Method list box, select the Shared Secret - SHA256 option.
b. Enter the authentication password in the Shared Secret field.
10. Click Apply.
11. Click OKto close the Advanced Properties dialog.
12. Click OK to close the Properties window.
Configure the serial port for RealPort mode
RealPort mode allows you to use Realport.
To change the configuration to match the serial configuration of the device to which you want to
connect:
Web

Digi IX10 Specifications

General

Brand	Digi
Model	IX10
Category	Network Router
Language	English
