Parameters
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 85
Drives Control, continued

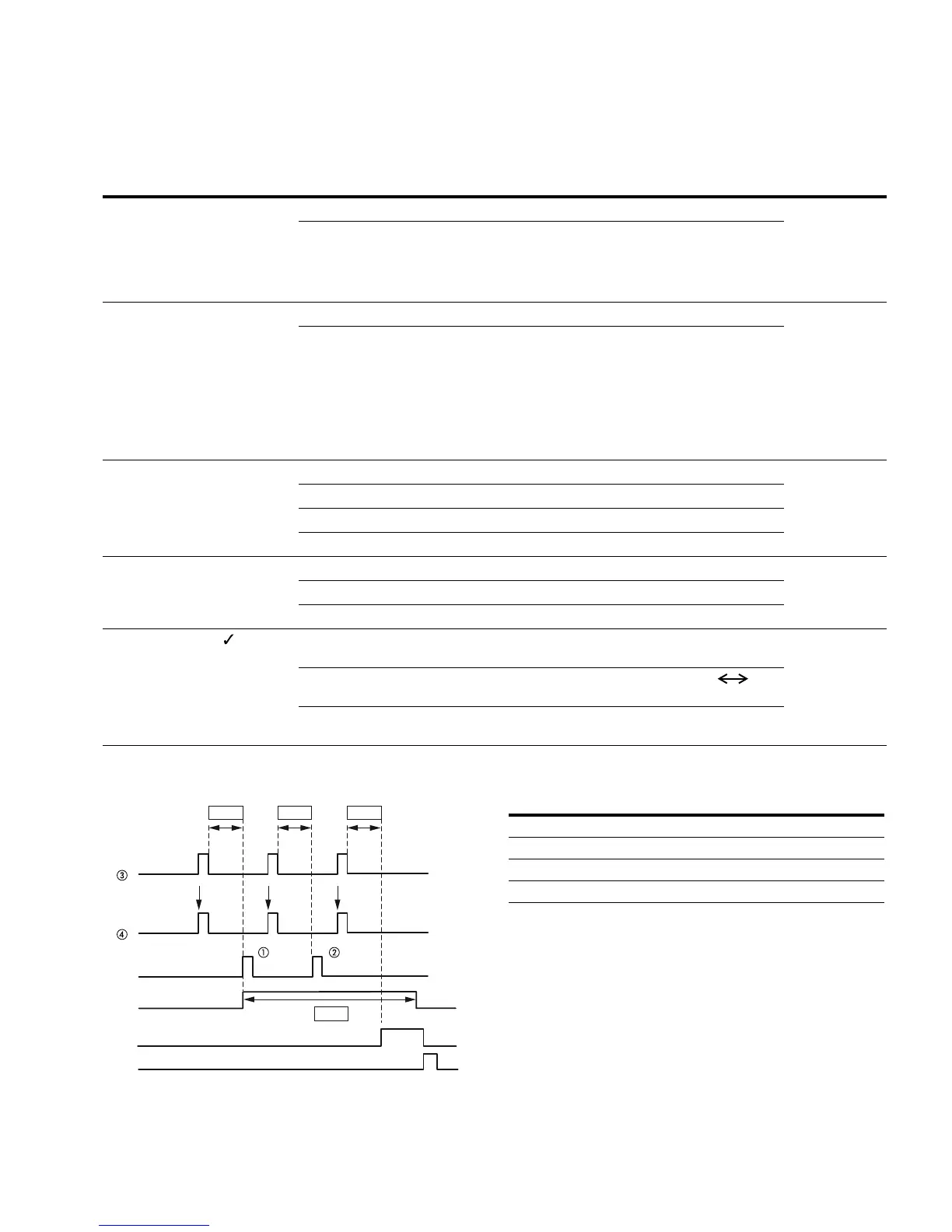

Automatic Restart After Error Message
(Two Start Attempts)
PNU ID
Access
RUN Value/Range Description
Factory Setting
(P1.3)
P6.10 717 X — REAF, Wait time before an automatic restart 0.50
0.10–10.00s Active, if P6.13 = 1 and P3.1 = 0
Waiting time until automatic restart, after the detected
error has disappeared
(REAF = Restart After Failure)
P6.11 718 X — REAF, Testing period over automatic restarts 30.00
0.00–60.00s Active, if P6.13 = 1
Timed monitoring of the automatic restart
The monitoring time begins with the first automatic restart.
If more than three error messages occur during the testing
period, fault status is activated. Otherwise, the error is
acknowledged after the test time has elapsed and the test
time is only started again with the next error. The number of
fault occurrences before a fault is indicated is defined by P6.30
P6.12 719 X — REAF, Start function with automatic restart 0
0 Ramp (acceleration)
1 Flying restart circuit
2 According to P6.7
P6.13 731 X — REAF, automatic restart after an error message 0
0 Deactivated
1 Activated
P6.14 1600 — Stop on direction change via the arrow buttons (</>) of the
keypad (KEYPAD)
1
0 Deactivated, changes the direction of rotation (FWD REV)
automatically on passing setpoint zero
1 Activated, stops the drive at setpoint zero and requires
another actuation of the Start button
FAULT
RESET
START
TEST
P6.10
P6.11
P6.10 P6.10
Item
Number Description
1 First automatic restart
2 Second automatic restart
3 Shut-off when error detected
4 Motor stop signal
TEST = monitored test tim
FAULT = shut-off when error message occurs
RESET = reset error message (FAULT)
