M-Max Series Overview
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 13
Description of the M-Max

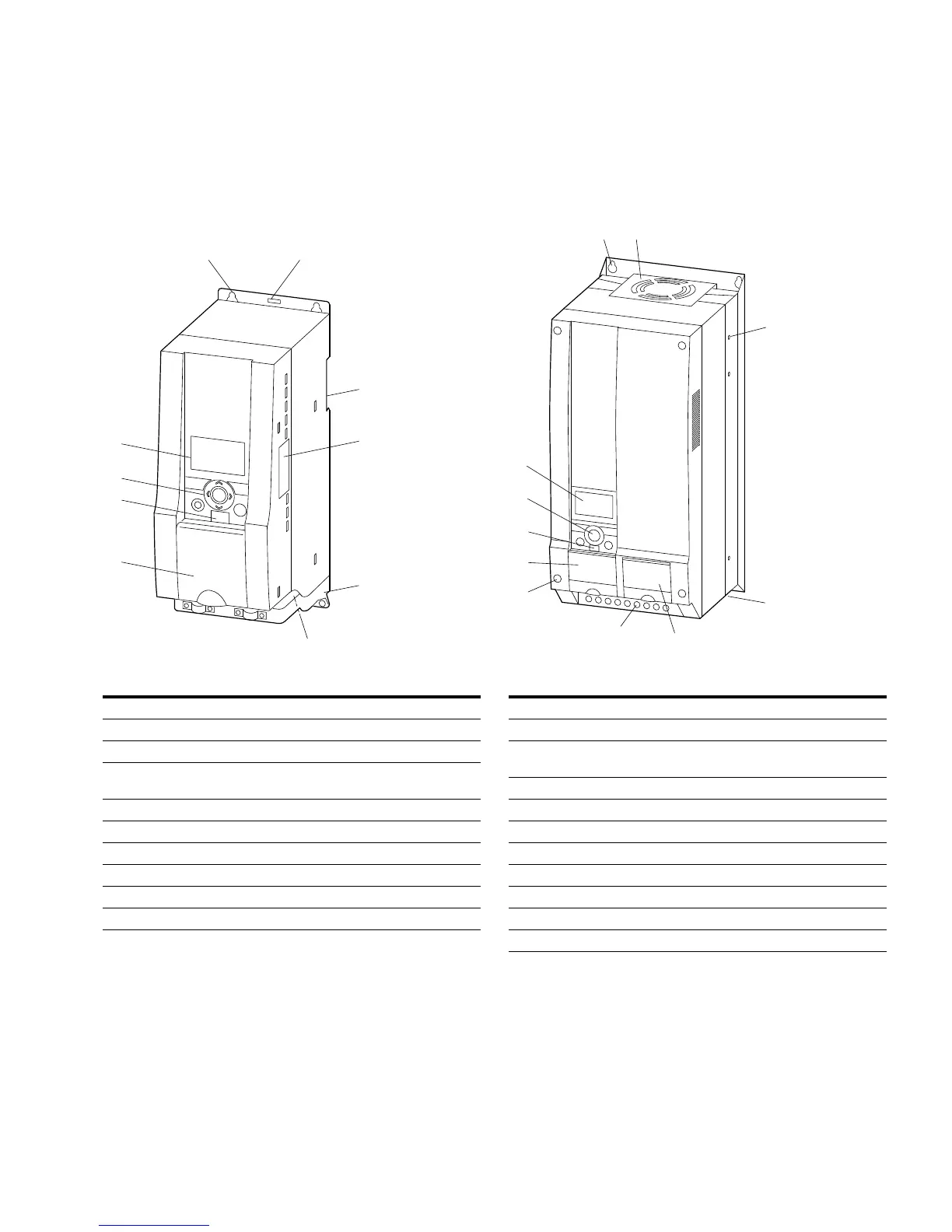

The following drawing shows an M-Max
device.
Overview of the M-Max Device (FS1–FS3) Overview of the M-Max Device (FS4 and FS5)
Features
The M-Max frequency inverter converts the voltage and frequency of an existing AC network
into DC voltage. This DC voltage is used to generate a three-phase AC voltage with adjustable
frequency and assigned amplitude values for the variable speed control of three-phase
asynchronous motors.
Item
Number Description
1 Mounting holes (screw fastening)
2 Release (removal from mounting rail)
3 Recess for mounting on mounting rail (DIN EN 50022-35)
4 Interface for fieldbus connection modules (option,
MMX-NET-XA)
5 EMC installation accessories
6 Power section terminals
7 Cover flap of control signal terminals and microswitches
8 Interface for PC connection module MMX-COM-PC (option)
9 Keypad with 9 control buttons
10 Display unit (LCD)
7
8
9
10
1
2
3
4
6
5
I
OK
BACK
RESET
LOC
RE
M
Item
Number Description
1 Fixing holes (screw fastening)
2 Device fans
3 Fixing holes for flange mounting
(MMX-FLANGE…FS_ option required)
4 EMC mounting accessories
5 Cover flap for connecting the fieldbus interface cards
6 Power section terminals
7 Screws for opening the housing cover
8 Cover flap of control signal terminals and microswitches
9 Interface for PC connection module MMX-COM-PC (option)
10 Keypad with 9 control buttons
11 Display unit (LCD)
1
2
6
5
4
3
11
10
9
8
7
