Error and Warning Messages
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 59
Acknowledge Fault (Reset)
By switching the supply voltage off, the error message (F, FAULT) is acknowledged and reset.
The error code with the respective operating times (d = days, H = hours, M = minutes)
remains stored (FLT).
In the factory setting, you can also acknowledge the error with a 24 Vdc signal on terminal 15
(DI5 = Reset). The error code is not deleted in this case.
The following table shows the required operations for acknowledging an error message via
the operating unit.

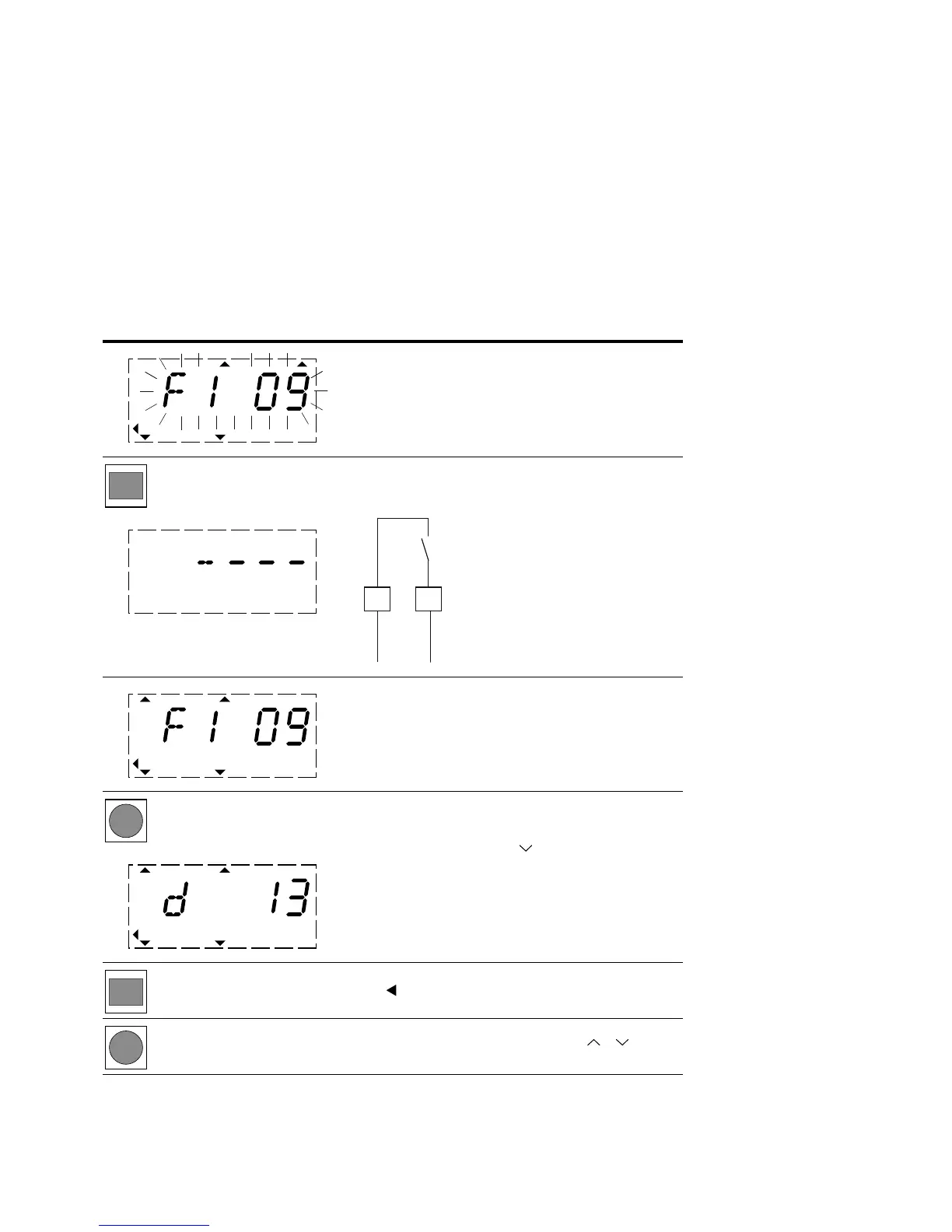

Error Messages via Operating Unit
Operating Unit Element Explanation
F1 = Current fault message (flashing display)
09 = Undervoltage (example)
Actuate the BACK/RESET button or terminal DI5 (reset) to
acknowledge the error message
The acknowledged fault message is displayed with READY and
the failure code
By actuating the OK button, the number of operating days
(for example, d = 13 days) until this fault message is displayed
You can also show the respective hours (H) and minutes (M) of
operation with the arrow button
You exit the fault log (FLT) with the BACK/RESET button
The arrow moves to MON in the menu level
Use the OK button to activate the operating data display now or
select another menu level with the arrow keys or
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
RUN STOP ALARM FAUL
T
READY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
6
DI5
<50 mA
24V Out
15
Reset
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
OK
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
OK
