Parameters
64 M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com
Parameter Menu (PAR)
You have access to all M-Max parameters in the parameter
menu (PAR) (see “List of Parameters” on Page 161).
Parameter Menu (P1.1 = 1, Quick Configuration)
The parameter menu always starts with the parameter P1.1.
P1.1 = 1 means that you are guided through the parameters
by the Quickstart Wizard. Here you must confirm a specified
number of parameters individually (see A).
P1.1 = 0 gives you free access to all parameters (see B).

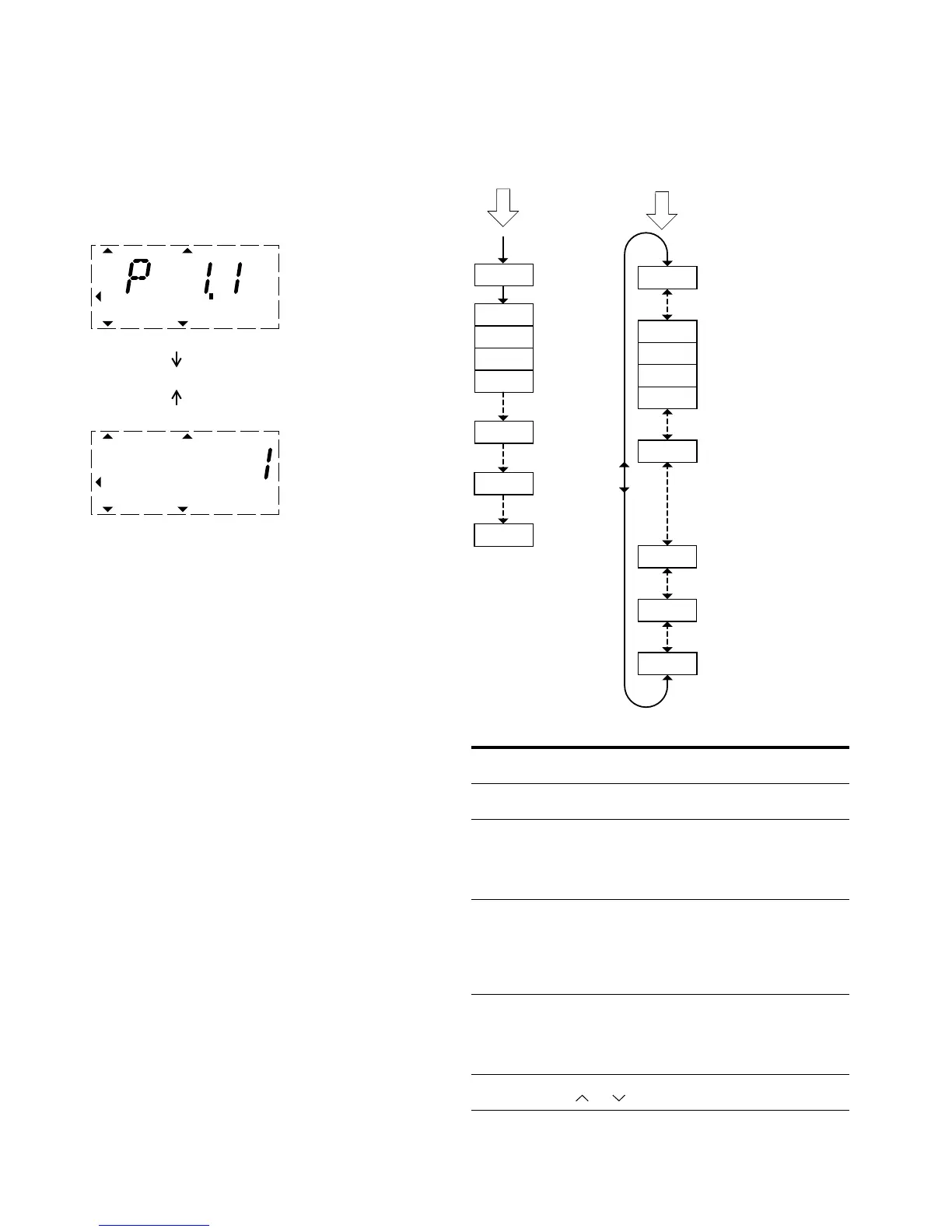

Schematic Representation of Parameter Access
Display in Automatic Alternation
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
Item
Number Description
A Guided access and selected parameters with the Quickstart
Wizard (use OK button to move further)
B Free access to all parameters (move further using the four
arrow buttons)
1 Parameter conceal selection
P1.1 = 1 (Factory setting)
The quick start assistant guides you to the selected parameters
(predefined parameter change)
P1.1 = 0 allows access to all parameters (free parameter selection)
2 Selection of pre-defined parameter values for various applications
(see table on Page 66)
P1.2 = 0: Basic, no preliminary setting
P1.2 = 1: Pump drive
P1.2 = 2: Fan drive
P1.2 = 3: Feed unit (high load)
3 Completion of the quick configuration and automatic switch to
frequency display
Selecting the PAR menu level again allows the free selection of
the required quick configuration parameters and the system
parameter (S)
4 Free selection of all parameters (P1.1 = 0) with the two arrow
buttons and or < and >
P1.1 = 1
P1.2 = 0
P1.2 = 1
P1.2 = 2
P1.2 = 3
P1.3
P11.7
M1.1
A
3
2
1
P1.1 = 0
P1.1 = 0
P1.2 = 1
P1.2 = 2
P1.2 = 3
P1.3
S4.3
P14.16
S1.1
B
1
2
4
