M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 105
Example B
Comparable example A.
P10.9 = 1: Execute program cycle once.
P10.10 = 192 (see Page 102): This decimal program code (192 = 64 +128) assigns the
clockwise rotating field (REV) to fixed frequencies FF6 (P10.7) and FF8 (P10.8).

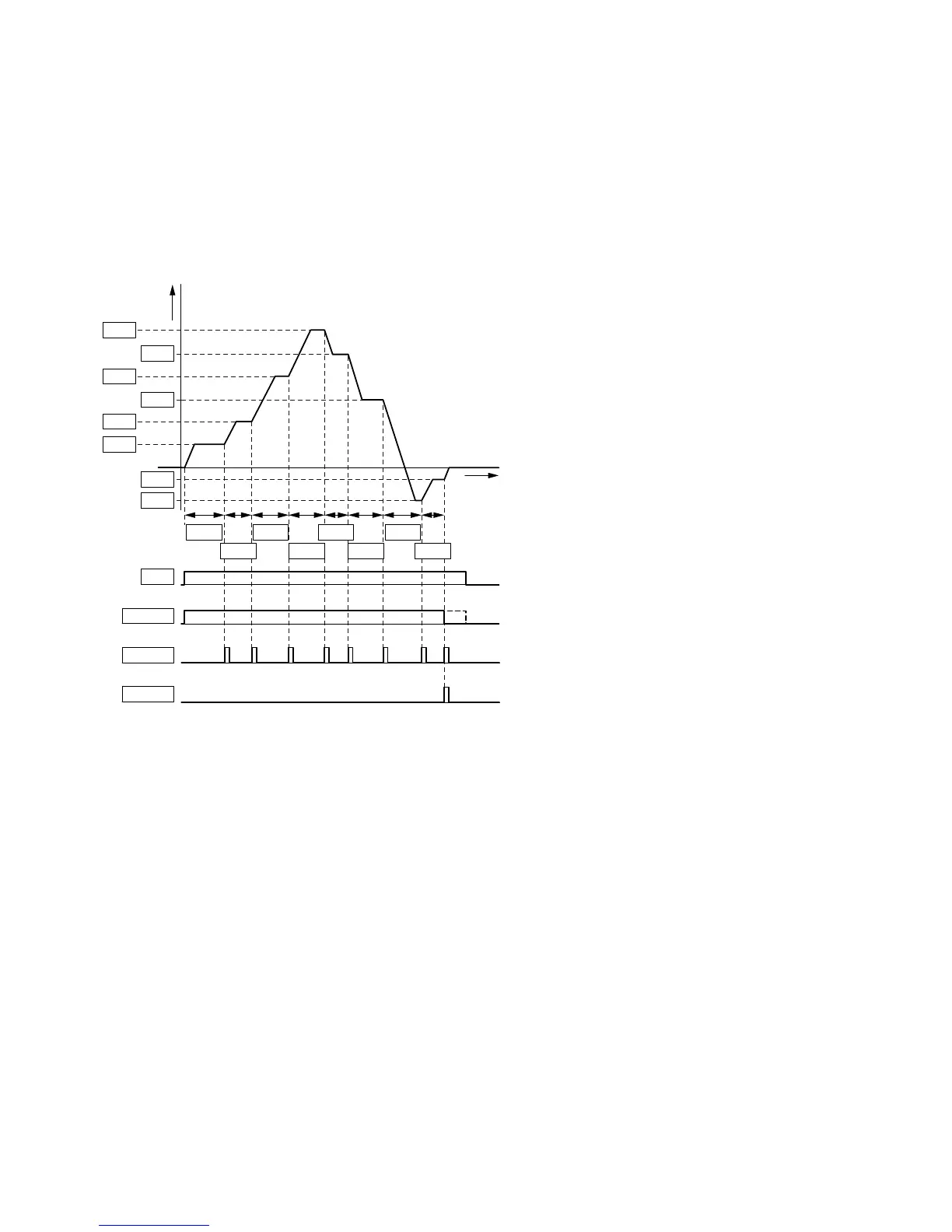

Example B, Program Cycle Executed Once (P10.9 = 1, P10.10 = 192)
P10.6
P10.8
P10.7
P10.5
P10.4
P3.21
P10.17
P10.18
P10.15
P10.16
P10.13
P10.14
P10.11
P10.12
f
(Hz)
FWD
P5.3 = 18
P5.2 = 17
P5.1 = 16
P10.3
P10.2
P10.1
t
REV
1
