Fujitsu PRIMERGY RX2530 M6 User Manual

9.2 Basic information
iRMC
S5
external connectors
TPM
Slot riser card / slot 1(CPU 1)
SATA
0-3
Slot riser card / slot 2 (CPU 1)
Slot riser card / slot 3 (CPU 2)
Rear Serial
SMB 3
Front
Panel
Micro
SATA
4-7
Internal
USB3.0 /
USB 3
JP3
1
JP2 JP1
1
2
SD
LAN
M.2
SSD1
M.2
SSD2
VROC
CPU 1
CPU 1 DIMM 2A
CPU 1 DIMM 1D
CPU 1 DIMM 1C
CPU 1 DIMM 2C
CPU 1 DIMM 1A
CPU 1 DIMM 2D
CPU 1 DIMM 2B
CPU 1 DIMM 1B
CPU 2 DIMM 1R
CPU 2 DIMM 2N
CPU 2 DIMM 2P
CPU 2 DIMM 1P
CPU 2 DIMM 2R
CPU 2 DIMM 1N
CPU 1 DIMM 1H
CPU 1 DIMM 2E
CPU 1 DIMM 2F
CPU 1 DIMM 1F
CPU 1 DIMM 2H
CPU 1 DIMM 1E
CPU 1 DIMM 1G
CPU 1 DIMM 2G
PCH
PWR 5
PWR
ODD
Front VGA
SATA
ODD/8
SATA 9
Clear RTC
HDD LED
ROC
OCP 3.0 Slot 1 (CPU1)
OCP 3.0 Slot 2 (CPU2)
USB 3.0
Management
VGA

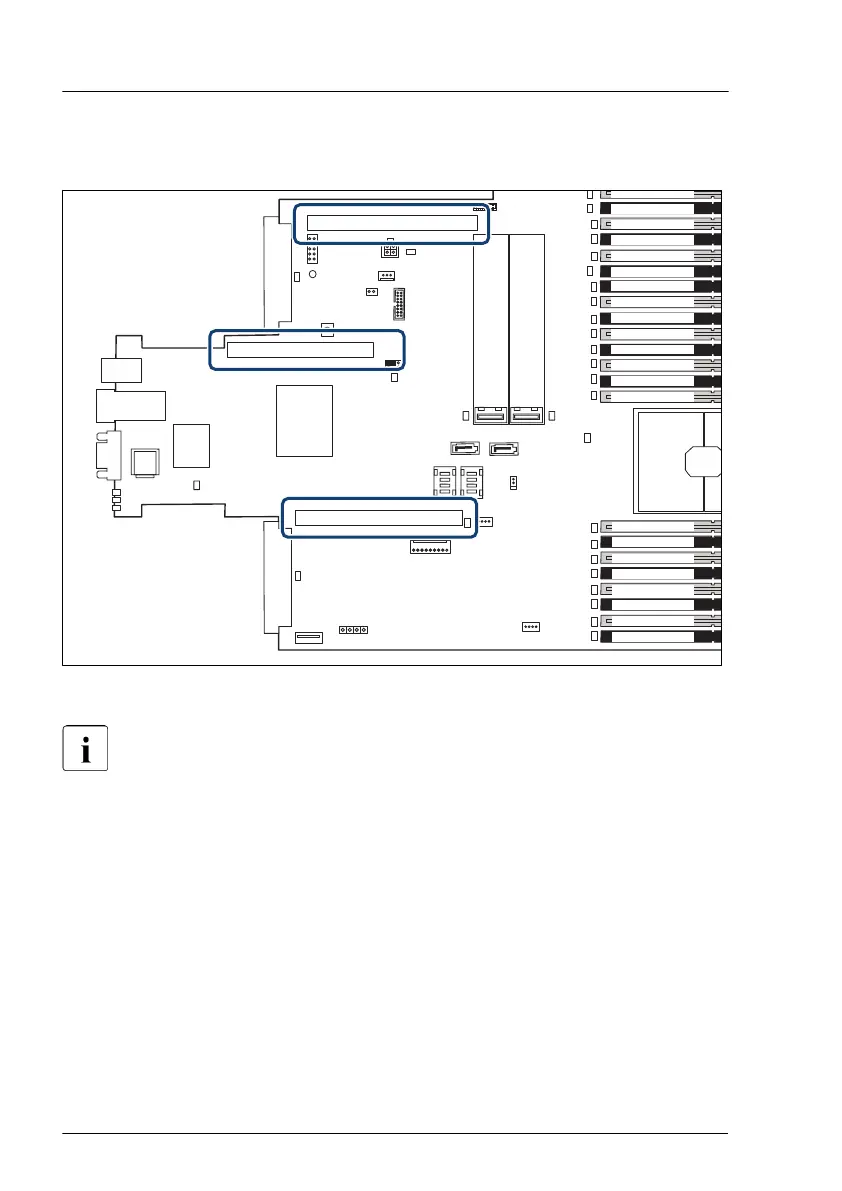

Figure 115: PCIe slots for riser cards - example D3890
For system relevant information, see the hardware configurator of your
server available online at the following address:
https://ts.fujitsu.com/products/standard_servers/index.htm
For Japan:
https://www.fujitsu.com/jp/products/computing/servers/primergy/
Expansion cards and backup units
196 Upgrade and Maintenance Manual RX2530 M6
