Parts of the LC kit

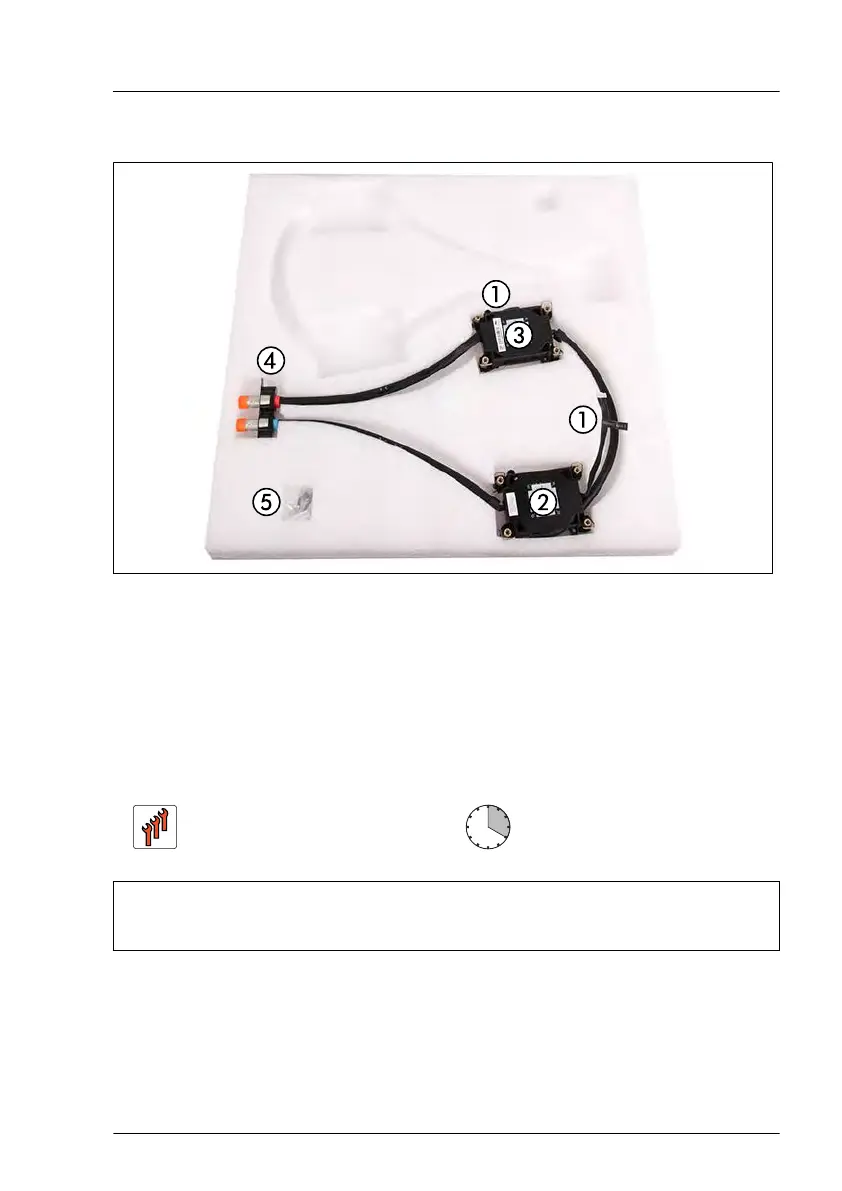

Figure 206: LC kit
1 Control cable for each pump
2 Heat sink with pump for CPU 1
3 Heat sink with pump for CPU 2
4
Quick connector block and tubes with
protective caps (orange)
5 Cable clip and distance holder
12.3 Replacing the CPU or LC kit
Field Replaceable Unit
(FRU)
Hardware: 15 minutes
Software: 5 minutes
Tools: – Phillips PH2 / (+) No. 2 screw driver (for cover 2)
–
Torx 30 screw driver (for LC heat sink)
Liquid cooling (LC)
RX2530 M6 Upgrade and Maintenance Manual 299
