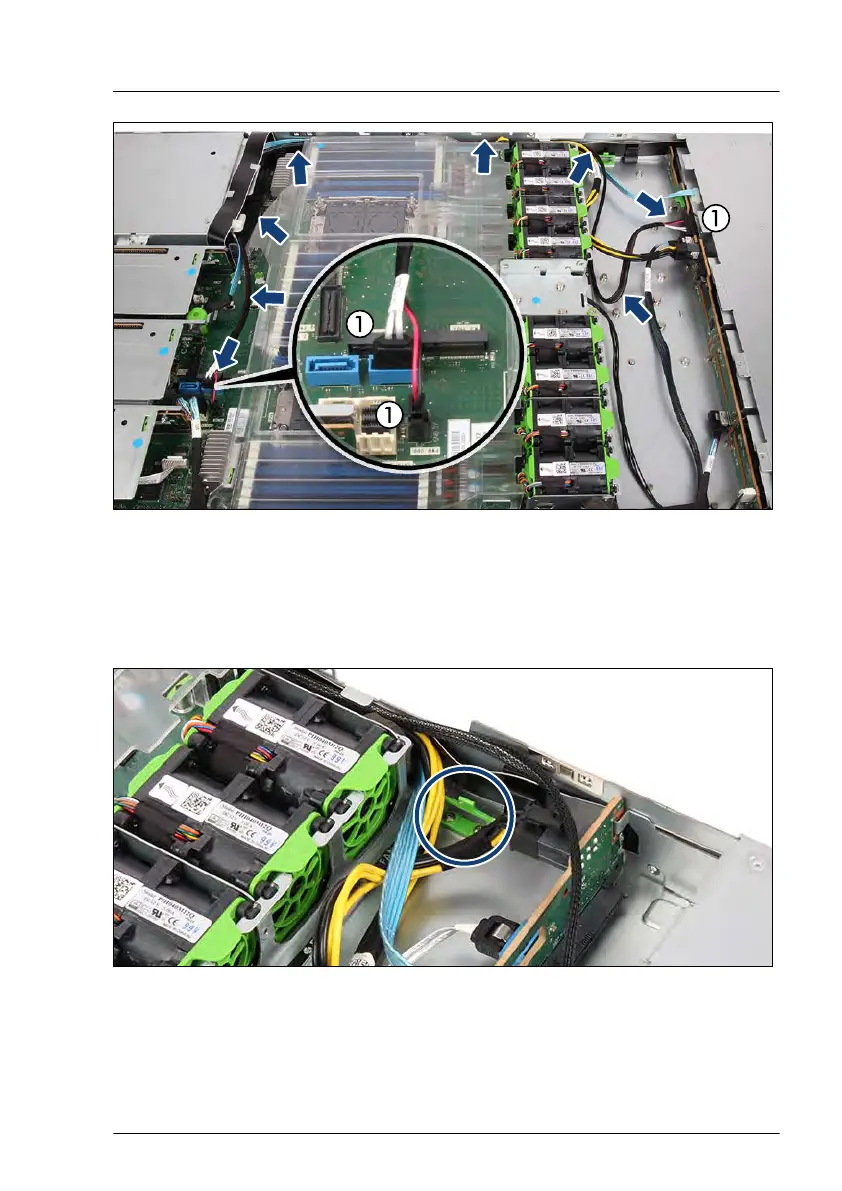

Figure 224: Routing ODD cable - example 2.5-inch HDD configuration
1 ODD cable
13.3.2 Storing the ODD latch
Figure 225: Storing ODD latch
The ODD latch is fastened with two screws to the chassis (see circle).
Accessible drives
RX2530 M6 Upgrade and Maintenance Manual 315
