4.4.2
Disconnecting the power cord (DC PSU)
Example DC PSU -48 V

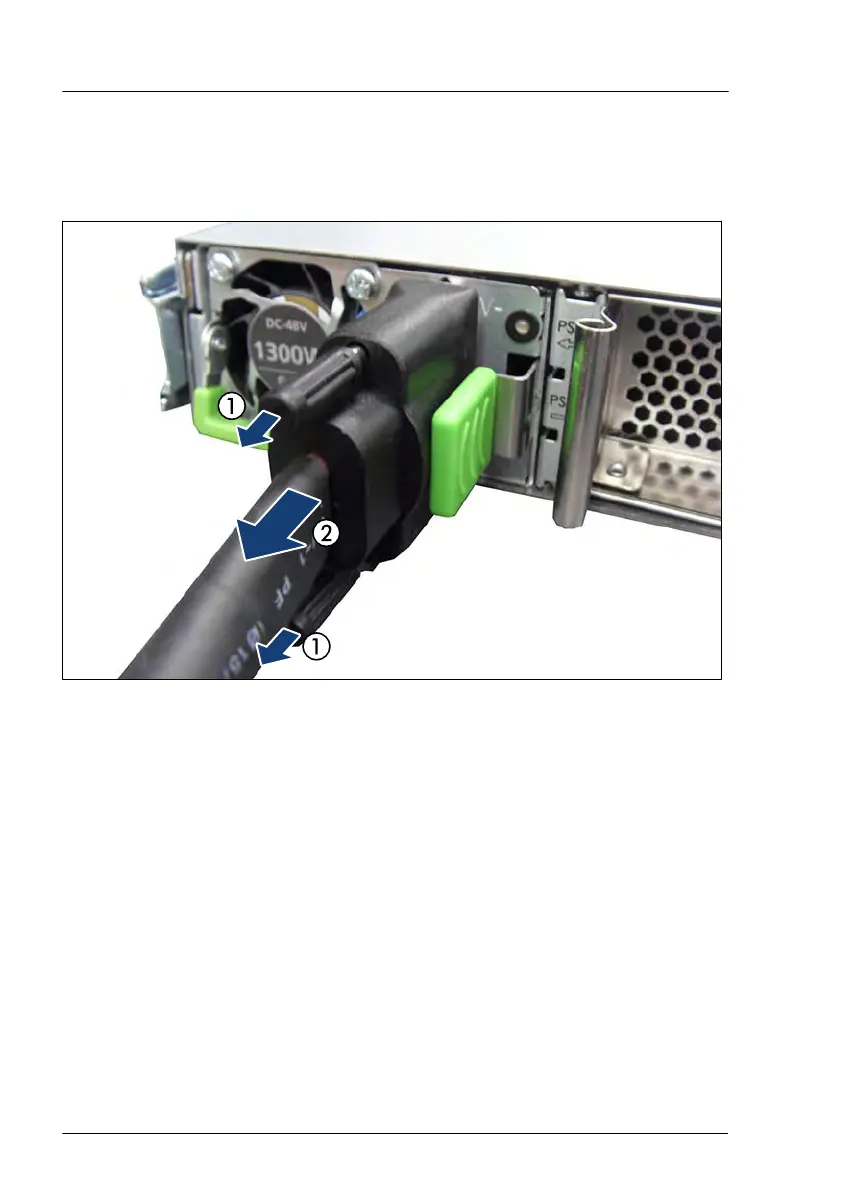

Figure 5: Disconnecting the server from the dc voltage - example DC PSU -48 V
â–¶
Remove the two studs (1).
â–¶
Disconnect the power cord from the PSU (2).
Basic hardware procedures
50
Upgrade and Maintenance Manual
RX2530 M6
49
51
