Error indicator (2)
Status Description
off No HDD/SSD error detected.
orange on An HDD/SSD error has been detected.
Possible causes:
–
The drive is defective and needs replacing.
–
A RAID rebuild process has failed.
–
The HDD/SSD module has not been inserted correctly.
flashing orange
slowly
HDD/SSD RAID rebuild is in progress. Data is being
restored after replacing a drive that has been combined
into a RAID array
.
17.2.3 Server rear
17.2.3.1 Connectors on the server rear

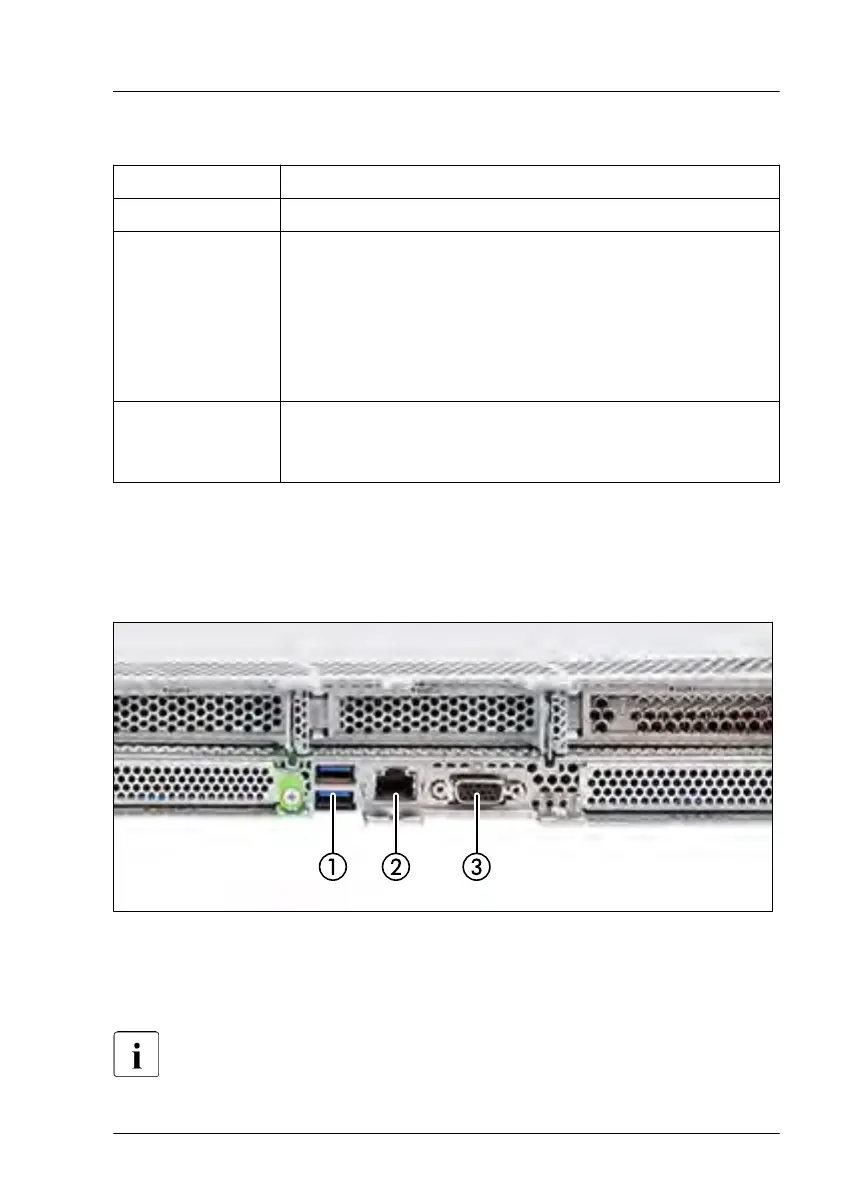

Figure 307: Connectors on the server rear
1 USB 3.0 connectors (2x)
2 Management LAN connector
3 VGA connector
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Appendix A
RX2530 M6 Upgrade and Maintenance Manual 417
