Concluding steps
▶
Install the riser module 2 and riser module 3, see "Installing a riser module"
on page 69.
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
Software configuration
To install the ESXi to the M.2 SSD, see "Software configuration" on
page 368.
16.7 Dual microSD 64GB Enterprise
16.7.1
Position of the Dual microSD 64GB Enterprise
iRMC
S5
external co
nnectors
Slot riser card / slot 1(CPU 1)
SATA
0-3
Rear Serial
Micro
SATA
4-7
Internal
USB3.0 /
USB 3
SD
LAN
VROC
CPU 1
CPU 1 DIMM 2C
CPU 1 DIMM 1H
CPU 1 DIMM 2E
CPU 1 DIMM 2F
CPU 1 DIMM 1F
CPU 1 DIMM 2H
CPU 1 DIMM 1E
CPU 1 DIMM 1G
CPU 1 DIMM 2G
PCH
FAN 3 _SYS
FAN 2 _SYS
FAN 1 _SYS
LC1
SLIMLINE 2
(CPU 1)
SLIMLINE 1
(CPU1)
PWR 1
PWR
ODD
SATA
ODD/8
SATA 9
HDD LED
ROC
OCP 3.0 Slot 1 (CPU1)
Management
VGA

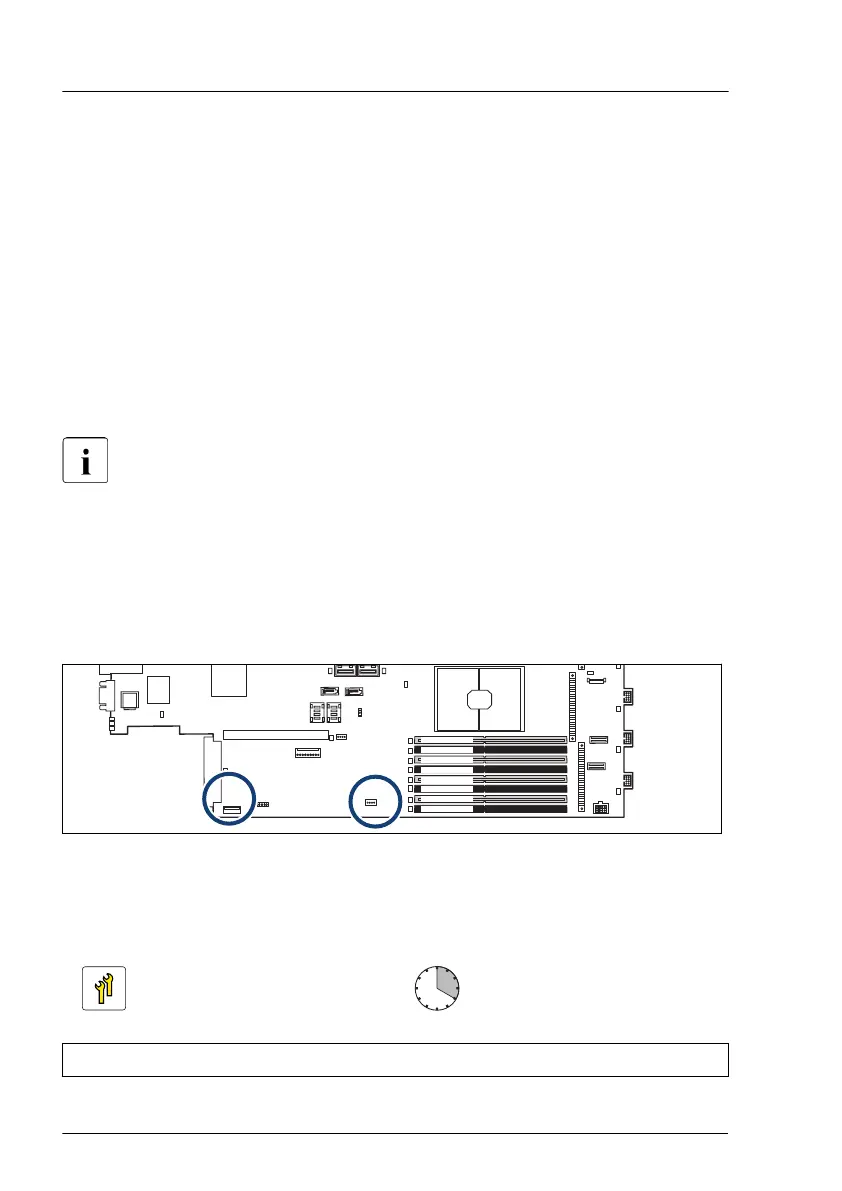

Figure 269: Position on the system board
16.7.2 Installing the Dual microSD 64GB Enterprise
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver (for cover 2)
System board and components
372 Upgrade and Maintenance Manual RX2530 M6
