11.2 Basic information
iRMC
S5
external connectors
INDICATE
CSS
TPM
Slot riser card / slot 1(CPU 1)
Battery
SATA
0-3
Slot riser card / slot 2 (CPU 1)
Slot riser card / slot 3 (CPU 2)
Rear Serial
SMB 3
Front
Panel
Micro
SATA
4-7
Internal
USB3.0 /
USB 3
JP3
1
JP2 JP1
1
2
SD
LAN
M.2
SSD1
M.2
SSD2
PWR 4
VROC
CPU 2 DIMM 2J
CPU 2 DIMM 1M
CPU 2 DIMM 1L
CPU 2 DIMM 2L
CPU 2 DIMM 1J
CPU 2 DIMM 2M
CPU 2 DIMM 2K
CPU 2 DIMM 1K
CPU 2
CPU 1
CPU 1 DIMM 2A
CPU 1 DIMM 1D
CPU 1 DIMM 1C
CPU 1 DIMM 2C
CPU 1 DIMM 1A
CPU 1 DIMM 2D
CPU 1 DIMM 2B
CPU 1 DIMM 1B
CPU 2 DIMM 1R
CPU 2 DIMM 2N
CPU 2 DIMM 2P
CPU 2 DIMM 1P
CPU 2 DIMM 2R
CPU 2 DIMM 1N
CPU 2 DIMM 1Q
CPU 2 DIMM 2Q
CPU 1 DIMM 1H
CPU 1 DIMM 2E
CPU 1 DIMM 2F
CPU 1 DIMM 1F
CPU 1 DIMM 2H
CPU 1 DIMM 1E
CPU 1 DIMM 1G
CPU 1 DIMM 2G
PCH
SLIMLINE
5 (CPU2)
SLIMLINE
6 (CPU2)
PWR 3
SMB 2
PWR 2
FAN 8
_SYS
FAN 7
_SYS
FAN 6
_SYS
FAN 5
_SYS
FAN 4
_SYS
FAN 3
_SYS
FAN 2
_SYS
FAN 1
_SYS
SLIMLINE 4
(CPU 2)
SLIMLINE 3
(CPU 2)
LC2
SMB 1
LC1
SLIMLINE 2
(CPU 1)
SLIMLINE 1
(CPU1)
PWR 1
PWR 5
PWR
ODD
Front VGA
SATA
ODD/8
SATA 9
Clear RTC
HDD LED
ROC
OCP 3.0 Slot 1 (CPU1) OCP 3.0 Slot 2 (CPU2)
USB 3.0
Management
VGA
PSU1
PSU2

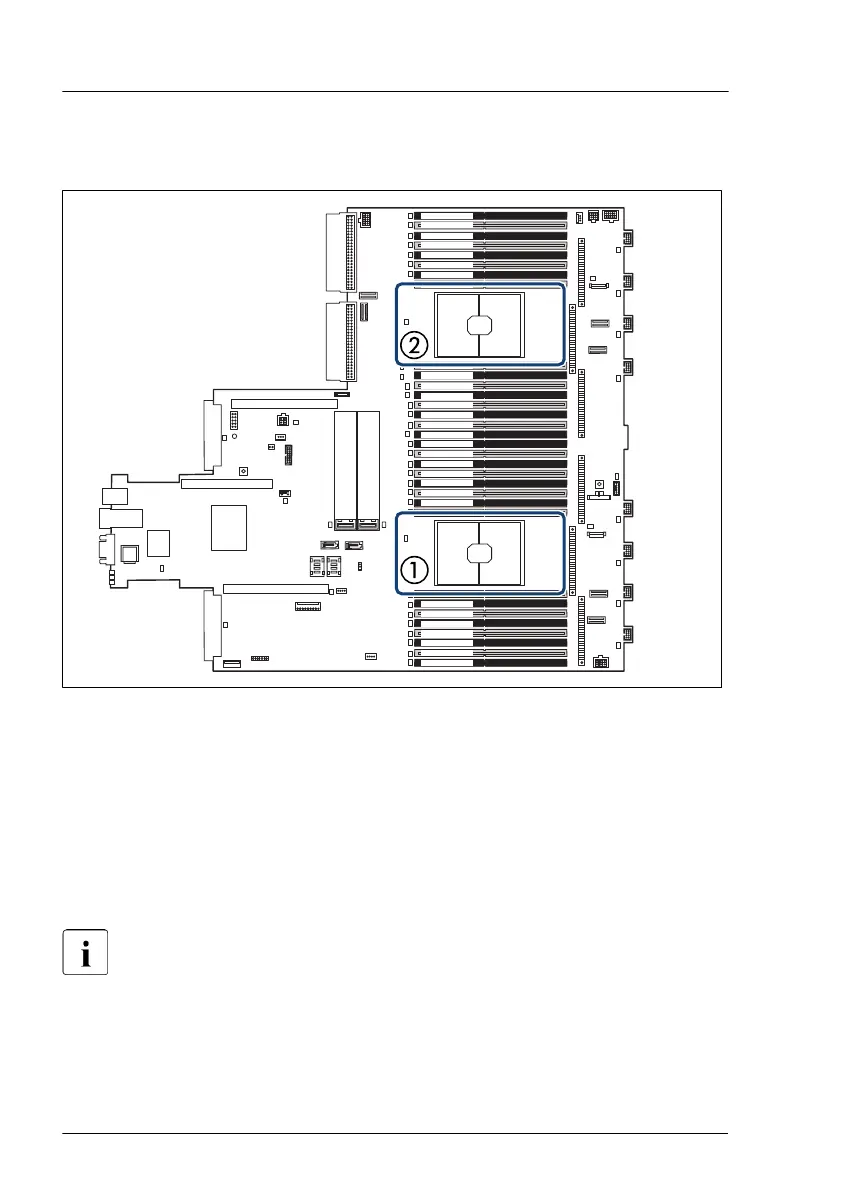

Figure 188: CPU slots
1 CPU 1 2 CPU 2
Supported CPUs
–
up to two Intel® Xeon® CPUs (Platinum, Gold, Silver)
–
two CPU sockets LGA4189
–
both CPUs must be of the same type
For system relevant information, see the hardware configurator of your
server available online at the following address:
https://ts.fujitsu.com/products/standard_servers/index.htm
For Japan:
https://www.fujitsu.com/jp/products/computing/servers/primergy/
Processor (CPU)
280 Upgrade and Maintenance Manual RX2530 M6
