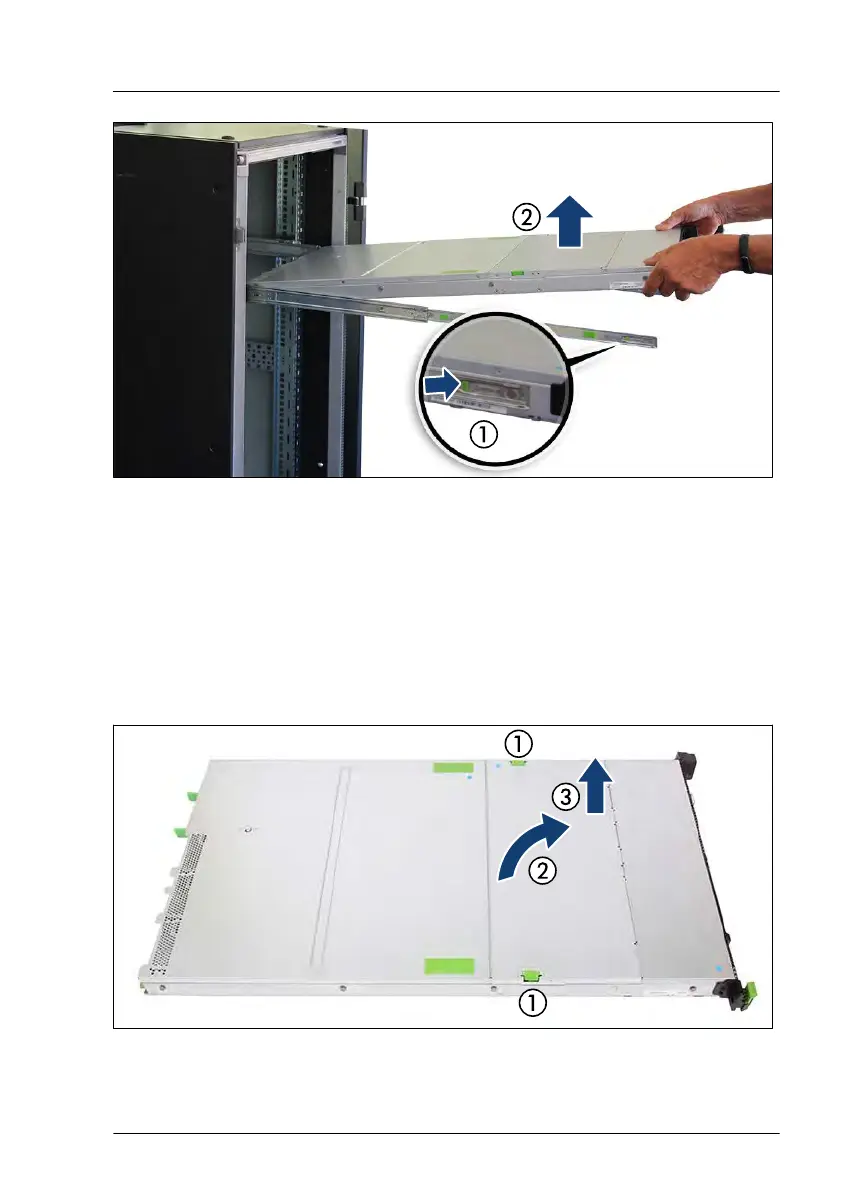

Figure 8: Removing the server from the rack
â–¶
Press on the locking bars on both rack rails (1).
â–¶
Lift the server out of the rack rails (2) and place it on an even surface.
4.5.4
Removing the top covers
Removing the cover 1
Figure 9: Removing the cover 1
Basic hardware procedures
RX2530 M6
Upgrade and Maintenance Manual
55
54
56
Table of Contents
Table of Contents
7
Introduction
19
Concept and Target Groups of this Manual
19
Notational Conventions
19
Before You Start
21
Basic Information
21
Proceeding
21
Advanced Thermal Design (ATD)
21
Installing Optional Components
22
Replacing a Defective Component
22
Classification of Procedures
23
Assignment of Unit Categories
23
Customer Replaceable Units (CRU)
23
Upgrade and Repair Units (URU)
24
Field Replaceable Units (FRU)
25
Average Task Duration
26
Tools You Need at Hand
27
Documentation Overview
28
Downloading Manuals
28
List of Documents
28
Important Information
31
Introduction
31
Safety Instructions
31
Basic Safety Instructions
31
Before Starting up
32
Installation and Operation
32
Batteries
35
Working with Optical Disk Drives (Odds) and Media
35
Laser Information
37
Modules with Electrostatic-Sensitive Devices (ESD Modules)
37
Transporting the Server
39
Installing the Server in the Rack
40
Other Important Information
40
Energy Star
41
CE Conformity
41
FCC Class a Compliance Statement
42
Environmental Protection
43
Basic Hardware Procedures
45
Using Diagnostic Information
45
Proceeding
45
Locating the Defective Server
45
Determining the Error Class
46
Locating the Defective Component
46
Removing the Front Cover with Lock
48
Shutting down the Server
48
Disconnecting the Power Cord
49
Disconnecting the Power Cord (AC PSU)
49
Disconnecting the Power Cord (DC PSU)
50
Getting Access to the Component
52
Safety Notes
52
Extending the Server out of the Rack
52
Removing the Server from the Rack
53
Removing the Top Covers
55
Reassembling
57
Safety Notes
57
Installing the Top Covers
57
Installing the Server in the Rack
58
Sliding the Server into the Rack
61
Connecting the Power Cord
62
Connecting the Power Cord (AC PSU)
62
Connecting the Power Cord (DC PSU)
63
Switching on the Server
66
Installing the Front Cover with Lock
66
Handling Riser Modules
68
Positions of Riser Modules
68
Removing a Riser Module
69
Installing a Riser Module
69
Handling Chassis Foams
70
Positions of Chassis Foams
70
Removing a Chassis Foam
71
Installing a Chassis Foam
72
Handling the Air Duct
73
Removing the Air Duct
73
Installing the Air Duct
74
Basic Software Procedures
75
Validation
75
Starting the Maintenance Task
75
Suspending Bitlocker Functionality
75
Disabling the Boot Watchdog
76
Removing Backup and Optical Disk Media
78
Verifying and Configuring the Backup Software Solution
78
Switching on the ID Indicator
78
Completing the Maintenance Task
79
Updating or Recovering the BIOS and Irmc S5
79
Verifying System Information Backup or Restore
82
Updating Expansion Card Firmware
83
Reconfiguring the Backup Software Solution
84
Resetting the Boot Retry Counter
85
Enabling the Boot Watchdog
87
Enabling Replaced Components in the BIOS
88
Verifying the System Time Settings
88
Viewing and Clearing the System Event Log (SEL)
89
Updating the NIC Configuration File in a Linux and Vmware Environment
92
Resuming Bitlocker Functionality
93
Performing a RAID Array Rebuild
94
Looking for MAC/WWN/GUID and SAS Addresses
95
Basic Information
95
Looking for the MAC Address of a LAN Controller
95
Looking for the WWN Address of a Fibre Channel Controller
96
Looking for the GUID Address of an Infiniband or Omni-Path Controller
97
Looking for SAS Addresses of SAS Controllers for External Devices
97
Using the Chassis ID Prom Tool
98
Configuring LAN Teaming
100
Switching off the ID Indicator
102
Performing a Fan Test
103
Power Supply Unit (PSU)
105
Safety Notes
105
Basic Information
105
Installing a Hot-Plug PSU
108
Removing a Hot-Plug PSU
111
Replacing a Hot-Plug PSU
114
Hard Disk Drive (HDD) / Solid State Disk (SSD)
117
Safety Notes
117
Basic Information
118
Handling Hdds or Ssds Without Installation Frame
120
Inch HDD and 3.5-Inch Installation Frame
120
Inch HDD/SSD and 2.5-Inch Installation Frame
122
Inch HDD/SSD and 3.5-Inch Installation Frame
123
EDSFF SSD and EDSFF Installation Frame
125
Inch HDD Configurations
127
Overview of Configurations
127
Configuration with up to Four HDD Modules
127
Installing 3.5-Inch HDD Modules
128
Removing 3.5-Inch HDD Modules
130
Replacing a 3.5-Inch HDD Module
132
Replacing the 4X 3.5-Inch HDD Backplane
134
Inch HDD/SSD Configurations
138
Overview of Configurations
138
Configuration with up to Eight HDD/SSD Modules
138
Configuration with up to 10 HDD / SSD / Pcie SSD Modules
139
Configuration with Rear HDD/SSD Cage
139
Installing 2.5-Inch HDD/SSD Modules
140
Removing 2.5-Inch HDD/SSD Modules
142
Replacing a 2.5-Inch HDD/SSD Module
144
Installing 2.5-Inch Pcie SSD Modules
146
Removing 2.5-Inch Pcie SSD Modules
149
Replacing a 2.5-Inch Pcie SSD Module
151
Replacing the 8X 2.5-Inch HDD Backplane
152
Replacing the 10X 2.5-Inch HDD Backplane
158
Replacing the SAS Expander Board
162
Upgrading with Rear HDD/SSD Cage
166
Reassembling" on Page
166
Connecting the Power Cord" on Page
166
Switching on the Server" on Page
166
If Applicable, "Installing the Front Cover with Lock" on Page
166
Tools: Phillips PH2 / (+) No. 2 Screw Driver
166
Replacing the Rear HDD/SSD Backplane
169
Locating the Defective Server" on Page
169
If Applicable, "Removing the Front Cover with Lock" on Page
169
Shutting down the Server" on Page
169
EDSFF SSD Configurations
174
Overview of Configurations
174
Configuration with up to 32 EDSFF SSD Modules
174
Installing EDSFF SSD Modules
176
Removing EDSFF SSD Modules
179
Replacing an EDSFF SSD Module
181
Replacing a 16X EDSFF SSD Backplane
183
Fans
189
Safety Notes
189
Basic Information
189
Replacing a Fan Module
191
Expansion Cards and Backup Units
195
Safety Notes
195
Basic Information
196
Handling Slot Brackets
198
Installing Slot Brackets
198
Removing Slot Brackets
201
Handling SFP+ Transceiver Modules
201
Installing SFP+ Transceiver Modules
201
Removing SFP+ Transceiver Modules
207
OCP (Open Compute Project) Modules
211
Positions of the OCP Modules
211
Installing an OCP Module
211
Removing an OCP Module
214
Replacing the OCP Module
216
Expansion Cards and Riser Cards
217
Variants of Riser Modules
217
Installing an Expansion Card
219
Removing an Expansion Card
228
Replacing an Expansion Card
230
Replacing a Riser Card
232
Installing the Internal RAID Controller
234
Removing the Internal RAID Controller
242
Replacing the Internal RAID Controller
244
Replacing the Riser Card of the Internal RAID Riser Module
246
Upgrading to the Full Height Riser Module
247
Flash Backup Unit (FBU)
251
Positions of the Fbus
251
Installing an FBU
252
Removing an FBU
258
Replacing an FBU
260
Main Memory
263
Safety Notes
263
Basic Information
264
Slots and Features
264
General Memory Population Rules
265
DDR4 Only - Memory Population Rules
266
DDR4 and Optane Pmem - Memory Population Rules
268
Installing Memory Modules
270
Removing Memory Modules
273
Replacing Memory Modules
274
Handling Memory Dummy Modules
276
Processor (CPU)
279
Safety Notes
279
Basic Information
280
Upgrading to 2 CPU Configuration
282
Replacing a CPU or Heat Sink
290
Liquid Cooling (LC)
297
Safety Notes
297
Basic Information
297
Replacing the CPU or LC Kit
299
Accessible Drives
313
Basic Information
313
Safety Notes
313
Optical Disk Drive (ODD)
313
Positions of the ODD
313
Storing the ODD Latch
315
Installing the ODD
316
Removing the ODD
319
Replacing the ODD
322
Front Panel
325
Safety Notes
325
Basic Information
325
Common Operation Panel (COP)
326
Replacing the COP
326
Front VGA
330
Installing the Front VGA
330
Removing the Front VGA
332
Replacing the Front VGA
334
Serial Interface
337
Safety Notes
337
Installing the Serial Interface
337
Removing the Serial Interface
340
Replacing the Serial Interface
343
System Board and Components
345
Safety Notes
345
Basic Information
345
CMOS Battery
346
Replacing the CMOS Battery
346
Trusted Platform Module (TPM)
349
TPM Kit
349
Position of the TPM
349
Installing the TPM
350
Removing the TPM
353
Replacing the TPM
358
Irmc Microsd Card
360
Note for Embedded Lifecycle Management (Elcm)
360
Installing the Irmc Microsd Card
360
Removing the Irmc Microsd Card
362
Replacing the Irmc Microsd Card
363
M.2 Ssd
364
Slots and Bolts for M.2 Ssds
364
Installing an M.2 SSD
365
Removing an M.2 SSD
369
Replacing an M.2 SSD
371
Dual Microsd 64GB Enterprise
372
Position of the Dual Microsd 64GB Enterprise
372
Installing the Dual Microsd 64GB Enterprise
372
Removing the Dual Microsd 64GB Enterprise
376
Replacing the Dual Microsd 64GB Enterprise
378
Replacing the Microsd Card
380
VROC Module
382
Installing the VROC Module
382
Removing the VROC Module
383
Replacing the VROC Module
384
System Board
385
Replacing the System Board
385
Mechanical Overview
399
Server Front
399
Inch HDD Configuration
399
Inch HDD/SSD Configuration
399
Server Rear
400
Servers with Air Cooling
400
Servers with Liquid Cooling
402
Server Interior
403
Servers with Air Cooling
403
Servers with Liquid Cooling (LC)
405
Connectors and Indicators
406
Connectors and Indicators on the System Board
406
System Board D3890
406
Server Front
411
Connectors on the Server Front
411
Indicators on the COP
412
Indicator on the ODD
415
Indicators on Hot-Plug HDD / SSD / Pcie SSD / EDSFF SSD
416
Modules
416
Server Rear
417
Connectors on the Server Rear
417
ID, CSS and Global Error Indicators
418
LAN Indicators
421
Indicator on Hot-Plug PSU
422
Acoustic Indicators
423
Onboard Settings
424
Minimum Startup Configuration
425
Supplied Documents
427
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu PRIMERGY RX2530 M6 and is the answer not in the manual?
Ask a question
Fujitsu PRIMERGY RX2530 M6 Specifications
General
Brand
Fujitsu
Model
PRIMERGY RX2530 M6
Category
Server
Language
English
Related product manuals
Fujitsu PRIMERGY RX2530 M1
86 pages
Fujitsu PRIMERGY RX2530 M5
106 pages
Fujitsu PRIMERGY RX2530 M4
88 pages
Fujitsu PRIMERGY RX2530 M2
372 pages
Fujitsu PRIMERGY RX2540 M6
121 pages
Fujitsu PRIMERGY RX4770 M6
468 pages
Fujitsu PRIMERGY RX2540 M5
112 pages
Fujitsu PRIMERGY RX2540 M1
438 pages
Fujitsu PRIMERGY RX2560 M2
568 pages
Fujitsu PRIMERGY RX2540 M2
602 pages
Fujitsu PRIMERGY RX2540 M7
646 pages
Fujitsu PRIMERGY RX2540 M4
86 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
