Handling chassis foams
4.1
1.1
Positions of chassis foams
The system can be equipped with several chassis foams depending of
the configuration. The chassis foams may be removed for cabling
purposes.

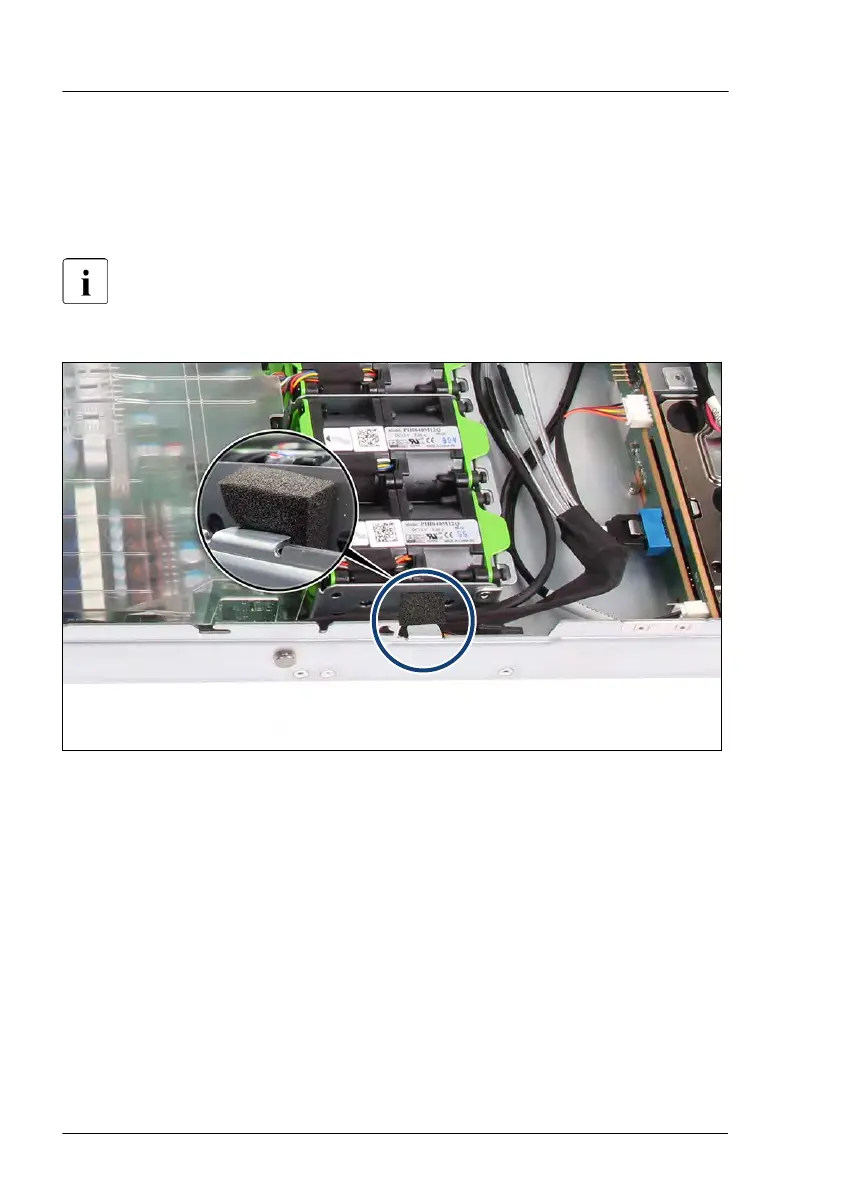

Figure 23: Example for position of a chassis foam
Basic hardware procedures
70
Upgrade and Maintenance Manual
RX2530 M6
69
71
