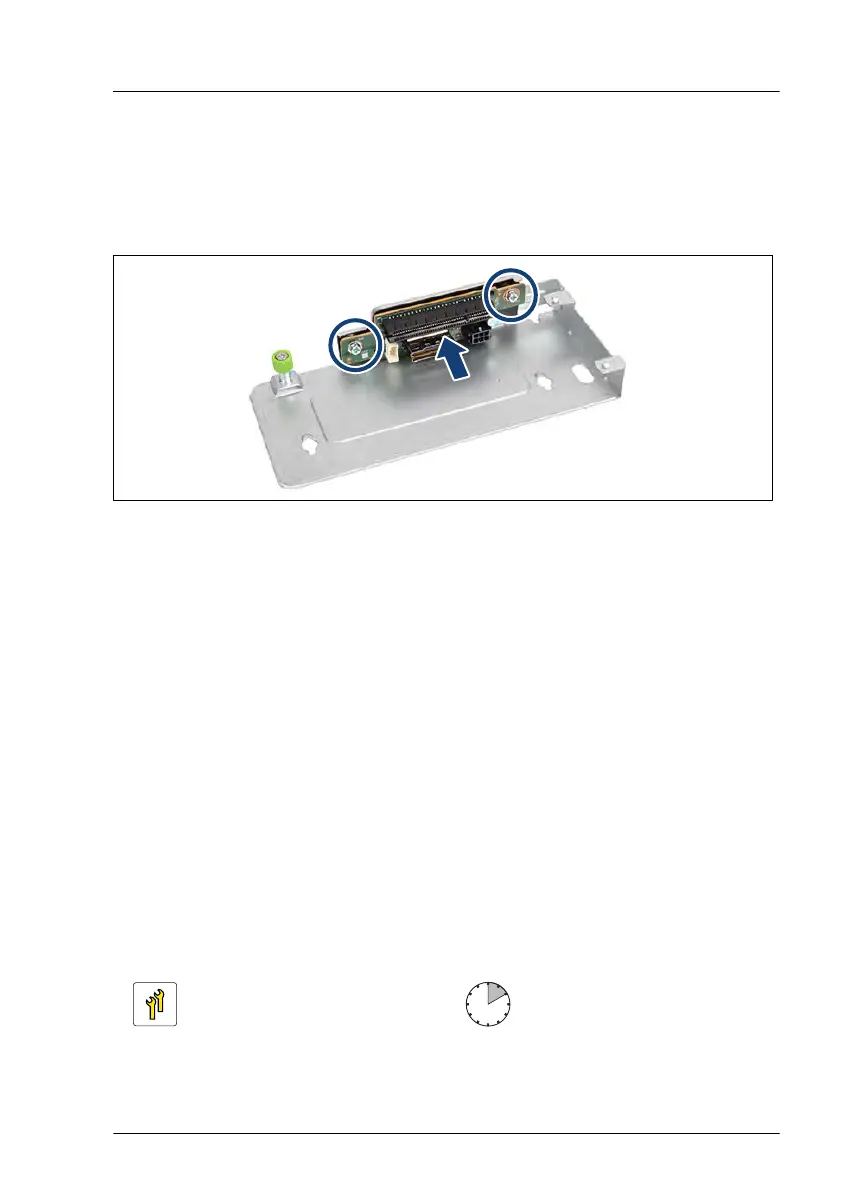

Remove the two screws (see circles).
▶
Remove the riser card.
Installing the new riser card
Figure 166: Installing the riser card - example riser module 1
▶
Insert the riser card.
▶
Fasten the riser card with two screws (see circles).
▶
Install the internal RAID controller
, see "Installing the internal RAID
controller" on page 234
.
Concluding steps
▶
"Reassembling" on page 57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
9.6.10 Upgrading to the full height riser module
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 247
