9.6.9 Replacing the riser card of the internal RAID riser
module
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Tools:
– Phillips PH1 / (+) No. 1 screw driver (internal RAID controller)
–
Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Locating the defective server" on page
45
.
▶
If applicable, "Removing the front cover with lock" on page
48.
▶
"Shutting down the server" on page 48.
▶
"Disconnecting the power cord" on page 49.
▶
"Getting access to the component" on page 52.
▶
"Locating the defective component" on page 46.
Removing the defective riser card
▶
Remove the internal RAID controller, see "Removing the internal RAID
controller" on page 242.

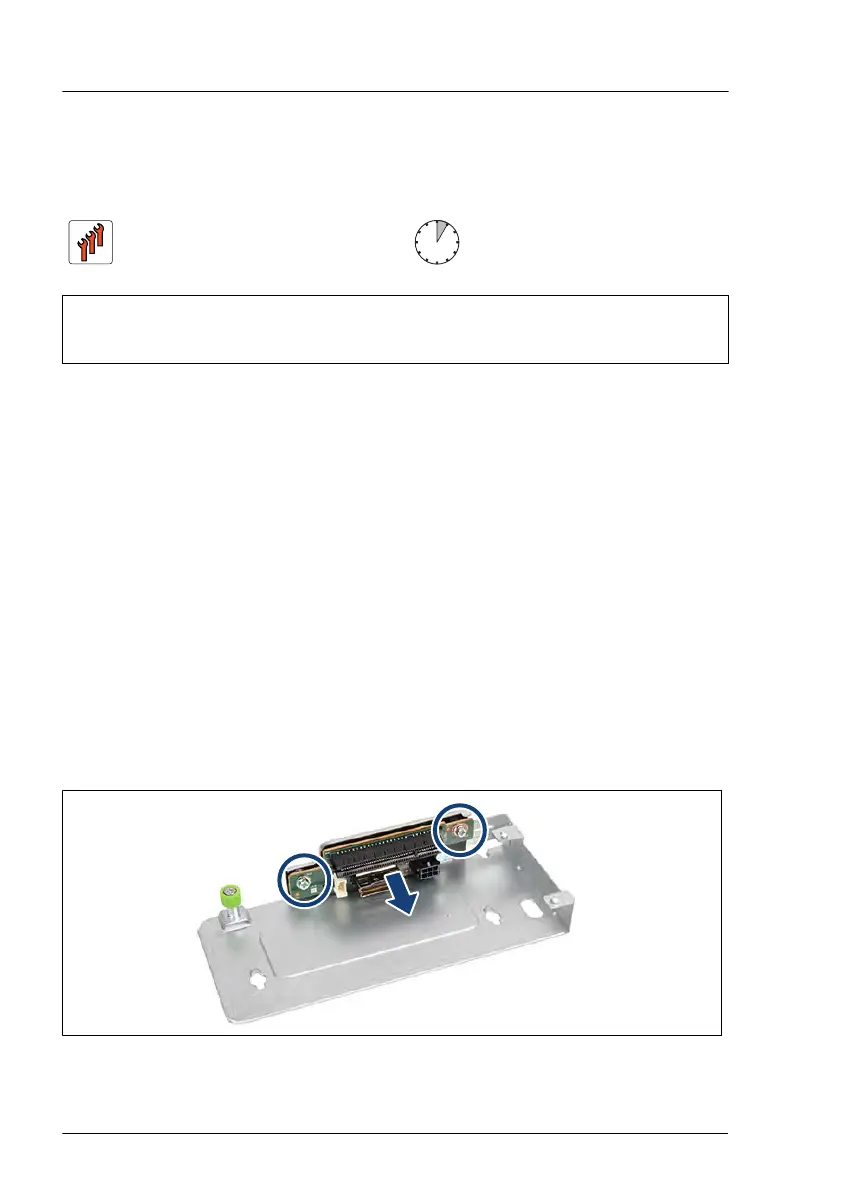

Figure 165: Removing the riser card
Expansion cards and backup units
246 Upgrade and Maintenance Manual RX2530 M6
