17.1.3.2 Servers with liquid cooling (LC)

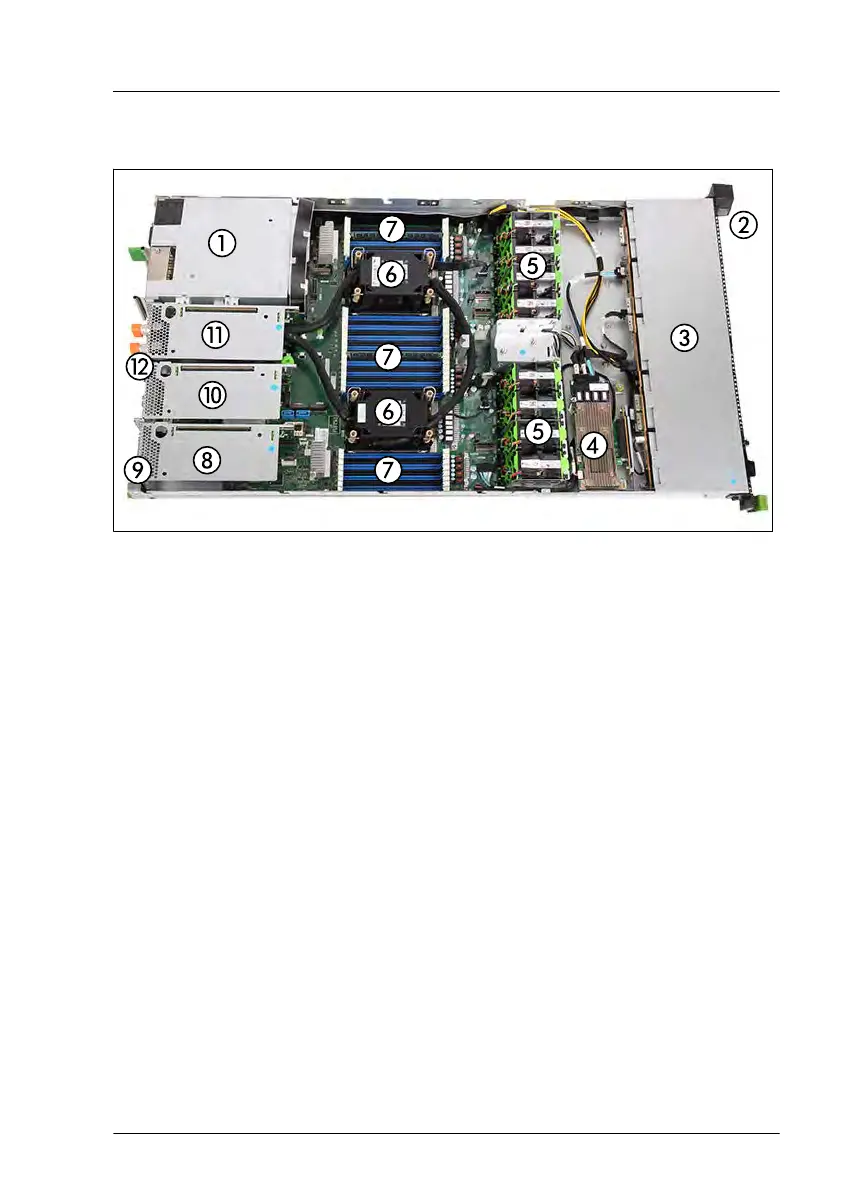

Figure 299: Interior (example: 10x 2.5-inch HDDs/SSDs)
1 Up to 2 PSUs / dummy cover
2 COP
3 Up to 10x 2.5-inch HDDs/SSDs /
dummy modules
4
Internal RAID riser module
5 Fan modules
6 CPUs with LC
7 Main memory
8 Riser module 1
9 OCP module 1
10 Riser module 2
11 Riser module 3 with quick connector
block
12 OCP module 2
The OCP modules (9, 12) are options.
Appendix A
RX2530 M6 Upgrade and Maintenance Manual 405
