Fujitsu PRIMERGY RX2530 M6 User Manual

17.1.3 Server interior
17.1.3.1 Servers with air cooling

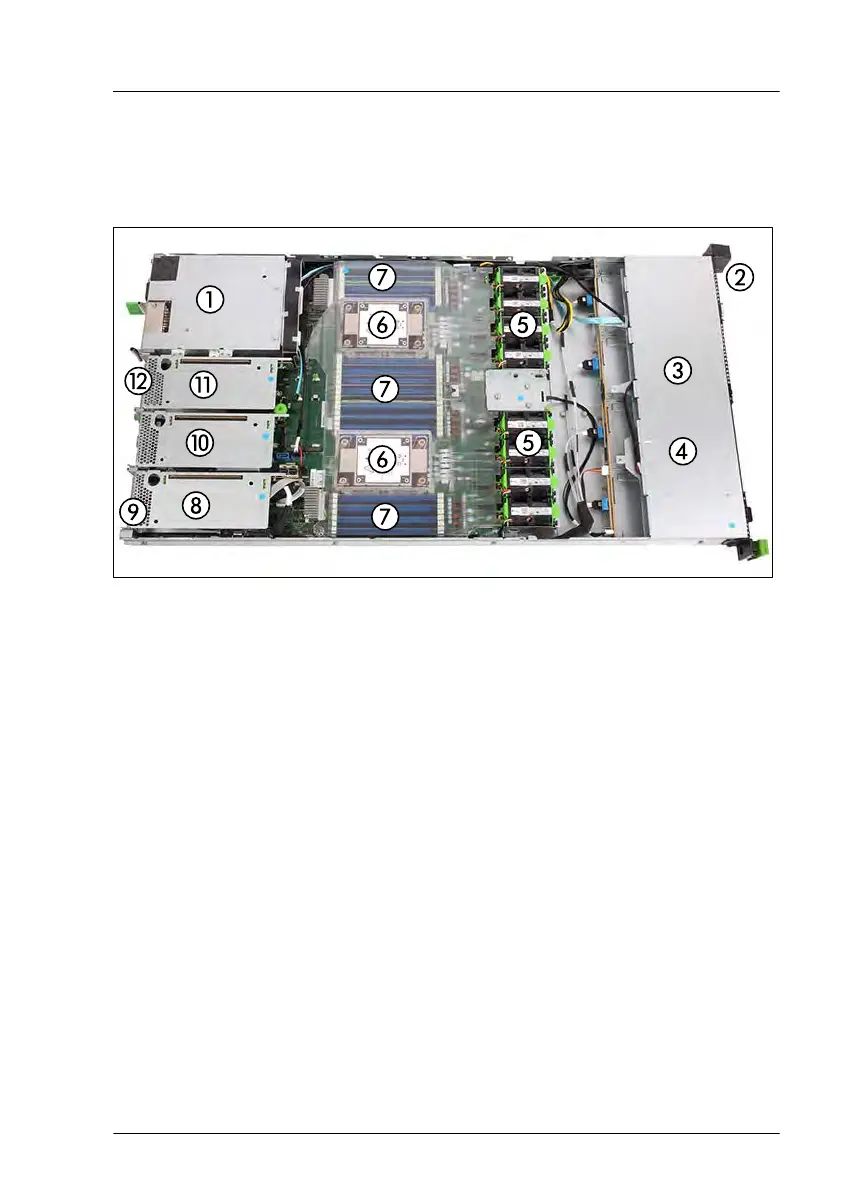

Figure 297: Interior (example 4x 3.5-inch HDDs)
1 Up to 2 PSUs / dummy cover
2
COP / front VGA / dummy cover
3
Up to 4x 3.5-inch HDDs / dummy
modules
4
ODD / dummy cover
5 Fan modules
6 CPUs
7 Main memory
8 Riser module 1
9 OCP module 1
10 Riser module 2
11 Riser module 3
12 OCP module 2
The front VGA (2), the ODD (4) and the OCP modules (9, 12) are options.
